| General configuration for standalone device and Ingressus |
| |
| Permanent Door Open/Close Time Zone: Select to follow time range settings to allow free access (without verification
at the device) to the zone. Only to be used for zones with open access to public during specific
time range. Requires setup of Permanent Door Open Close Time Zone. Leave this blank to ignore this
feature. |
| |
| Lock Open Duration: Change to set duration for door lock and unlock during successful verification. |
| |
| Door Sensor Type: Select the type of door sensor installed at the device. The most common type is NC
(normally close). Door sensor is a must-have component if you want to monitor door activities. It
responds to standalone device or Ingress all the time to report door status. |
| |

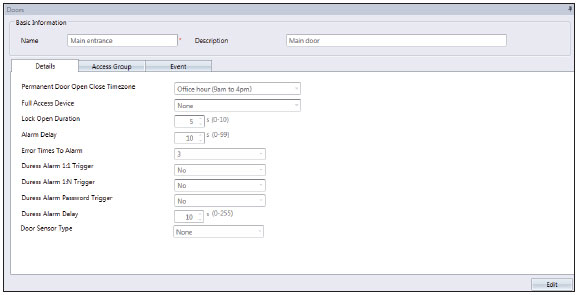

| Configurations to apply to door with standalone device only |
| |
| Full Access Device: Important setup if you apply Time Zone settings to the door. Select exit device to become
full access device. Full access device ignores time zone settings. Users can verify at the device
to leave the zone anytime. |
| |
| Alarm Delay: Change to set the duration before triggering alarm during emergency. Set to 0 for the
device to trigger alarm immediately during emergency. |
| |
| Error Times To Alarm: To set the maximum times of failed verification before device triggers alarm. This is
to alert the unauthorized person to not tamper with the device. |
| Duress Alarm 1:1 Trigger |
| Duress Alarm 1:N Trigger |
| Duress Alarm Password Trigger |
| |
| During emergency users can verify at the device to trigger duress alarm to alert others. For example,
robbers force user to verify to unlock the door to access into the zone. User can verify at device to
trigger alarm to alert the users inside the zone. |
| |
| Activate one of the above options as the duress alarm trigger method. If you are using fingerprint
verification to gain access during normal days, activate Duress Alarm Password Trigger. The device
will then trigger the alarm when you insert your password. Refer to the device’s user guide for details
on how to enroll fingerprint or password to trigger duress alarm. |
| |
| Duress Alarm Delay: Change to set duration before alarm is triggered during duress scenario. Set 0 and
device will trigger alarm immediately during duress scenario. |
| |
| Door Sensor Type: Select the type of door sensor installed at the device. The most general type is NC.
Door sensor is an important component to monitor door activities. In case of door force open or door
remain open, the door sensor reports it to the device. You can see the status of door under the Monitoring
page in Ingress. Select None if you did not install door sensor, but you can no longer monitor
the activities from this door. |
| |
| |
| Configurations to apply to door with Ingress only |
| |
| Permanent Door Open/Close Holiday Time Zone: Select to follow time range settings to allow free access (without
verification at the device) to the zone during holiday. Requires setup of Holiday list and Permanent
Door Open Close Holiday Time Zone. Leave this blank to ignore this feature. |
| |
| Punch Interval: Set the time duration between 1st and 2nd verification from the same user, for example
10s. Ingressus will not grant access to the user if he/she verifies twice within 10s from any slave
devices. |
| |
| Verify Mode: To select combination of verification to gain access. |
| |
| Duress Password: Same as Duress Alarm Password Trigger. |
| |
| Emergency Password: During emergency, users can enter an emergency password to unlock any door
(controlled by Ingressus) at anytime. Time zone or access control settings will not affect it. This is
normally done by the administrator. |
| |
| Door sensor delay: Set the time duration before Ingressus triggers the alarm if door remains open. |
| |
| Close and Reverse State: Activate this if you want EM lock or dropbolt to lock immediately once door
closes. You must install door sensor together with the door lock. When the door sensor touches each
other, Ingressus receives the signal and activates the door lock system immediately. This overrides
the Door Open Duration settings and can avoid unauthorized access or tailgating incident. |
| |
| |
