Brochure

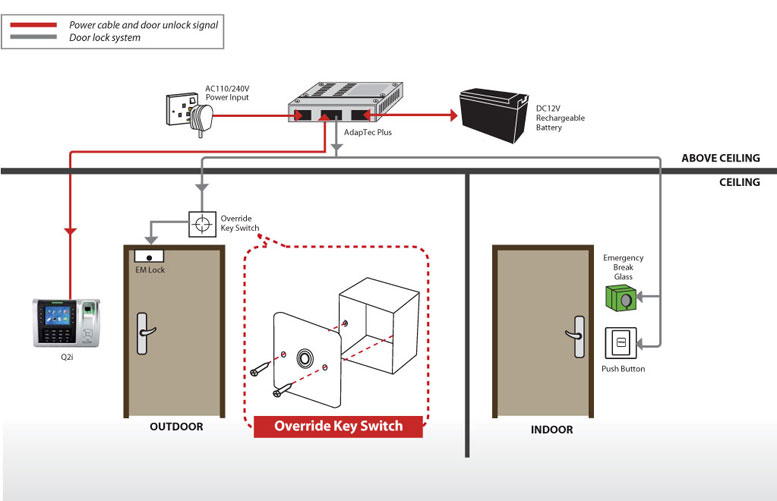

INSTALLATION DIAGRAM
*for illustration purposes only
SPECIFICATIONS FEATURES & BENEFITS
 DIMENSIONS (MM)  86.8mm(L) x 86.8mm(W) x 23mm(H)  • 2 position removable key, single pole
 • Flush Stainless Steel face plate for a neater finish
 • Zinc alloy die-casted lock, housing and cylinder
 • Nickel-plated tubular key
 • Face plate and lock cover ensures weather
    resistant operation
 MATERIAL  Lock housing - Zinc Alloy die-casted, chrome plated
 Cylinder - Zinc Alloy die-casted , 7 pin constructed
 CONTACT RATING  4A 125V AC
 2A 250V AC
 STANDARD  CE approved
