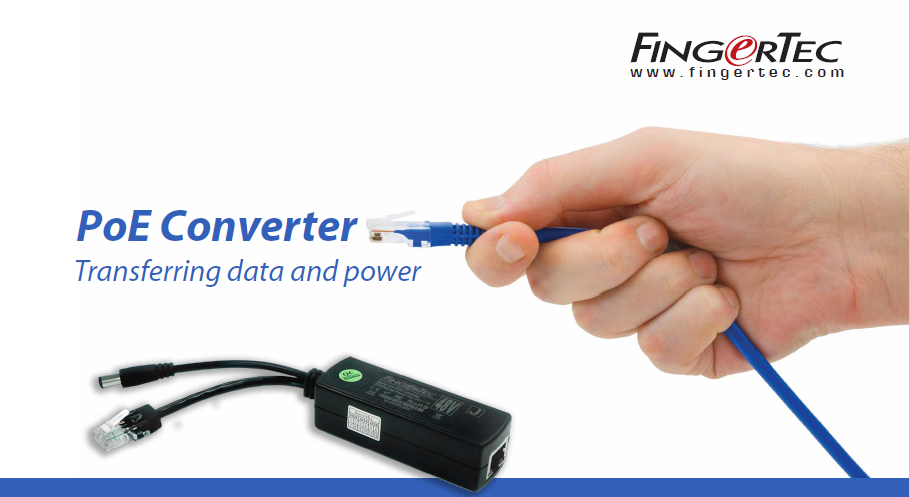

The FingerTec PoE (Power over Ethernet) Converter is used to transfer electric power, along with data, to remote FingerTec terminals over a standard twisted cable in an Ethernet network. The PoE Converter is recommended for premises where electric power supply is infeasible or electrical wiring installation is inconvenient. The PoE technology transmits power and data through the same Ethernet cabling, as an effective alternative to power up FingerTec terminals for both Time and Attendance or Access Control models by DC 12V.
Brochure

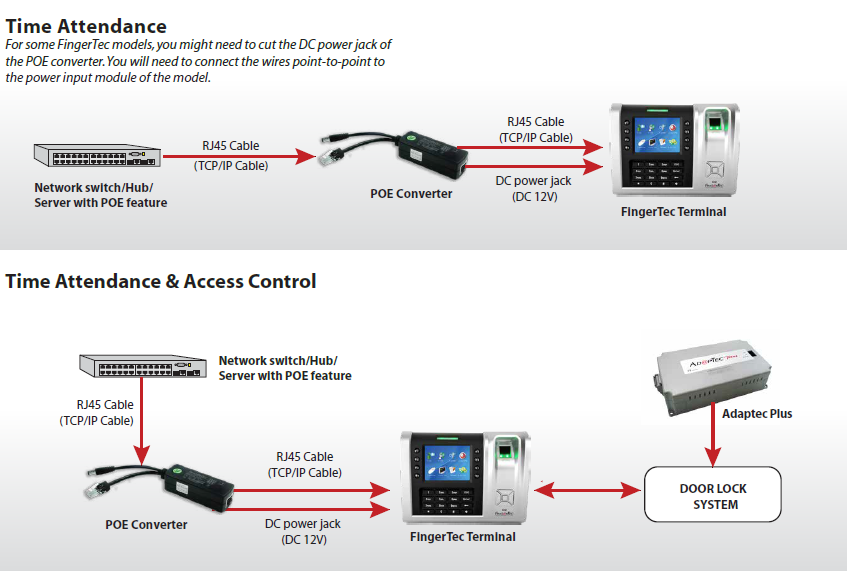

INSTALLATION DIAGRAM


SPECIFICATIONS
TRANSFER RATE 10/100Mbps
POWER Input 48V DC, Output 12V/1.5-2A
POE OUTPUT 15.4W/24W
INTERFACE TYPE 1 Input RJ45 port, 1 output RJ45 port, 1 DC output
OPERATING TEMPERATURE -20 to 50°C
OPERATING HUMIDITY 10 to 80 Non-condensing
STANDARD COMPLIANCE IEEE 802.3 af/at
