Brochure
The rechargeable backup battery provides power to FingerTec terminals when the primary source of power is unavailable. With the right backup battery, your system won’t have to be interrupted during a power failure.

12V7Ah Backap Battery

Access Control System: The external Rechargeable Backup Batteries are almost always used in an access control system. The backup battery prevents intruders from disabling the access control by turning off power to the building, and continues locking the doors secured by the system.

Time & Attendance System: For Time and Attendance System that records clocking-in and out data for employees, power failure might cause discrepancies in the payroll system. Thus, external rechargeable backup batteries are often used in Time & Attendance terminals as a backup power.

SPECIFICATIONS

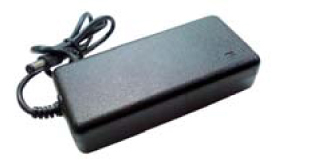

  5VDC and 12VDC Mini UPS

The Mini-UPS works as a portable power source for FingerTec time attendance models. There are 2 models, which can supply 5VDC and 12VDC power for different models. They are a small but long lasting power source. You can recharge the Mini UPS using the same power adaptor of your FingerTec terminal, without having to keep track of an additional/special charger. The Mini UPS can last up to 4 hours* of operation.

*Depends on usage and activity.

SPECIFICATIONS
 MODEL 5V Mini UPS 12V Mini UPS
 DIMENSION 117 x 48 x 27 mm
 CAPACITY 1900mAh
 INPUT 5VDC 2A 12VDC 1.5A
 OUTPUT 5VDC 0.8A 7 to 8.4VDC 1A
 ESTIMATED CHARGING TIME >6 hours >3 hours
 ESTIMATED STANDBY TIME 4 hours

Internal Lithium Backup Battery

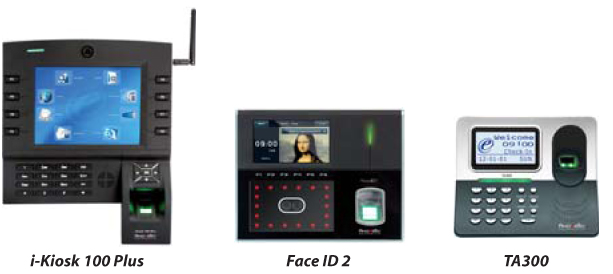

For FingerTec i-Kiosk 100 Plus, Face ID 2, and TA300 terminals, despite the power adaptor being the major power supplier, these models are designed with built-in backup battery to prolong the usage of the terminals for another 2-4 hours when power failure. The Lithium backup battery is same as your cellphone/smartphone battery, which is easily recharged while the terminals are running on the main power source.

SPECIFICATIONS

 MODEL TA300 Face ID 2 iKiosk 100 Plus
 TYPES OF BATTERY Lithium-ion Polymer Battery Lithium-ion Battery
 DIMENSION 64 x 41 x 5mm 73 x 45 x 12 mm 85 x 66 x 11 mm
 CAPACITY 1300mAh 2000mAh
 RATING 3.7VDC 7.4VDC
 ESTIMATED STARDBY TIME 5 hours 4 hours

** Lithium-ion battery (known as: Li-ion battery or LIB) is a family of rechargeable battery types in which lithium ions move from the negative electrode to the positive electrode during discharge, and back when charging. Li-ion batteries use an intercalated lithium compound as the electrode material, compared to the metallic lithium used in the non-rechargeable lithium battery.

**Lithium-ion polymer batteries, polymer lithium ion, or more commonly know as lithium polymer batteries (abbreviated Li-poly, Li-Pol, LiPo, LIP, PLI or LiP) are rechargeable (secondary cell) batteries. LiPo batteries are usually composed of several identical secondary cells in parallel to increase the discharge current capability, and are often available in series "packs" to increase the total available voltage.
