FingerTec is a renowned brand for biometric and card solutions and some terminals come with card verification function. Each terminal can support only one type of card technology at one time. There are a total of 3 card technologies supported by FingerTec terminals, which are RFID, HID and MiFare. The cards are applicable for applications such as access control system, time and attendance, employee ID card, ticketing, visitor management, and etc.

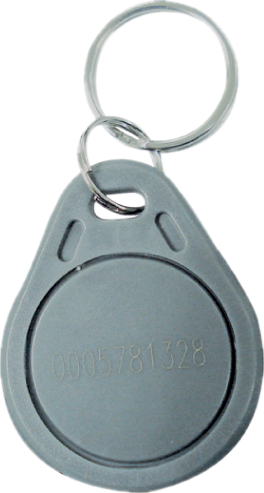

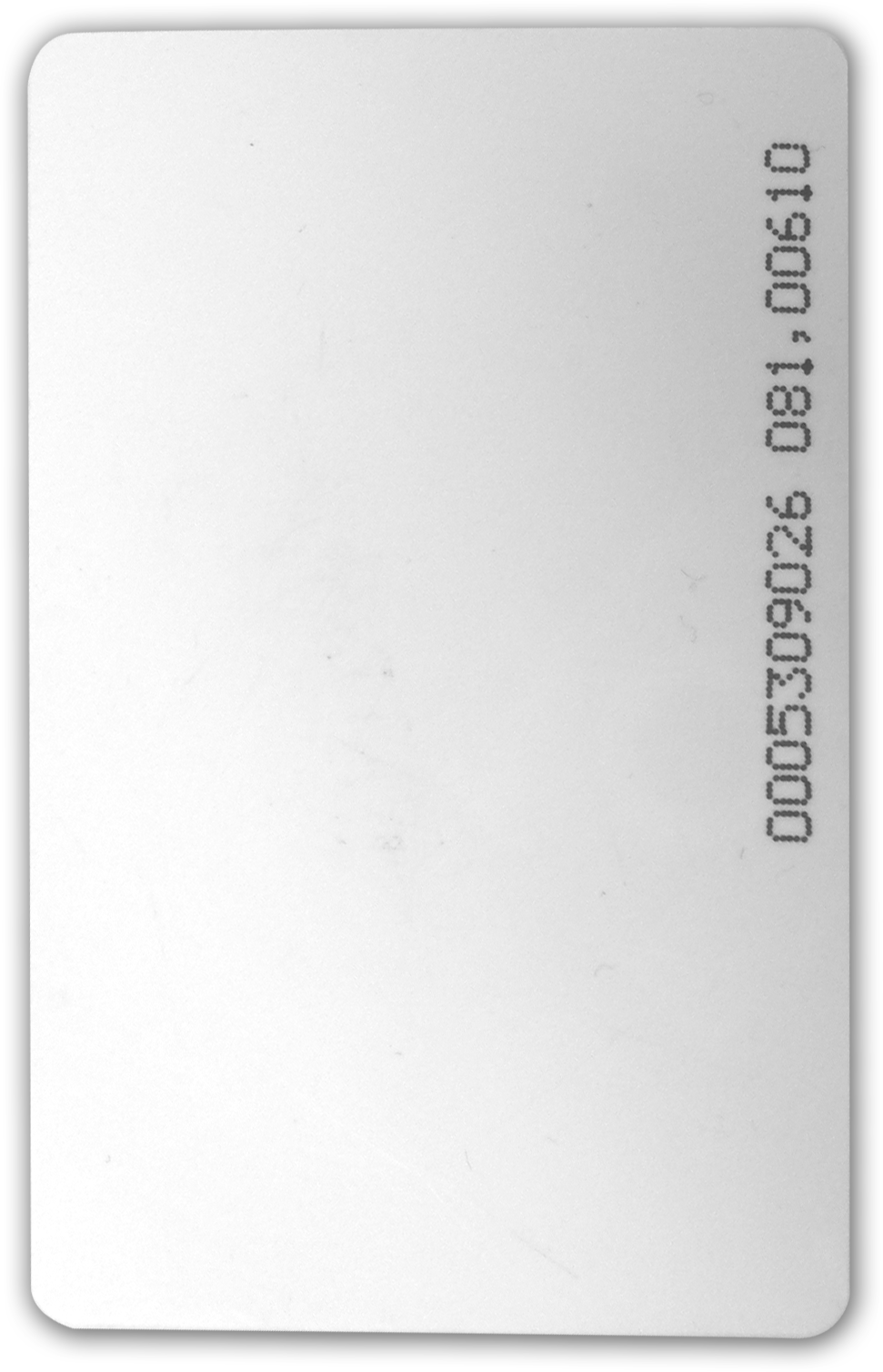

RFID Card RFID Tag

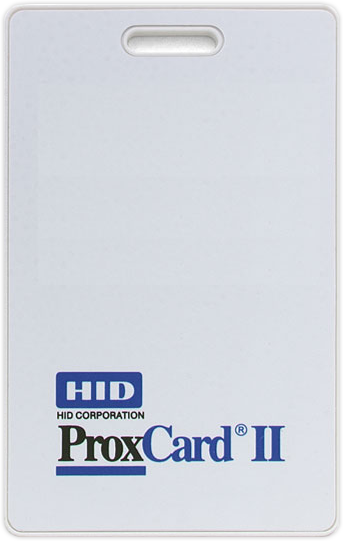

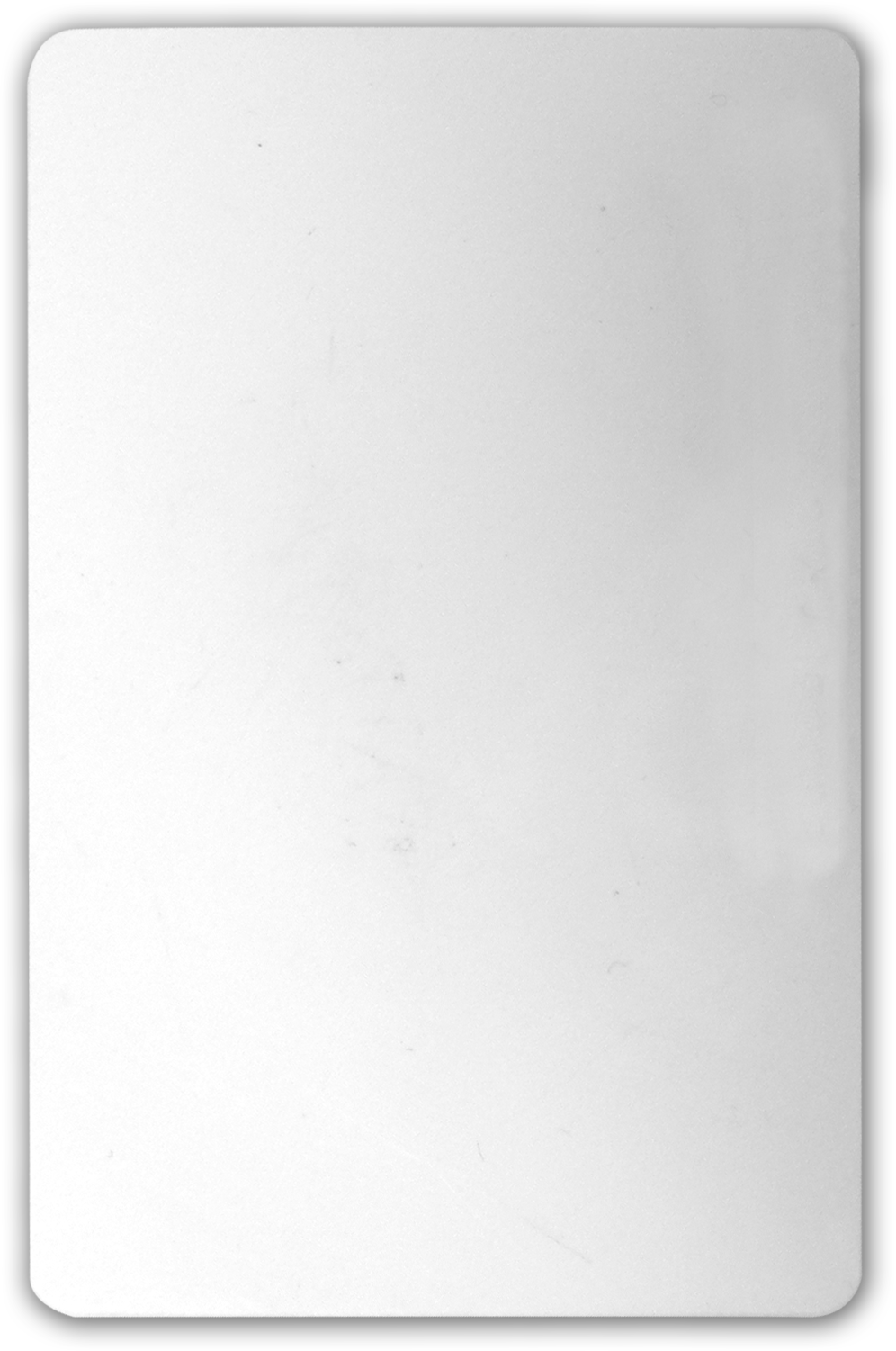

HID Card MiFare Card
BENEFITS
• Proven Technology:  The contactless technology has been commonly used and reliable in various environment conditions.
• Convenient:   All cards are thin and compact, suitable to carry as photo badge ID and fit in wallet or purse for everyday use.
• Compliance:  The cards comply with standard ISO/IEC 7816, 14443-A and HID 1326 to support most RFID/Mifare/HID readers like FingerTec terminals.
• Durable and Long Life:  Robust and can be used for years without having to replace.
• Card Personalization:  Photo printing is applicable on single card for individual identification.
SPECIFICATIONS
MODEL

RFID Card

RFID Tag

HID compatible
(ProxCard® II Card

MiFare
DIMENSION (mm) 54x0.82x85 (mm) 40x32 (mm) 54x0.82x85 (mm) 54x0.82x85 (mm)
COMPATIBLE STANDARD ISO 7816 Base Part No. HID 1326 ISO 14443-A
OPERATING RESONANCE FREQUENCY 125 kHz 125 kHz 125 kHz 13.56 Mhz
STANDARD BITS 64-bit Read Only 26-bit Read Only N/A
CARD CAPACITY No Storage Available No Storage Available No Storage Available 1k bytes EEPROM, organized in 16 sectors with 4 blocks of 16 bytes each
SENSING DISTANCE (mm) 10 ~ 20 mm 10 ~ 20 mm 30 ~ 50 mm 30 ~ 50 mm
SURFACE PRINTABLE Yes No Yes Yes
MATERIAL PVC Overlay ABS PVC Overlay PVC Overlay
OPERATING TEMPERATURE -50 to 160 F (-45 to 70C)
WEIGHT (100 PCS) 660 gm 480 gm 920 gm 600 gm
TIME ATTENDANCE RFID Option
(Default)		 HID Option
(Customize)		 MiFare Option
(Customize)
• Card System
Timeline 100 ✓ ✓ ✓
• Biometric & Card System
TA100C-R ✓ ✓ ✓
TA200 Plus ✓ ✓ ✓
TA300R ✓ ✓ ✓
TA500R ✓ X ✓
• Face Recognition & Card System
Face ID 4 ✓ X ✓
DOOR ACCESS & TIME ATTENDANCE RFID Option
(Default)		 HID Option
(Customize)		 MiFare Option
(Customize)
• Card System
Kadex ✓ ✓ ✓
m-Kadex ✓ ✓ ✓
i-Kadex (slave) ✓ X ✓
k-Kadex (slave) ✓ X ✓
s-Kadex (slave) ✓ X ✓
• Biometric & Card System
H3i ✓ X ✓
R2 ✓ ✓ ✓
R3 ✓ X ✓
R2c (slave) ✓ X ✓
H2i ✓ ✓ ✓
Q2i ✓ ✓ ✓
• Face Recognition & Card System
Face ID 2 ✓ ✓ ✓
Face ID 3 ✓ ✓ ✓
Face ID 4d ✓ X ✓
*N/A: Not applicable
