FingerTec AC100 Plus | Providing fingerprint, face recognition, and card solutions for your time attendance and access control needs

Brochure l User Manual l Video Guide l Quick Start Guide l Installation Guide

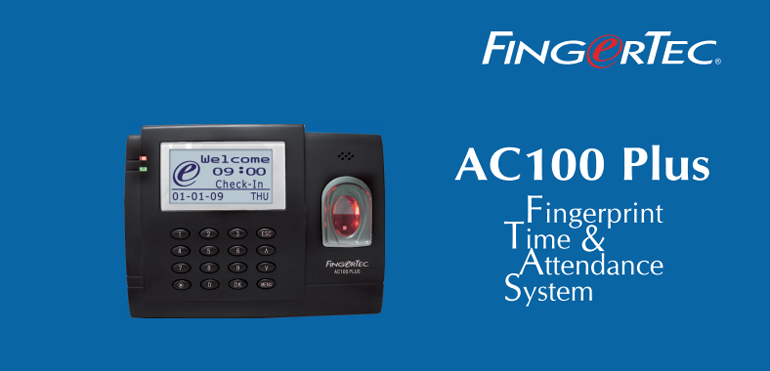

FingerTec AC100 Plus is a high-end fingerprint reader for daily time attendance clocking. The FingerTec AC100 Plus is embedded with URU Scanner for greater accuracy and sensivity. The scanner works excellently even when dealing with bad quality fingerprints.

In addition, the FingerTec AC100 Plus is equipped with a USB port for easy data transfer on top of other available communication connections i.e. TCP/IP. Connection between PC and reader is not an integral part of the system, suitable for heavy traffic environments such as factory and government sectors.

FingerTec AC100 Plus employs the powerful TCMS V2 software for variety of time attendance reports. The software also provides systematic data for analysis and assessment. FingerTec AC100 Plus is a perfect system for time attendance in today's business.

FEATURES & BENEFITS

• Manage one-to-many (1:N) verifications of 1,500 templates

• Allow a maximum of 10 fingerprints enrollment per user

• Possess storage capacity of 30,000 transactions

• Offer easy enrollment and fast clocking system

• Enable transactions download RS232, RS485, TCP/IP and USB Flash Disk

• Equipped with voice greeting to ease operation

• Complete with easy-to-use Windows based time and attendance management software

• Improve management of human resource

Layout Plan

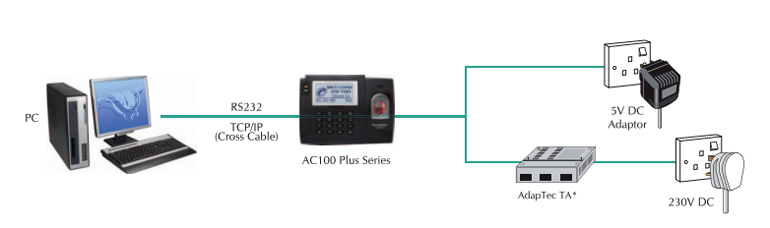

Layout Plan (Standalone)

for illustration only, * AdapTec TA sold separately

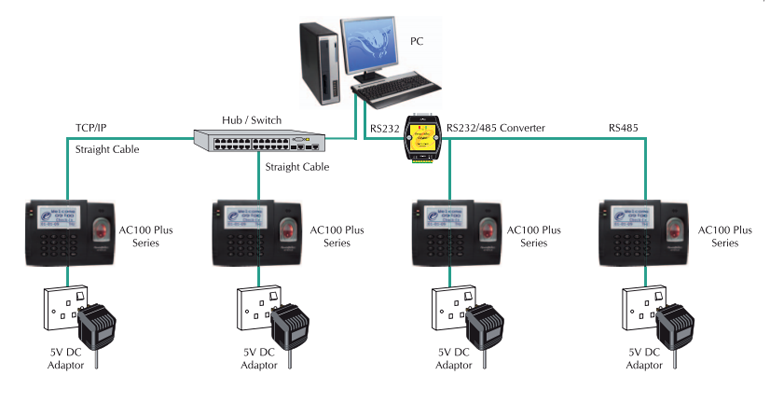

TCP/IP or RS485 Environment

for illustration only, * item not included in the package

Specifications

MODEL	AC102 Plus	AC102 Plus (FRIS)
SURFACE FINISHING	Acrylonitrile Butadiene Styrene (ABS)
TYPE OF SCANNER	Optical
PRODUCT DIMENSION (L X W X H), mm	144 X 48 X 144
STORAGE
• Fingerprint templates	1500
• Transaction	30000
ENROLLMENT & VERIFICATION
• Methods	Fingerprint (1:1, 1:N), Password
• Recommended fingerprint per user ID	2
• Fingerprint placement	Any angle
• Verification time (sec)	< 2
• FAR (%)	< 0.0001
• FRR (%)	< 1
COMMUNICATIONS
• Method	TCP/IP, RS232, RS485, USB Flash Disk
• Baud rates	9600, 19200, 38400, 57600, 115200
OPERATING ENVIRONMENT
• Temperature (°C)	0 ~ 45
• Humidity (%)	20 ~ 80
• Power input	DC5V 2A
TIME ATTENDANCE
• Work codes	Yes
MULTIMEDIA
• Voice	Yes
VOICE / DISPLAY LANGUAGE (TERMINAL)	English (Standard) / (Upon Request - Arabic / Indonesian / Spanish / Turkish / Thai / Polish / Korea / Romanian / Portuguese / Dutch / Chinese / French / Slovenia/ Russian/ Greek / Hebrew / Farsi / Italian / Vietnamese / Czech / Bulgarian)
SOFTWARE LANGUAGE	English, Arabic, Indonesian, Spanish, Chinese, Thai, Vietnamese, French, Farsi, Italian, Russian, Malay, Portuguese, German

*N/A: Not applicable

Packaging
Dimension (mm): 300(L) x 225(H) x 90(W)
Weight: 1.5kg
