| INSTALLATION GUIDE |
 |
| SPECIFICATIONS |
 |
 |
| MODEL |
EM600 |
EM1200 |
| PRODUCT DIMENSION (L X W X H), mm |
250mm x 41 mm x 26 mm |
265mm x 66mm x 40mm |
| POWER INPUT |
DC 12V |
DC 24V |
| CURRENT DRAW |
Stand-by: 250mA, Activity: 500mA |
| HOLDING FORCE |
Approximately 520lbs |
Approximately 900lbs |
| TYPE |
Fail-Safe |
| APPLICABLE TO |
Wooden Door, Glass Door, Grill and Gate |
| POWER SURGE PROTECTION |
MOV |
| AUTHORIZATION CERTIFICATES |
CE |
|
| OPTIONAL BRACKETS |
| L - Bracket |
 |
| |

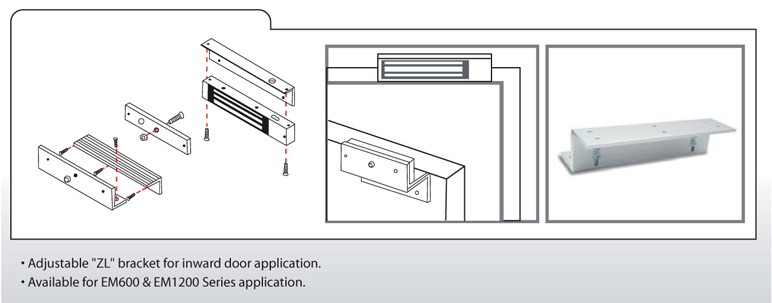

| Z - Bracket |
 |
| |
| U – Bracket |
 |
| MOUNTING DIAGRAM |
| |
|
|
| Standard |
L – Bracket |
Z – Bracket |
 |
 |
 |
 |

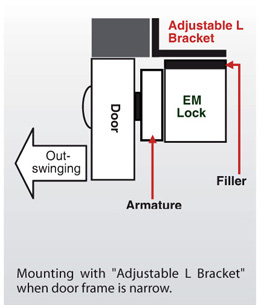

Mounting Procedure: Remove the original "Filler Plate" attached to the EM Lock,
and replace with " Adjustable L Bracket " set. |
|
| |
|
|
|
