Day/Night Mechanical IR
The feature cuts filter, ideal for applications with varying lighting conditions, switching from the day mode color images to the monochrome mode as the scene darkens.
Regions of Interest
The ROI feature lets user to define the area of interest but at the same time not neglecting the areas of less interest.
Smart IR illumination
It captures detailed images in low light or total darkness. The Smart IR technology adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object and it prevents IR LEDS from whiting out images as they come closer to the camera, high performance in extreme low-light environments up to 30m (98ft).
Conforms to ONVIF
The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.
Image Flip Feature
It has the image flip feature that allows the camera's image to be rotated in 90° increments for better video optimization.
Supports Voltage Tolerance
It supports ±10% input voltage tolerance, suitable even for the most unstable conditions for outdoor applications and its 6KV lightning rating provides protection against the camera and its structure from the effects of lightning.

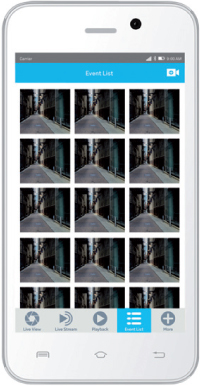

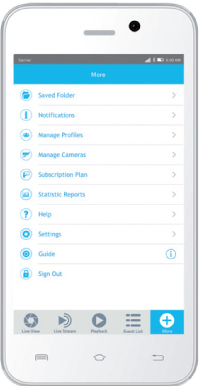

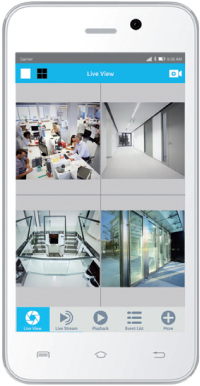

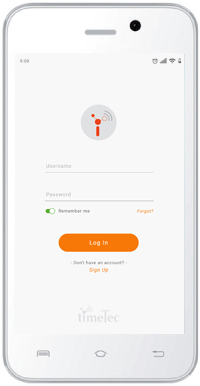

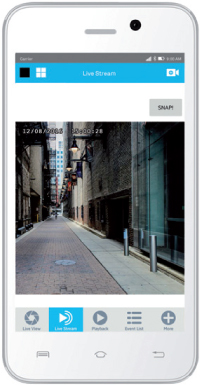

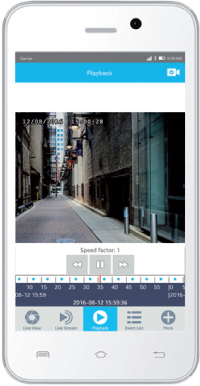

Get Connected to TimeTec Security App
on your smartphone to manage and surveil your home security remotely. Add your Epicam E16S or E17S system, set it accordingly and use many useful features even though you are away from your home.
Connect Your Cameras to Epicamera
to view your homes from the web and if you need extra storage on the cloud, subscribe to the EpiCamera cloud storage at https://www.epicamera.com/pricing
SPECIFICATIONS
IMAGE SENSOR 1/3” 1.3Megapixel progressive CMOS
EFFECTIVE PIXELS 2304(H) x1536(V)
RAM/ROM 256MB/16MB
SCANNING SYSTEM Progressive
MINIMUM ILLUMINATION 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N RATIO More than 50dB
IR DISTANCE Distance up to 30m(98ft)
IR ON/OFF CONTROL Auto/ Manual
IR LEDS 24
LENS
• Lens Type Fixed
• Mount Type Board-in
• Focal Length 2.8 mm (3.6 mm optional)
• Max. Aperture F2.0/F2.0
• Angle of View H:100°/77°, V:55°/42°
• Focus Control Fixed
PTZ
• Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
VIDEO
• Compression H.264/H.264B/H.264H/MJPEG
• Streaming Capability 2 Streams
• Resolution 3M(2304×1296)/1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/ 720P(1280×720)/ VGA(640×480)/QVGA(320×240)
• Frame Rate 3M(1 ~ 20fps)/2M (1 ~ 25/30fps), VGA(1 ~ 25/30fps)
• Bit Rate Control CBR/VBR
• Bit Rate H264:32K ~ 10Mbps
• Day/Night Auto(ICR) / Color / B/W
• BLC Mode BLC / HLC / DWDR
• White Balance Auto/Natural/Street Lamp/Outdoor/Manual
• Gain Control Auto/Manual
• Noise Reduction 3D DNR
• Motion Detetion Off / On (4 Zone, Rectangle)
• Region of Interest Off / On (4 Zone)
• Electronic Image Support
• Smart IR Support
• Digital Zoom 16x
• Flip 0°/90°/180°/270°
• Mirror Off / On
• Privacy Masking Off / On (4 Area, Rectangle)
NETWORK
• Ethernet RJ-45 (10/100Base-T)
• Wi-Fi Wi-Fi (IEEE802.11b/g/n),50m(open field)
• Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v 6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 10 Users/20 Users
• Edge Storage NAS(Network Attached Storage), Local PC for instant recording, Micro SD Card 128GB
• Web Viewer IE, Chrome, Firefox, Safari
• Management Software TimeTec Security
• Smart Phone iPhone, iPad, Android Phone
CERTIFICATIONS
• Certifications CE (EN 60950:2000), UL:UL60950-1, FCC: FCC Part 15 Subpart B
ELECTRICAL
• Power Supply DC12V
• Power Consumption < 4.4W
ENVIRONMENTAL
• Operating Conditions -10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH
• Storage Conditions -10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH
• Ingress Protection IP67
CONSTRUCTION
• Casing Metal+Plastic
• Dimensions Φ70mm×164.7mm(2.76x6.49)
• Net Weight 0.43Kg (0.95lb)
• Gross Weight 0.52Kg (1.158lb)
