FingerTec FRIS II | Providing fingerprint, face recognition, and card solutions for your time attendance and access control needs

Fingerprint Remote Identification Server or FRIS is a well designed server application intended for clients with large user capacity requirements and we are talking about more than what individual FingerTec terminals could contain. FRIS server is a giant-size online verification server designed to receive fingerprint templates from FingerTec terminals for verification. The limit of FRIS’s user capacity is dependant upon the server’s hard drive capacity. When using FRIS, FingerTec terminals become fingerprint capturing stations only to prompt users with result(s) of verification while the server acts as the fingerprint matching station.

All transaction logs from the FingerTec terminals are stored in an database server (MySQL or MSSQL) for software developers or system integrators to utilize the database server to work with their application development. By using FRIS, software developers can develop their application without using BioBridge SDK; instead they can gather all transaction logs from the database server, and use their software to process data be it for time attendance calculations reports, payroll, or HR evaluation. System integrators can upgrade the system without having to use the BioBridge SDK, as they can gather information from the database server for integration with their current solution. In the case where an online verification is not required, fingerprint templates can be stored in each terminal. FRIS server then becomes a main control station, which transfers users to all terminals and downloads transaction logs from all terminals. The same storing mechanism applies in FRIS where the transaction logs are stored in the database server for software developers or system integrators to utilize. Software developers or system integrators can run the FRIS server to control all FingerTec terminals without having to develop a new application using BioBridge SDK

FEATURES & BENEFITS

STAFF MANAGEMENT

Better staff management and monitoring system via networked servers

MONITORING OF UNIT BRANCHES

Headquarters management of unit branches through multi-linked servers

MANAGEMENT OF MULTI READERS

Management of unlimited numbers of FingerTec terminals through a server

DATA SHARING

Smoother and safer data sharing between different employee levels

DATA CENTRALIZATION

Data centralization becomes more efficient and effective

DATA SECURITY

Secure data storage via MySQL or MsSQL database

SOFTWARE INTEGRATION

Data stored in database server provides the accessibility for third-party software intergration.

CONNECTIONS

Connectivity is possible via WAN (Wide Area Network), LAN (Local Area Network)

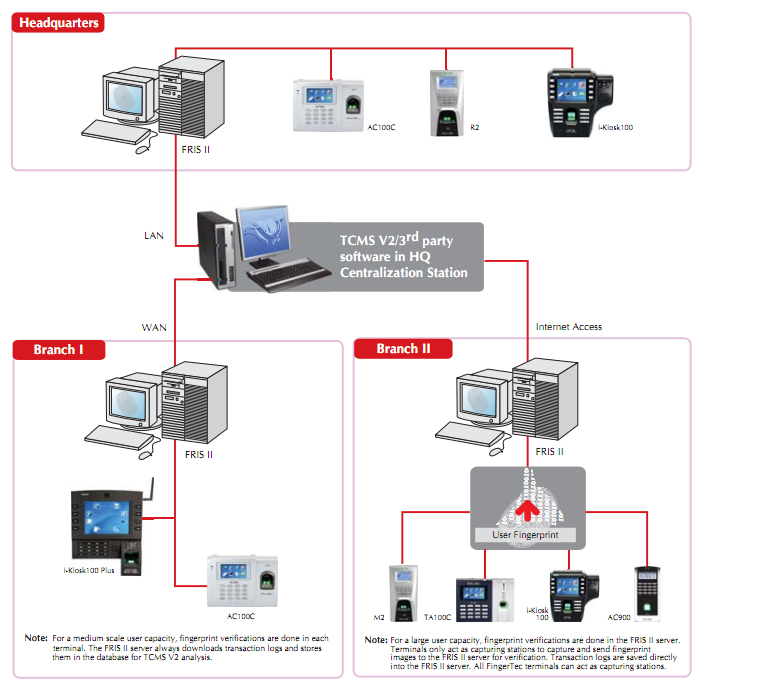

SYSTEM DIAGRAM

for illustration only

MINIMUM SYSTEM REQUIREMENTS

FRIS II Module

• Pentium 4 3.0Ghz
• 1GB RAM
• 100MB for Server module installation
• Windows 2000 (Professional / Server), Windows XP (Professional), Windows 2003 Server, Windows Vista, Window 7 (32bits), Window 2008 server (32bits)

Specifications

DATABASE	MySQL 4.2 or MsSQL 2005
SUPPORTING MODEL	All FingerTec terminals
TRANSACTIONS STORAGE	Unlimited, depends on database and hard drive storage
COMMUNICATION PROTOOL	TCP/IP (port: 4368 & 4369) and UDP (port: 4371)
ETHERNET SPEED	100mbpS
FRIS II LANGUAGE	English
TCMS LANGUAGE	English, Arabic, Malay, Indonesian, Chinese, Thai, Spanish, Portuguese, Vietnamese, French , Russian, Persian, German, Italian,Turkish

Packaging
Dimension (mm): 150(L) x 50(W) x 270(H)
Weight: 0.2kg
