| 4 Unlocking Credentials Unlock doors using password, card, mechanical key or your smartphone’s Bluetooth connection |
| 3 User Group Types Gain better access control management with FingerTec Smart Lock User Group Types: Admins, Regular Users and Temporary Users. |
| User Capacity Register as many users as you desire within TimeTec Security App and i-Neighbour App through a smartphone. |
| Normally Open Type This particular setting caters for offices or areas with regular visitor access. Thereby, reducing instances resulting in entrances being ‘bottlenecked’. |
| Optimal Battery Life Only 4 AA alkaline batteries are required to operate over 6000 accesses. Hence, approximately a year of use before you are faced with the low-battery warning indication. |
| Reversible Left-Right Open DL-30B is designed with a sturdy bar latch alongside an interchangeable handle which allows the door to be easily customized as a left-open or right-open door. |
| Emergency Override Key IIn case of an emergency like losing a smartphone, DL-30B comes with a concealed override key for accessing the door. |
| Downloadable App Android and iOS Apps for i-Neighbour and TimeTec Security are available for those who prefer to use a smartphone in terms of door access. |

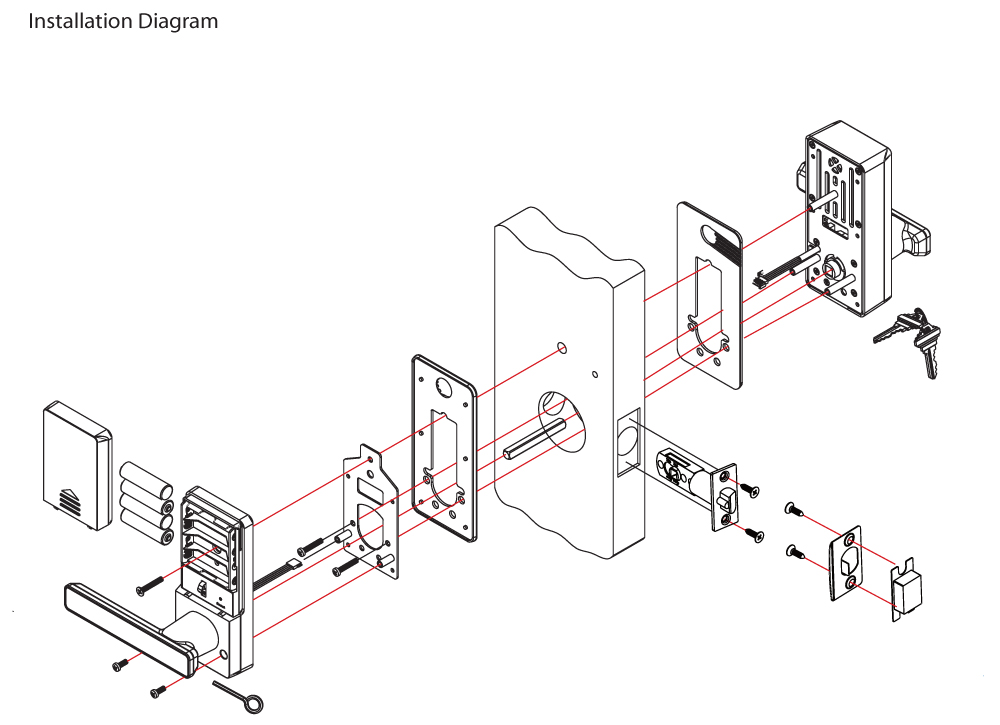

| LAYOUT PLAN |
| SPECIFICATIONS | |
| MODEL | DL-30B |
| SURFACE FINISHING | RFID |
| ALGORITHM | Biobridge VX 10.0 |
| RESOLUTION OF SCANNER (dpi) | 560 |
| PRODUCT DIMENSION (L X W X H), mm |
Front panel: 69 x 35 x 155 (with handle) |
| Back panel: 69 x 25 x 155 (with handle) | |
| • Thickness of door, mm | 30-38 (optional), 39-46 (standard) |
| 47-54 (standard), 55-60 (optional) | |
| • Door latch type | Single deadbolt |
| • Inner lock switch | Yes |
| STORAGE | |
| • Password | 100 |
| • Card | 100 |
| • Bluetooth | Unlimited users for TimeTec Security App & i-Neighbour App |
| BLUETOOTH VERIFICATION | |
| • Communication | Bluetooth 4.0 |
| OPERATING ENVIRONMENT | |
| • Voice guidance | Yes |
| • Temperature (°C) | - 20 to – 55 |
| • Humidity (%) | 20 ~ 80 |
| • Power input | 4 x1.5v AA battery for 6000 operations |
| • Power consumption – static (µA) | < 35 |
| • Power consumption – activity (mA) | < 135 |
| • Power consumption – driving (mA) | < 200 |
| • Antistatic voltage (V) | > 1500 |
| • Low battery warning voltage (V) | < 4.5 |
| BACKUP UNLOCK MECHANISM | Battery & mechanical key |
| MOBILE OS | Android 4.0.2 and above, iOS 8.0 and above |
| APP LANGUAGE | Arabic, Chinese Simplified and Traditional, English, Hindi, Indonesian, Malay, Nepali, Spanish, Thai, Turkish, Vietnamese. Other languages are available upon request |
| NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information |
 |
| Packaging Dimension (mm) : 298 (L) x 123 (W) x 222 (H) Weight : 3.15 kg |
 |
 |
 |
 |
 |
 |
 |
