FingerTec® OFIS

OFIS
Online Fingerprint Identification System

All software systems will eventually go web-based and online. For years, system developers have been trying hard but failed to improve the very commonly used but unreliable “username” and “password” system login with better authentication method. The mass system security market remains untapped. Introducing the FingerTec® Online Fingerprint Identification System (OFIS), the long awaited system to solve the loosen remote and online verification problem with its added biometric features.

The FingerTec® OFIS runs on Browser/Server (B/S) Environment, where user can enroll their fingerprint through FingerTec® OFIS Scanner that links to a PC. For verification, the user’s fingerprint is to be read by the scanner and the encrypted fingerprint data will be transmitted to be compared and verified with the stored fingerprint templates at the remote back-end server through the Internet/Intranet/WAN/LAN.

FingerTec® OFIS SDK (Software Development Kit) consists of FingerTec® OFIS Server and FingerTec® OFIS Client modules, deploys a uniquely fast and accurate fingerprint verification technique, can seamlessly and easily be integrated into any solutions and systems to enhance its threshold security. Your first class solution shouldn’t be dampened by the mediocre threshold entry. Tolerate no more; your choice is FingerTec® OFIS!

Download

[ FEATURES & BENEFITS ]


	Allow 1:1 and 1:N fingerprint verifications
	Unlimited user capacity for 1:1 fingerprint verifications; 1:N based on server capacity
	Fast and precise verification with FingerTec® Ofis Scanner
	Encrypted fingerprint data using FingerTec® algorithm on client side
	Hassle-free fingerprint registration and verification
	Combination of PIN and biometrics or apply ONLY biometrics to eliminate fraud
	Program Interface: ActiveX for easy integration with any third party system solution
	Fingerprint template storage: ODBC compatible database
	Development environment: VB, MS VC++, Delphi, MS ASP, VB.NET, ASP.NET and etc.
	Sample application written in MS VC++, VB, Delphi, MS ASP are provided
	Client module supports multilingual feature
	Works well with dry, moist or rough fingerprints

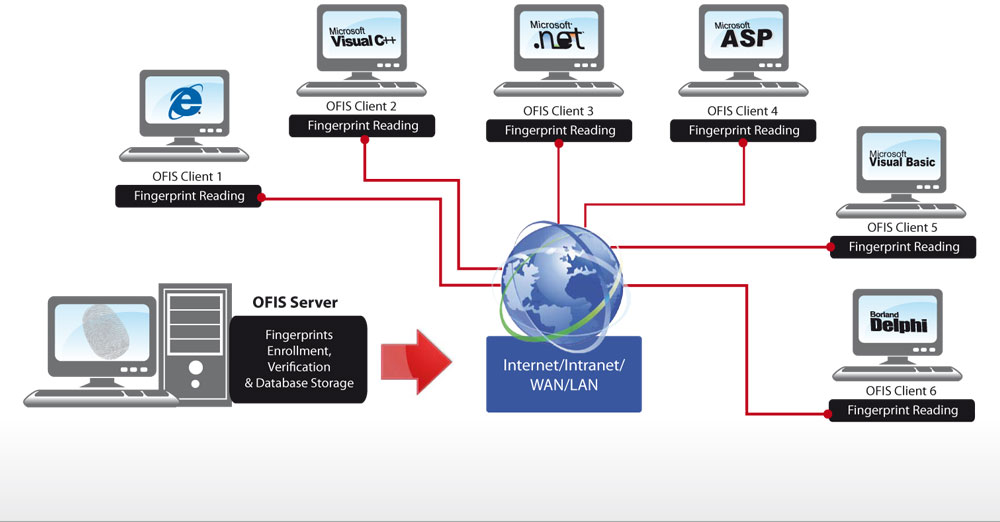

[ LAYOUT PLAN ]

Click to View

[ MINIMUM SYSTEM REQUIREMENTS ]

OFIS Server Module

IBM compatible PC

Pentium III 450 or above

256MB RAM

15MB for server module installation (Storage varies upon the number of fingerprints stored)

Standard mouse and keyboard

MS Windows 2000 and above with IIS support

OFIS Client Module

IBM compatible PC

Pentium III 450 or above

64MB RAM

5MB for client module installation Standard mouse and keyboard

1 x USB port for FingerTec® Ofis Scanner

MS Windows 98 SE and above with Internet Explorer (IE 6)

[ SPECIFICATION ]

Pixel resolution	512 dpi (average x, y over the scan area)
Scan capture area	14.6 mm (width at center), 18.1 mm (length)
Scan data	8-bit grayscale (256 levels of gray)
Reader size (approximate)	80 mm x 50 mm x 15 mm
Compatibility	USB 1.0, 1.1 and 2.0 (Full Speed) specifications
OS/Browser	MS Windows / MS Internet Explorer (IE 6)
Power supply voltage	5.0V +/-0.25V USB supply
Supply current - Scanning	190mA (typical）
Supply current - Idle mode	140mA（typical）
Supply current - Suspend mode	1.5mA（max )
ESD susceptibility	>15 KV, mounted in case
Operating temperature (°C)	0 - 40
Operating humidity (%)	20 - 90, non-condensing
Standard FCC Class	FCC Class B, CE, ICES, BSMI, MIC, USB
Usage	Indoor, home and office use
