Variety of Verification Q2i contains not only fingerprint verification, but also provide other commonly used methods including cards, passwords, and their combinations. |
Complete Access Solution Install the slave, R2c with Q2i to achieve a more secure full biometrics system for your in/out entry/exit door access system to block all unauthorized entries and exits. |
Manage Remote Data Easily With Ingress, manage the data of all your remote doors easily, determine the settings of your access control system and get the details of all the access activities from one central location. |
Built In Alarm Q2i allows installation of external alarm to your access system to alert you during emergencies and break-ins. Secure your premise with GroupTimeZone and Group Verify functions. |
Precise Identity Verification Q2i uses minutiae point matching fingerprint technology, an advanced algorithm to match the stored fingerprint template with the live one to guarantee authenticity. |
Data Management Simplified FingerTec Q2i is equipped with TCP/IP connectivity and when that is not available, a USB flash port can be used to transfer transaction logs into your computer. |
Cost Effective Instead of installing two Q2i devices in all entrances throughout the building, opt to pair Q2i and R2c for a greater value for money and at the same time enjoy complete biometrics coverage. |
Workcodes Let your employee experience independence by reporting their whereabouts via Q2i workcode function. Select a workcode listed and scan a finger to verify. |

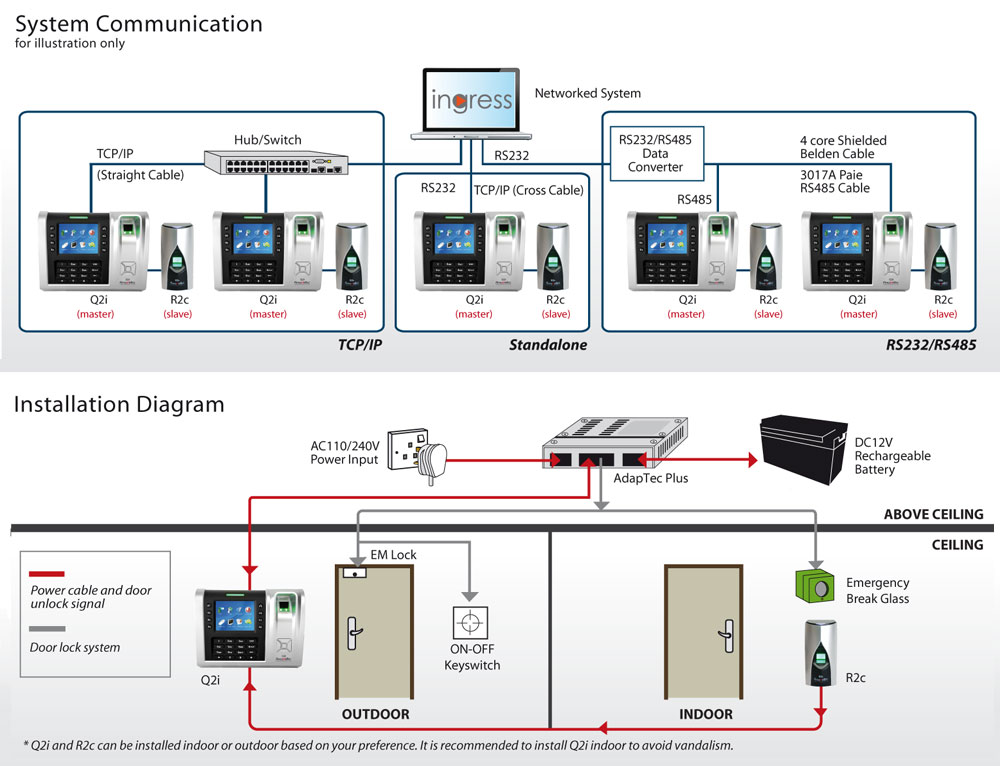

LAYOUT PLAN |
SPECIFICATIONS | ||
MODEL | Q2i (Master) | R2c (Slave) |
SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) | |
TYPE OF SCANNER | Non coated optical scanner | |
MICROPROCESSOR | 800 MHz | Managed by master |
MEMORY | 256 MB flash memory & 364 MB SDRAM | |
PUSH TECHNOLOGY |
Yes | N/A |
ALGORITHM | BioBridge VX 9.0 / VX 10.0 | Supports BioBridge VX 10.0 |
DIMENSION (L X W X H), mm | 200 x 56 x 160 | 64 x 42 x 135 |
STORAGE | ||
• Fingerprint templates | 10000 | Storage in master terminal |
• Cards | 10000 | |
• Transactions | 200000 | |
ENROLLMENT & VERIFICATION | ||
• Methods | Fingerprint (1:1, 1:N), card & password | Fingerprint (1:N) & card |
• Recommended fingerprint per user ID | 2 | Managed by master |
• Fingerprint placement | Any angle | |
• Verification time (sec) | < 1 | Managed by master |
• FAR (%) | < 0.0001 | |
• FRR (%) | < 1 | |
CARD TECHNOLOGY | ||
• RFID: 64-bit, 125kHz | Yes | |
• MIFARE: MFIS50/S70, 13.56MHz | Make to order | |
• HID: HID 1326, 26-bit, 125kHz | Make to order | N/A |
COMMUNICATIONS | ||
• Method | TCP/IP, RS232, RS485, USB disk (Optional WiFi, GPRS & 3G) | RS485 |
• Baud rates | 9600, 19200, 38400, 57600, 115200 | N/A |
• Wiegand | 26-bit input/output | N/A |
OPERATING ENVIRONMENT | ||
• Temperature (°C) | 0 ~ 45 | |
• Humidity (%) | 20 ~ 80 | |
• Power input | DC 12V 3A | Managed by master |
TIME ATTENDANCE | ||
• Siren | Built- in (Optional - external) | N/A |
• Work codes | Yes | N/A |
MULTIMEDIA | ||
• Voice | Yes | N / A |
• Display | 3.5” 65k color TFT screen | |
• Short messaging | Yes | |
ACCESS CONTROL | ||
• EM lock driving output | DC 12V 3A / relay output | Managed by master |
• Alarm output | NO / NC | |
• Anti passback | Yes | |
VOICE / DISPLAY LANGUAGE (TERMINAL) (only for Q2i) |
English (Standard), Arabic, Indonesian, Chinese Traditional (Cantonese), Chinese Simplified, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian. Other languages are available upon request. |
|
SOFTWARE LANGUAGE | Arabic, Bulgarian, Chinese (Simplified), Chinese (Traditional), English, German, Hindi, Indonesian, Kurdish, Malay, Portuguese, Russian, Spanish, Thai, Vietnamese |
