Cost Effective
To maintain an IN-OUT access control system using fingerprint access, you no longer need to invest in two master terminals. Replace one with an R2c and reduce your cost significantly.
Verification and Storage in Master or Controller
A simple mechanism applied to R2c, all verifications and data storage are managed by a master terminal or controller.
Flexible Installation Distance
The installation distance between the master terminal and the R2c slave terminal can go as far as 10 meters with a standard 4-core shielded Belden cable.
Seamlessly Pairs with FingerTec Terminals
The R2c is specially designed to seamlessly pair with FingerTec fingerprint models, which include R2 (FEM565), AC900, Q2i, H2i and R3*.
* Selected models only

Small Size
With a width and height of 4.2 cm and 13.5 cm respectively, the size of the R2c is ideal for most office environments.



Simple RS485 Connection
The R2c is designed with the standard RS485 communication port, to ease connection with the FingerTec fingerprint terminals and controllers.
Multiple Verifications
Besides fingerprint verification, the R2c also offers RFID card verification. MiFARE card verification feature is also available upon request.
Access Control Management
All EM Lock driving outputs, alarm outputs, and anti-passback via the R2c can be diverted to be managed by a master terminal or Ingressus Controller in an access control system.

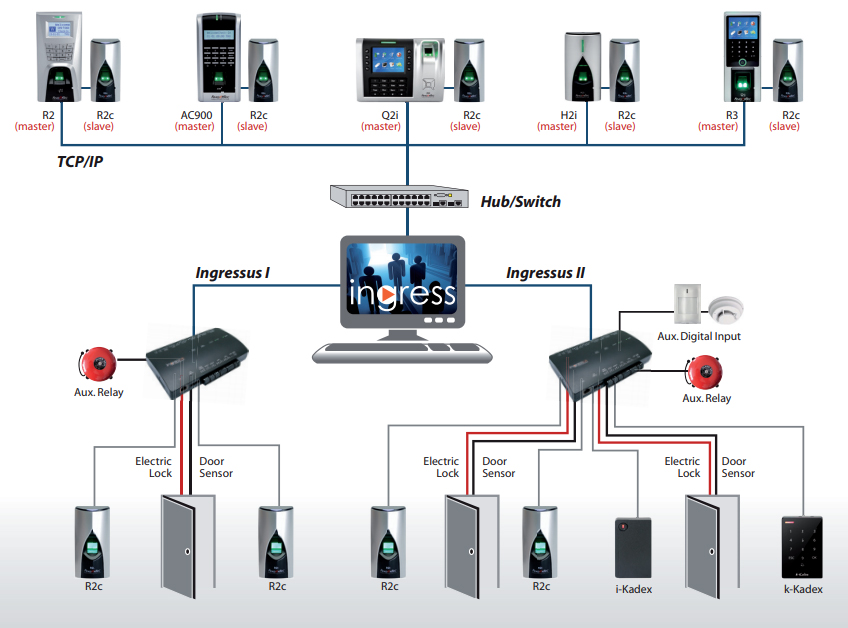

Layout Plan
System Communication
for illustration only
SPECIFICATIONS
MODEL R2c
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non coated optical scanner
MICROPROCESSOR Managed by master
MEMORY
ALGORITHM Supports BioBridge VX 10.0
PRODUCT DIMENSION (L X W X H), mm 64 x 42 x 135
STORAGE
• Fingerprint templates Storge in master terminal
• Transactions
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:N) & card
• Recommended Fingerprint per user ID Managed by master
• Fingerprint placement Any angle
• Verification time (sec) Managed by master
• FAR (%)
• FRR (%)
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
• MIFARE: MFIS50/S70, 13.56MHz Made to order
COMMUNICATIONS
• Method RS485 (Connects to Master Terminal)
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input Managed by master
ACCESS CONTROL
• EM lock driving output Managed by master
• Alarm output
• Anti passback
NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information
*N/A: Not applicable
Packaging
Dimension (mm): 173 (L) x 60 (W) x 135(H)
Weight: 0.34 kg
