Both the FingerTec TCP/IP and RS485 surge protector provides a high level protection against voltage peaks and spikes caused by lightning and other power surges. The surge protectors are shielded with a metal case aluminum enclosure and also EMI noise suppression that will not interrupt the communication. They are also equipped with an integral ground wire to connect to a single point ground connection (metal chassis) to facilitate proper grounding. It is recommended that the surge protector should be installed as close as possible to the FingerTec devices to better protect the terminals.

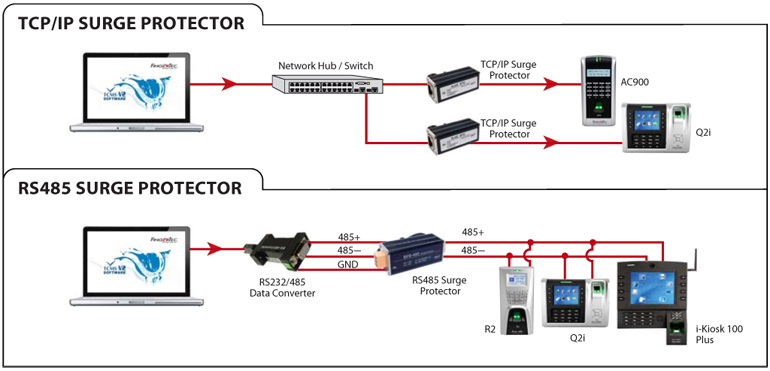

INSTALLATION DIAGRAM


SPECIFICATIONS
 MODEL TCP/IP Surge Protector RS485 Surge Protector
 DIMENSION (MM) 60 x 25 x 25 75 x 25 x 25
 OPERATING VOLTAGE (V) 5 12
 CLAMPING VOLTAGE (V) < 50 (1, 2, 3, 6) < 80
 MAX SURGE DISCHARGE CURRENT 2.5KA (8/20uS) 5KA (8/20uS)
 DATA TRANSMISSION RATE (MBPS) 100 2
 RESPONSE TIME (S) <1
 OPERATING TEMPERATURE (°C) -40 to 70
 OPERATING HUMIDITY (% NON-CONDENSING) 0 to 90
 CONNECTORS RJ45 shielded jacks RS485+, 485- and GND (input)
RS485+ and 485- (output)
 GROUND WIRES Yes
 CABLES CAT5, CAT5e Belden Shielded Twisted Pair (STP)
 EMI NOISE SUPPRESSION Yes
