Eliminate Buddy Punching
The weakness with the clock-in card system is that ‘buddy punching’ can occur where one employee can clock in the time for another employee if any of them are late. Eliminate this occurrence by using the unique per-individual fingerprint as a clock-in card!
Easy Data Management
All you need is a USB flash disk to transfer transaction logs to your computer. It is that easy!
Manage Attendance Data Online
TimeTec Cloud solution centralizes attendance data on a secured cloud server for easy management, monitoring and auditing, It is available online at a minimal subscription cost of USD2 per user monthly only.
Full Colour Screen
This model comes with a full colour TFT screen. Display pictures corporate advertisements, screen savers and much more on the colour screen of the terminals.

Workcodes
Let your staff experience more independence by reporting their whereabouts via our workcodes feature.



Short Message Display
Alert your staff by personalizing a short message to be displayed at the terminal when they verify.
User-Friendly Icons
Complete with configuration icons, the interface in TA100C couldn’t be more user-friendly.
Value for Money
This model was designed to be economical so that you are able to implement FingerTec solutions at a lower cost. We believe that when it comes to security, there should be no compromise.

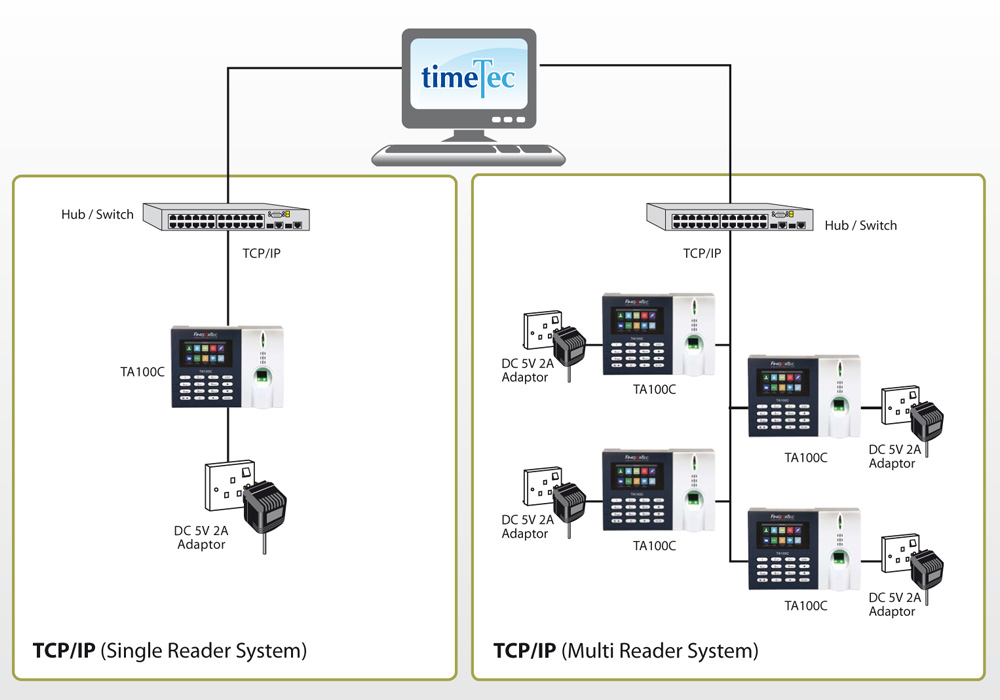

Layout Plan
for illustration only
MODEL TA100C
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non coated optical scanner
MICROPROCESSOR 800 MHz
MEMORY 256MB flash memory & 128MB SDRAM
ALGORITHM BioBridge VX 9.0 / BioBridge VX 10.0
DIMENSION (L X W X H), mm 190 x 52 x 140
STORAGE
• Fingerprint templates 8000
• Cards N/A
• Transactions 200000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N) & password
• Recommended Fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330) N/A
• MIFARE: MFIS50/S70, 13.56MHz N/A
• HID: HID 1325, 26-bit, 125kHz N/A
COMMUNICATIONS
• Method TCP/IP, USB disk (Optional RS232, RS485, WiFi & GPRS)
• Baud rates 9600, 19200, 38400, 57600, 115200
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC5V 2A
TIME ATTENDANCE
• Siren Built-in and External
• Work codes Yes
MULTIMEDIA
• Voice Yes
• Display 3.0” 65k color TFT screen
• Short messaging Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Malay, Indonesian, Chinese Traditional / Simplified, Cantonese, Thai, Vietnamese, Spanish, Portuguese (Portugal), Portuguese (Brazil), French, Russian, German, Turkish, Persian. Other languages are available upon request.
*N/A: Not applicable
Packaging
Dimension (mm): 245(L) x 90(W) x 225(H)
Weight: 1kg
