| Supersized Capacity Get up to 10,000 card templates and 30,000 transaction logs – more than enough to fulfill the requirements of an SME. |
| Workcode Let your staff experience more independence by reporting their whereabouts via our workcodes feature. |
| Value for Money This model was designed to be economical so that you are able to implement FingerTec solutions at a lower cost. We believe that when it comes to security, there should be no compromise. |
| Combine Your Verification Method Opt for the combination of verification methods to secure your workplace further. Choose the card and password verification with the TimeLine 100 for tighter security. |
Easy Data Management
|
| Manage Attendance Data
Online TimeTec Cloud solution centralizes attendance data on a secured cloud server for easy management, monitoring and auditing, It is available online at a minimal subscription cost of USD2 per user monthly only. |
| User-Friendliness The TimeLine 100 is not only easy to install, it is also comprehensive in its user-friendliness. |
| Short Message Display Alert your staff by personalizing a short message to be displayed at the terminal when they verify. |

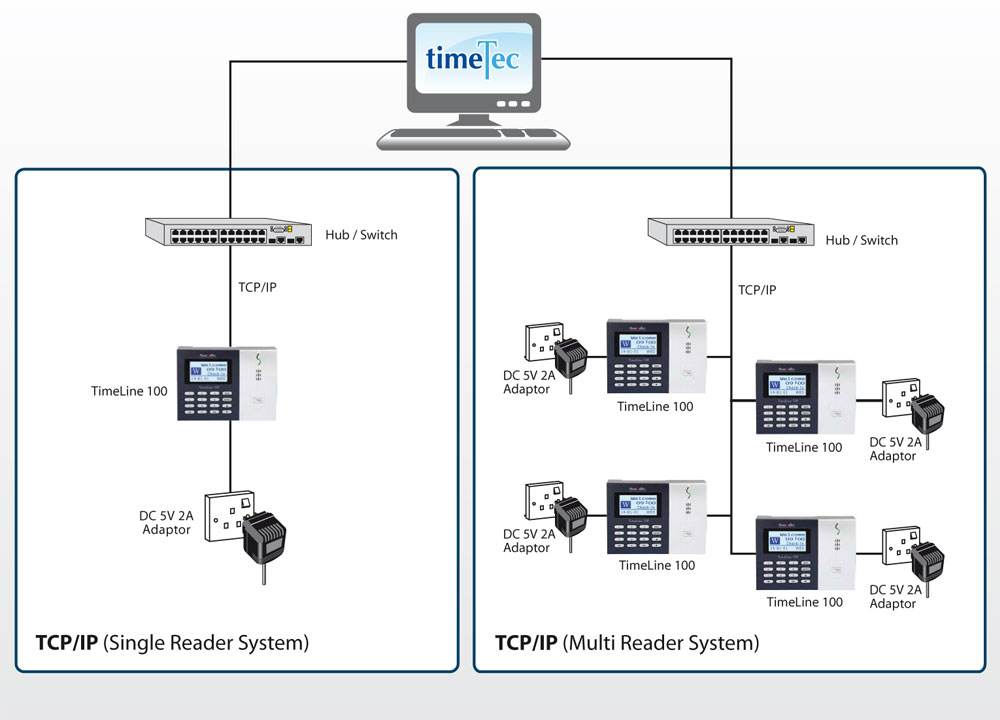

| Layout Plan |
| for illustration only |
| SPECIFICATIONS | |
| MODEL | TimeLine 100 |
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) |
| TYPE OF ANTENNA | RFID |
| MICROPROCESSOR | 400 MHz |
| MEMORY | 8 MB flash memory & 32 MB SDRAM |
| ALGORITHM | BioBridge VX 9.0 |
| PRODUCT DIMENSION (L X W X H), mm | 190 x 50 x 140 |
| STORAGE | |
| • Cards | 10000 |
| • Transactions | 30000 |
| ENROLLMENT & VERIFICATION | |
| • Methods | Card & Password |
| • Card per user ID | 1 |
| • Reading distance, mm | 40 ~ 80 (RFID, HID), 30 ~ 50 (Mifare) |
| • Verification time (sec) | < 1 |
| CARD TECHNOLOGY | |
| • RFID: 64-bit, 125kHz | Yes |
| • MIFARE: MFIS50/S70, 13.56MHz | Make to order |
| • HID: HID 1325, 26-bit, 125kHz | Make to order |
| COMMUNICATIONS | |
| • Method | TCP/IP, USB disk (Optional: RS232 & RS485) |
| • Baud rates | 9600, 19200, 38400, 57600, 115200 |
| OPERATING ENVIRONMENT | |
| • Temperature (°C) | 0 ~ 45 |
| • Humidity (%) | 20 ~ 80 |
| • Power input | DC 5V 2A |
| TIME ATTENDANCE | |
| • Siren | Buit in and external |
| • Work codes | Yes |
| MULTIMEDIA | |
| • Voice | Yes |
| • Display | Black and white |
| • Short messaging | Yes |
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Malay, Indonesian, Chinese Traditional / Simplified,
Cantonese, Thai, Vietnamese, Korean, Spanish, Portuguese Portugal / Brazil, Polish, French, Russian, German, Italian, Turkish, Persian, Slovak, Greek, Dutch, Hebrew, Romanian, Bulgarian. Other languages are available upon request. |
 |
| Packaging Dimension (mm): 245(L) x 90(W) x 225(H) Weight: 1.04kg |
 |
 |
 |
 |
 |
 |
 |
