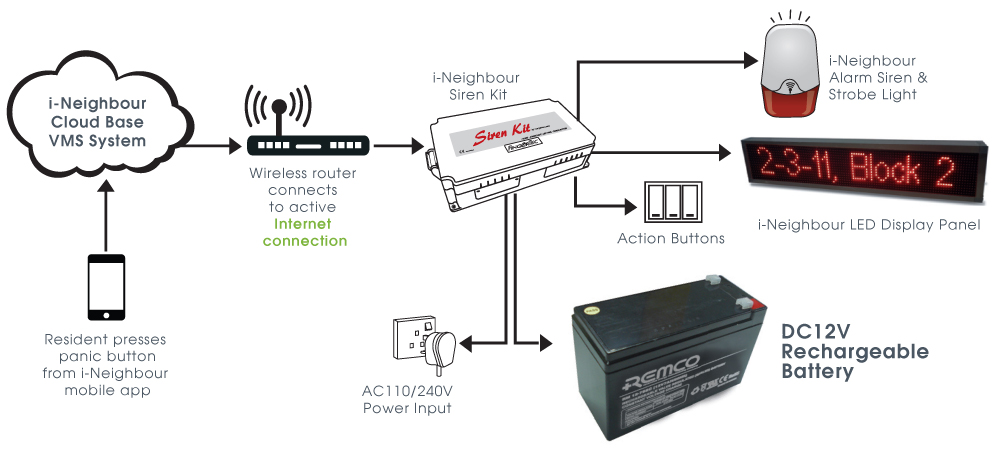

| INSTALLATION DIAGRAM *for ilustration only |
|
|
| SPECIFICATIONS | ||||
| DIMENSION (BODY) | 150 x 64 x 92mm | |||
| WEIGHT | 1.96 kg | |||
| DIMENSION (BATTERY TERMINALS) | 4.8 x 0.8 mm | |||
| VOLTAGE | 12VDC | |||
| CAPACITY | 7Ah | |||
| TECHNOLOGY | Seal Lead Acid | |||
| CYCLE USE | 14.5 to 14.9VDC | |||
| STANDBY USE | 13.6 to 13.8VDC | |||
| INITIAL CURRENT | < 2.8A | |||
| STANDBY CHARGE VOLTAGE | 13.8V | |||
| ESTIMATED STANDBY TIME (1 TERMINAL, 1 SET OF DOOR LOCK) |
7 hours | |||
|
 |
 |
