| Convenient

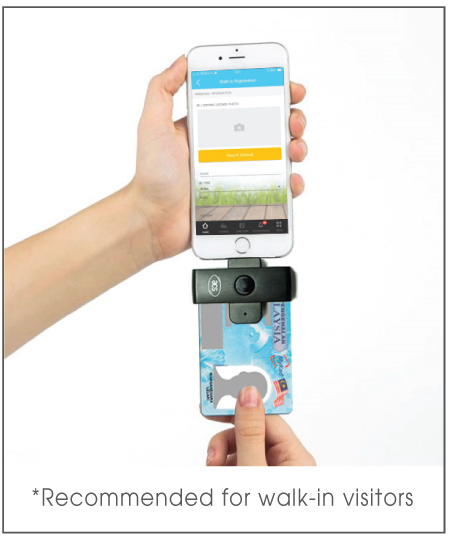

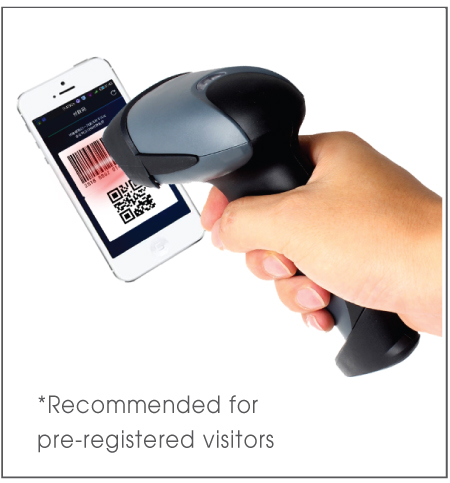

Simple operations, efficient outcome. A single swivel of the smart cards on the ACR38U will read the information required and with a scan from QSR10, can the visitors be confirmed. |
| Speed up Registration No data input required because the devices reads from a smart card and a QR code to output the data straight into the system; speeds up the process, shortens waiting time. |
| Affordable Deployment
The price of these tools is minute compared to the advantages they bring. |
Portable
|
| No Human Error The tools eliminates the possibility of human errors because all the data is read by the tool straight into the system. |
| Robustness
QSR10 can scan up to 50 million times and ACR380 is contactless thus providing a longer life span. |

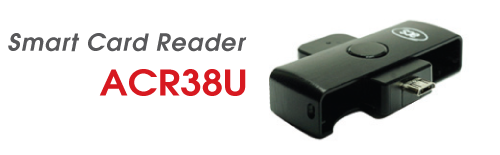

| SPECIFICATIONS |
| Dimensions | 58.0 mm (L) x 20.0 mm (W) x 13.7 mm (H) | |
| Compliance / Certifications | EN60950/IEC 60950, ISO 7816, FIPS 201, TAA, CE, FCC, VCCI, PC/SC, CCID, EMV 2000 Level 1, RoHS, USB Full Speed, Microsoft WHQL: 2000, XP, Vista, 7, 8, Server 2003, Server 2008, Server 2008 R2, Server 2012 | |
| Interface | MicroUSB (OTG) Full Speed | |
| Supply Voltage | Regulated 5V DC | |
| Supply Current | Max. 50mA | |
| Operating Temperature | 0-50°C | |
| CLK Frequency | 4 MHz | |
| Smart Card Interface Support | ISO 7816 Class A, B and C ( 5 V, 3 V, 1.8 V ) | |
| Operating System Support | Android™ 3.1 and above | |

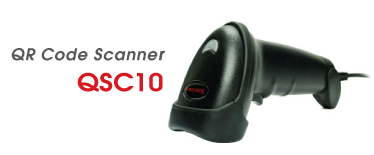

| SPECIFICATIONS |
| Performance Parameter | ||
| Working Current | 340mA | |
| Dc Power Supply | Class2;DC 5.2V@1A | |
| Working Power | 2W,400mA@5V-The typical value | |
| Barcode Type | Standard 1D (Code 128, Code 39, EAN13, EAN8, UPC ect) ,2D barcode (PDF417,Data Matrix,QR ect) | |
| Key Scan Times | 5000,0000 times | |
| System Interface | USB | |
| The Data Line Length | 1.5 meters | |
| Scan Speed | 200 scan per sec | |
| Environmental Parameter | ||
| Operating Temperature | 0C-40 C | |
| Storage Temperature | -40C-60C | |
| Operating Humidity | 5%-95% Relative humidity,no condensation state | |
| Electrostatic Protection | +/-15kVDC Air discharge, +/-8kVDC Direct/indirect discharge | |
| Fall-down Test | 50 order/1.5M; | |
| Ambient Light Immunity | 0-100.000LUX | |
| Exercise Tolerance | 100mm/sec 13milUPC | |
| IP Class | IP41 | |
| Led Safety Certification | IEC6247 | |
| CB | IEC60950 | |
| Integrated Authentication | GOST-R(Russia),CE | |
| EMI | Accord en50081,par1 specifications | |
| Emc Electromagnetic Compatibility | EN55022,EN55024 Class B | |
| Dust Resistant | Seal to resist invasion of dust particles in the air. | |
| NOTE: Specifications are subject to change. Check http://accessory.fingertec.com for latest product information |
 |
 |
 |
 |
 |
