UHF Card adopts ultra high frequency encrypted chip, especially
designed for TimeTec UHF long range reader. The UHF card is ultra thin,
easy to carry, the size of standard credit card, with an identifiable
reading distance up to 10 meters.
| SPECIFICATIONS | ||
| Material | UHF-Card | |
| Working Frequency | 860~928MHz | |
| Reading Distance | Up to 10 meters for UHF1-10E and UHF1-10F (Determined by the environment and reader) | |
| Protocol | ISO18000-6C | |
| Memory Capacity | 800 bits | |
| Chip UID | 64 bytes | |
| Storage Structure | EPC: 96 bits; TID: 96 bits; User: 512 bits; Password: 64 bits | |
| Data Storage | 5 years ( Only for chip ) | |
| Working Temperature | -30°C ~ 55°C | |
| Storage Temperature | -10°C ~ 40°C | |
| Storage Humidity | 40%-50% RH | |
| Dimension | 85mm*54mm*0.8mm（ error±0.06mm ) | |
| Packaging Process | Process Hot Laminating | |
| Notes: 1. In order to have the best reading performance, please keep the tag's position the same as antenna’s polarization direction. Hold the card horizontally when accessing barrier gate. 2. Do not bend the tag, which may cause the damage of the internal chip. |
||
| NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information. |

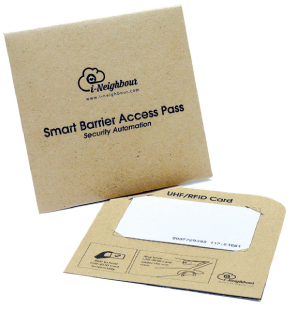

| Packaging Dimension (mm) : 12 (W) x 12 (H) Weight : 0.03kg |
