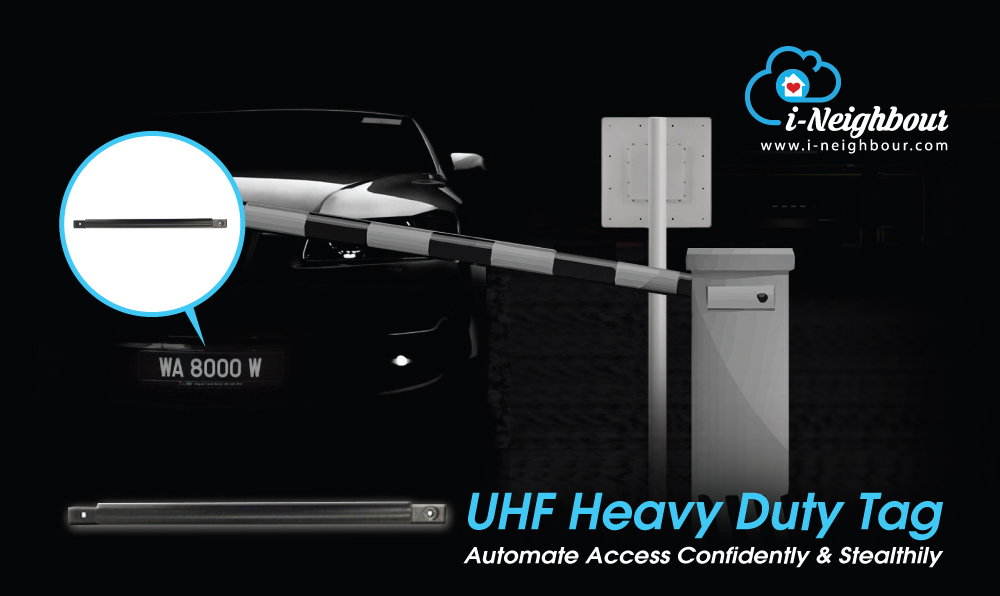

The UHF Heavy Duty Tag is a ultra high frequency encrypted tag for TimeTec UHF long range reader. The UHF tag is suitable for barrier gate access management, with card reading distance up to 10 meters. This tag offers cost effective long range vehicle identification installations requiring tamperproof mounting. The UHF Heavy Duty Tag is an effective solution for installations where the tag needs to be mounted onto the exterior of the vehicle to achieve an automation and a hand-free access.
• Designed for outdoor use
• Strong impact resistance
• Identification up to 10 meters
• High performance on metal and non-metal surfaces
• Passive battery free tags
• Highly chemical resistant
• Water and shock proof
SPECIFICATIONS
Model UHF Heavy Duty Tag
Working Frequency 840~960MHz
Reading Distance Up to 10 meters for UHF1-10E and UHF1-10F (Determined by the environment and reader)
Protocol ISO / IEC18000-6C, EPC global Class 1 Gen 2
Chip G2XM
Memory Capacity 272 bits
Storage Structure EPC: 96bits, UID / TID: 64bits, User: 512bits, Access Password: 32bits, Kill Password: 32bit
Erase Endurance 10,000 times (Only for chips)
Data Storage 20 years (Only for chips)
Environmental Requirements RoHS Certificate
Storage Temperature 0~40°C
Storage Humidity 40%-70%RH
Working Temperature -30~60°C
Dimension 249 * 13.8 * 18 ( mm ) ± 0.5 (mm)
Installation Fixed on the upper and lower edges of the license plate (Parking Applications)
Notes:
1. In order to have the best reading performance, please keep the tag's position the same as antenna’s polarization direction.
2. Do not bend the tag, which may cause the damage of the internal chip.
NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information.
