| FRIS |
| FingerTec® Remote Identification System |
| |
FingerTec® Remote Identification System, FRIS is a solution that centralizes all individually installed FingerTec® Plus model readers under one management system. FRIS is suitable for a large user-based site and a complex environment where centralized data management is crucial and inevitable. With FRIS, the server will perform the fingerprint verification process and record all transactions data while the FingerTec® readers work only as fingerprint reading stations.
FRIS solves the storage limitation of individual fingerprint readers with the availability of larger storage capacity of its server. The outstanding FingerTec® algorithm maintains the high speed and accuracy though the verifications are performed remotely at a server.
FRIS works with MySQL and it can be networked with the AC100 Plus (FRIS) and AC800 Plus (FRIS) models of FingerTec® readers and the |
|
|
| |
OFIS scanner, in a single or multiple models environment. FRIS also can be seamlessly integrated with FingerTec®TCMS V2, a powerfultime attendance and access control software, that is supplied by all FingerTec® readers. (Note: The work code function of FingerTec® Plus model is not available in FRIS environment.)
FRIS is a clear choice for customers with large user database and those who are having many branches, which includes multinational companies, educational institutions, various ministries and government departments and many more. |
| |
|
|
| |
| FEATURES & BENEFITS |
|
|
 |
Storage Size: FRIS offers larger storage depends on server capacity for a sizeable user-base and extensive transaction logs |
|
Staff Management: FRIS offers better management and monitoring of staff via a standalone server |
|
Monitoring of Unit Branches: Management of unit branches by headquarters through multi-link servers |
|
Management of Multi Readers: FRIS allows management of multiple FingerTec® readers through one server |
|
Data Sharing: FRIS provides smoother and safer data sharing between different management levels |
|
Connections: FRIS offers WAN (wide area network), Internet access or LAN (local area network) to control servers and data management |
|
Data Centralization: With FRIS, data centralization is efficient and more effective |
|
Data Security: FRIS offers secure data storage |
|
Software Integration: FRIS is compatible with FingerTec® BioBridge SDK for third party software integration |
|
| |
|
| |
| MINIMUM SYSTEM REQUIREMENTS |
|
|
 FRIS Server Module |
|
Pentium 4 3.0Ghz |
|
1GB RAM |
|
100MB for Server module installation |
|
1 x USB port (for optional OFIS scanner) |
|
Windows 2000 (Professional / Server),
Windows XP (Professional), Windows 2003 Server |
|
 |
FRIS Client Module
(Applicable for OFIS scanner only) |
|
|
Pentium III 450 or above |
|
128MB RAM |
|
50MB for Client module installation |
|
1 x USB port (for optional OFIS scanner) |
|
MS Windows 98 SE & above |
|
|
| |
|
| |

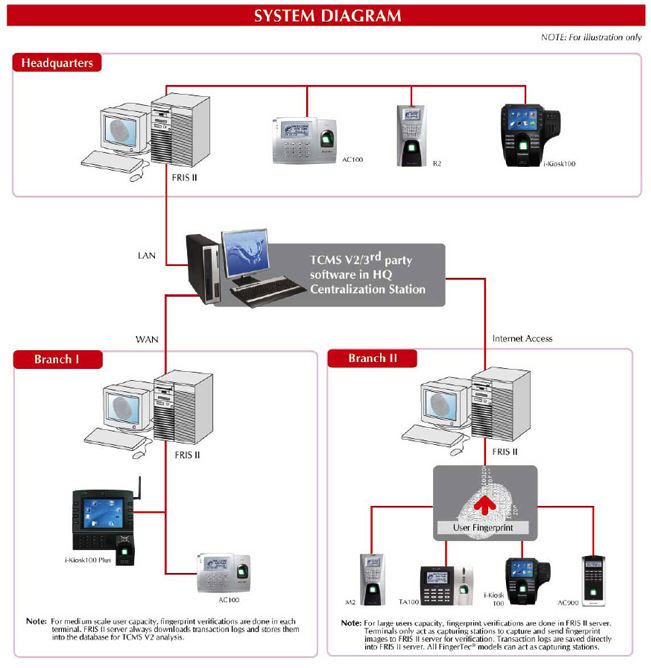

| SYSTEM DIAGRAM |
|
|
 |
| |
|
| |
| SPECIFICATION |
|
|
| Database |
MySQL 4.2 |
| Supporting Model |
AC100 Plus (FRIS), AC800 Plus (FRIS), OFIS scanner |
| Fingerprint Reader Per Server |
Recommended 5 readers connecting to a server |
| Identification Method |
1:N, 1:1 |
| *Identification Time |
<=1000 (<=1.5 second), 1000 – 3000 (<=3 seconds), 3000 - 10000 (<=4 seconds) |
| Enrollment |
Recommended to 2 fingerprints per user |
| FAR |
<=0.001% |
| FRR |
0.01% |
| User Capacity |
Recommended 20000 templates store in a server |
| Transactions Storage |
Unlimited, depends on database and hard drive storage |
| Communication Protocol |
TCP/ (port: 4368 & 4369) and UDP (port: 4371) |
| Ethernet Speed |
100mbs |
| Language |
English |
| *The performance result is based on Pentium D 3.0GHz, 1GB RAM. The time excludes data transmission from FingerTec® Reader to FRIS server. |
|
|
|
