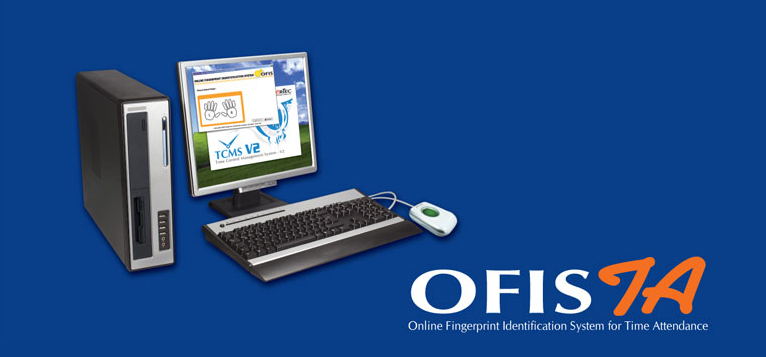

To meet the demands of small-sized companies, OFIS TA incorporates the highly sensitive PC-based fingerprint scanner with TCMS V2 to produce an effective time and attendance system that is not only user-friendly but also fraud proof. With OFIS TA there is no complicated hardware installation required and the system can be applied to any environment that has computers. In addition to providing simple solutions to smaller sized companies, OFIS TA also can be used as enrollment stations for larger corporations that are deploying multiple units of FingerTec readers in their corporations.

OFIS TA can store as many fingerprint templates as possible depending on the storage capacity of the computer and the fingerprint templates from OFIS TA are transferable to all FingerTec readers. Therefore, the templates captured can be used as main templates and they can be transferred to select readers accordingly.

OFIS TA, a simple fingerprint solution that provides superior benefits to all FingerTec users.

Brochure User Manual Video Guide Technical Tips

FEATURES & BENEFIT MINIMUM SYSTEM REQUIREMENTS
Combination of PIN and biometrics or ONLY biometrics verification to eliminate fraud
Fast and precise verification with FingerTec® OFIS Scanner
Allow 1:1 and 1:N fingerprint verifications
Unlimited user capacity for 1:1 fingerprint verifications; 1:N based on PC capacity
Hassle-free fingerprint registration and verification
Works well with dry, moist or rough fingerprints
Pentium III 450MHz or higher PC compatible processor
128MB RAM and above
30MB free disk space for TCMS V2 software, recommended 100MB or higher for database
Microsoft Windows 98SE/ME/2000/XP
Latest updates and patches for Microsoft Windows are recommended

LAYOUT PLAN

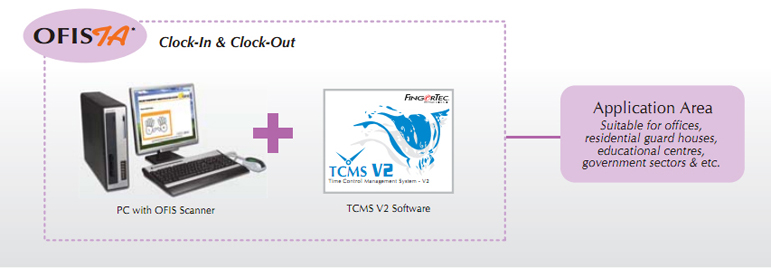

Single OFIS TA (Standalone)

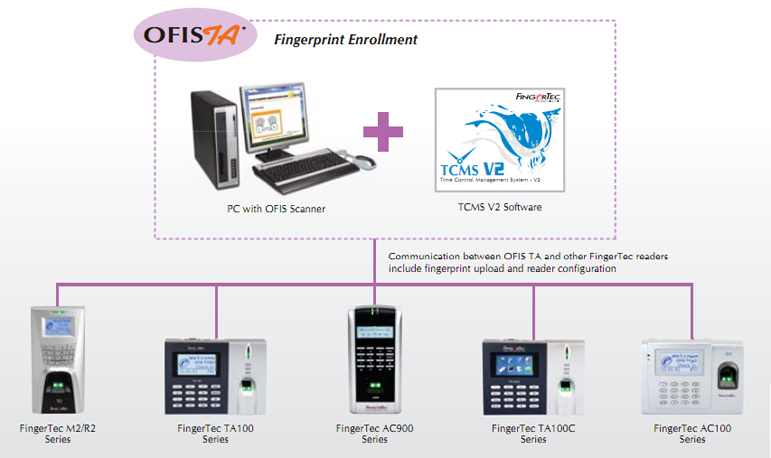

OFIS TA as Enrollment Station

SPECIFICATIONS

Model OFIS-X OFIS-Y
Algorithm BioBridge VX 9.0 / VX 10.0
Supporting OS 32-bit Windows XP, Windows Vista, Windows 7 32/64-bit Windows XP, Windows Vista, Windows 7, Windows Server 2008
Pixel resolution 512 dpi (average x, y over the scanning area)
Scan capture area 17mm (width at the center), 26 mm (length) 15mm x 18 mm
Scan data 8-bit grayscale (256 levels of gray)
Reader size (approximate) (L x W x H), mm 87 x 58 x 24 45 x 78 x 40
Compatibility USB 1.0, 1.1 and 2.0 (Full speed) specifications
OS/Browser MS Windows/ MS Internet Explorer (IE 9)
Power supply 5.0V +/- 0.25V USB supply
Operating temperature (°C) 0 – 40 0 – 55
Operating humidity (%) 20 – 80 non-condensing
Standard FCC Class FCC Class B, CE, USB
Usage Indoor, home and office us

OFIS TA Packaging
Dimension (mm) : 135 (L) x 49 (W) x 164 (H
Weight : 0.32kg
OFIS-Y TA Packaging
Dimension (mm) : 135 (L) x 49 (W) x 164 (H
Weight : 0.34kg
