| OFIS |
| Online Fingerprint Identification System |
| |
All software systems will eventually go web-based and online. For years, system developers are trying to find replacement for the very commonly used but unreliable “username” and “password” system login with better authentication method. The mass system security market remains untapped. Introducing the FingerTec® Online Fingerprint Identification System (OFIS), the long awaited system to solve the loosen remote and online verification problem with its added biometric features.
The FingerTec® OFIS runs on Browser/Server (B/S) Environment, where user can enroll their fingerprint through FingerTec® OFIS Scanner that links to a PC. For verification, the user’s fingerprint is to be read by the scanner and the encrypted fingerprint data will be transmitted to be compared and verified with the stored fingerprint templates at the remote back-end server through the Internet/Intranet/WAN/LAN. |
|
|
| |
FingerTec® OFIS SDK (Software Development Kit) consists of FingerTec® OFIS Server and FingerTec® OFIS Client modules. Deploy a uniquely fast and accurate fingerprint verification technique, OFIS can be integrated seamlessly and easily into any solutions and systems to enhance its threshold security. Your first class solution shouldn’t be dampened by the mediocre threshold entry. Tolerate no more; your choice is FingerTec® OFIS! |
|
|
| |
| FEATURES & BENEFITS |
|
|
 |
Allow 1:1 and 1:N fingerprint verifications |
|
Unlimited user capacity for 1:1 fingerprint verifications; 1:N based on server capacity |
|
Fast and precise verification with FingerTec® Ofis Scanner |
|
Encrypted fingerprint data using FingerTec® algorithm on client side |
|
Hassle-free fingerprint registration and verification |
|
Combination of PIN and biometrics or apply ONLY biometrics to eliminate fraud |
|
Program Interface: ActiveX for easy integration with any third party system solution |
|
Fingerprint template storage: ODBC compatible database |
|
Development environment: VB, MS VC++, Delphi, MS ASP, VB.NET, ASP.NET and etc. |
|
Sample application written in MS VC++, VB, Delphi, MS ASP are provided |
|
Client module supports multilingual feature |
|
Works well with dry, moist or rough fingerprints |
|
| |
|
| |
| MINIMUM SYSTEM REQUIREMENTS |
|
|
 OFIS Server Module |
|
IBM compatible PC |
|
Pentium III 450 or above |
|
256MB RAM |
|
15MB for server module installation
(Storage varies upon the number of fingerprints stored) |
|
Standard mouse and keyboard |
|
MS Windows 2000 and above with IIS support |
|
 OFIS Client Module |
|
IBM compatible PC |
|
Pentium III 450 or above |
|
256MB RAM |
|
15MB for server module installation
(Storage varies upon the number of fingerprints stored) |
|
Standard mouse and keyboard |
|
MS Windows 2000 and above with IIS support |
|
|
| |
|
| |

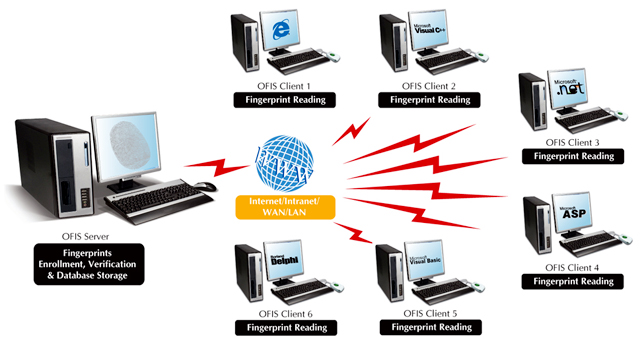

| SYSTEM DIAGRAM |
|
|
 |
| |
|
| |
| SPECIFICATION |
|
|
| Pixel resolution |
512 dpi (average x, y over the scan area) |
| Scan capture area |
17 mm (width at center), 26 mm (length) |
| Scan data |
8-bit grayscale (256 levels of gray) |
| Reader size (approximate) |
87 mm x 58 mm x 24 mm |
| Compatibility |
USB 1.0, 1.1 and 2.0 (Full Speed) specifications |
| OS/Browser |
MS Windows / MS Internet Explorer (IE 6) |
| Power supply voltage |
5.0V +/-0.25V USB supply |
| Supply current - Scanning |
100mA (typical） |
| Supply current - Idle mode |
30mA（typical） |
| Supply current - Suspend mode |
0.5mA（max ) |
| ESD susceptibility |
>15 KV, mounted in case |
| Operating temperature (°C) |
0 - 40 |
| Operating humidity (%) |
20 - 80, non-condensing |
| Standard FCC Class |
FCC Class B, CE, USB |
| Usage |
Indoor, home and office use |
|
|
|
 |
|
