FingerTec Ingress Software User Guide | Chapter 3 - Setup of Zones

Chapter 3

Setup of Zones

This chapter guides you on setting up zone installations using Ingressus.

Interlocking

This is also known as a mantrap and is only applicable for installations of Ingressus II with 2 doors. With the setting, Ingressus will detect either door closed tightly before allowing user to verify to unlock the other door. Door sensor must be installed at each door to monitor the door open-close activities.

1.	Click Interlocking from the left panel.
2.	Click Add Zone.
3.	Name the Zone, e.g.: server rooms.
4.	Click Add Device.
5.	Select Ingressus from the list.
6.	Name the Ingressus controller.
7.	Press Edit at the Details panel.

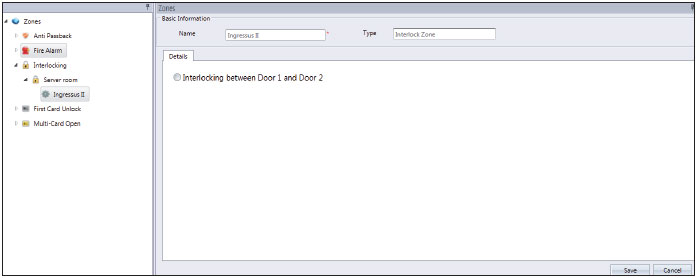

8.	Check Interlocking between Door 1 and Door 2 to activate the feature.
9.	Press Save to save settings.
10.	Sync settings to the Ingressus controller.
