FingerTec AC100-R is the latest fingerprint time attendance system equipped with RFID Proximity Card functions. This new FingerTec AC100-R is intended to smooth user integration from proximity card system to fingerprint system while at the same time minimize the cost of system integration with the use of existing cards, particularly in organizations with mass employment. For users who opt to utilize firm but flexible time attendance monitoring and reporting, the use of the multi-verification methods of FingerTec AC100-R is highly recommended. Apart from providing higher storage capacity for user templates and transaction data as compared to the standard reader, the FingerTec AC100-R offers improved verification speed and provides alternative reading techniques for users with poor fingerprints.

The combination of fingerprint and card system in FingerTec AC100-R spells convenience to both system administrator and fingerprint system users. No matter how you choose to get verified, FingerTec AC100-R has the solution for you.

FEATURES & BENEFITS

Multi-Verification Methods
One-to-One, One-to-Many, Card with fingerprint, Card with Password and Card only.

Maintenance of existing RFID card
The existing RFID cards may be maintained to reduce deployment cost that could be significant in mass labors system. On top, the staff ID may be maintained with additional fingerprint authentication feature.

Sizeable storage capacity
Reader can contain a max of 2,800 fingerprint templates without using the card function and 65535 cards without using the fingerprint function.

Recommended storage capacity
For combination of fingerprint and card: (1500 fingerprint templates, 65535 cards).

Efficient Recognition System
Accurate identification of users and fast template verification.

Connections Availability
TCP/IP, RS232 and RS485.

Easy & Economical Integration
The availability of RFID Proximity Card function provides smooth integration from existing card system to fingerprint system.

Powerful Time Attendance Software
TCMS V2, Time Control Management System software is bundled with every reader to provide effective human resource data management.

Layout Plan

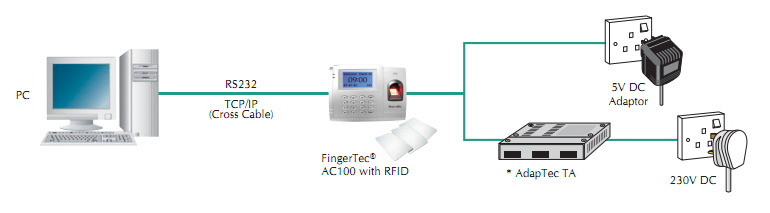

Layout Plan (Standalone)

for illustration only, * optional

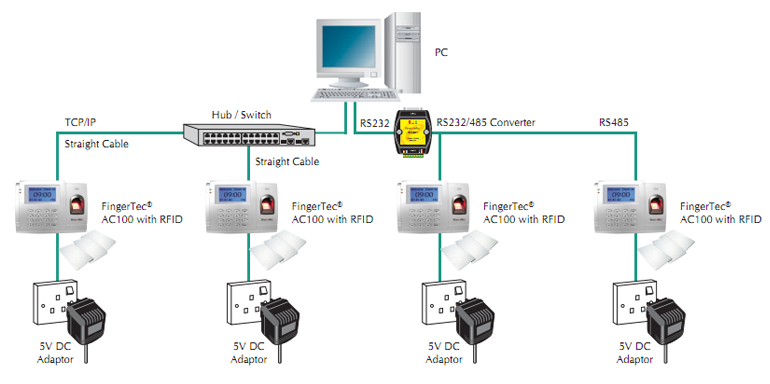

TCP/IP or RS485 Environment

for illustration only,

Specifications

SURFACE FINISHING	Acrylonitrile Butadiene Styrene (ABS)
TYPE OF SCANNER	Optical
PRODUCT DIMENSION (L X W X H), mm	195 x 48 x 144
STORAGE
• Fingerprint templates	ax 2,800 (reader), Max 65535 (card)
• Transaction	120,000
ENROLLMENT & VERIFICATION
• Methods	Fingerprint (1:1, 1:N), Card
• Recommended fingerprint per user ID	2
• Fingerprint placement	Any angle
• Verification time (sec)	< 2
• Card per user ID	10
• Reading distance, mm	~ 50
• FAR (%)	< 0.0001
• FRR (%)	< 1
COMMUNICATIONS
• Method	TCP/IP, RS232, RS485
• Baud rates	9600, 19200, 38400, 57600
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz	Yes
OPERATING ENVIRONMENT
• Temperature (°C)	0 ~ 45
• Humidity (%)	20 ~ 80
• Power input	DC5V 2A
TIME ATTENDANCE
• Work codes	Yes
MULTIMEDIA
• Voice	Yes
VOICE / DISPLAY LANGUAGE (TERMINAL)	English (Standard) / (Upon Request - Chinese / Spanish / Turkish/ Thai/ polish/ Korea/ Romanian/ Portuguese/ Dutch/ French/ Slovenia/ Indonesian/ Russian/ Greek/ Hebrew/ Arabic/ Farsi/ Italian/ Vietnamese/ Czech/ Bulgarian
SOFTWARE LANGUAGE	English (Standard) / (Upon Request - Chinese / Spanish / Thai / Portuguese / French / Indonesian / Russian / Arabic / Farsi / Italian / Vietnamese )

*N/A: Not applicable

Packaging
Dimension (mm): 300(L) x 225(H) x 90(W)
Weight: 1.5kg
