Fast Paced & Versatile
AC900 gives you an option of identity verification through finger print scanning or password. On top of that, fingerprint verification is done within a second!
Precise Recognition
AC900 uses minutiae matching technology that ensures only enrolled users are granted access.
Integrateable System
Have a different existing system in your organization? No problem, AC900’s user data can be exported to several formats for you to integrate with your current system.
Eliminate Buddy Punching
The weakness with the clock-in card system is that ‘buddy punching’ can occur where one employee can clock in the time for another employee if any of them are late. Eliminate this occurrence by using the unique perindividual fingerprint as a clock-in card!
Any more user-friendly, and AC900 will have to speak to you. AC900 has a simple-to-use user interface and keypad.
Let your staff experience more independence by reporting their whereabouts via our workcodes feature.
Manage Your Data Easily
Administration is easy with the Ingress software application. Ingress allows you to remotely manage door activity of all con- nected terminals, while containing time attendance functions for attendance monitoring.
Value for Money
This model was designed to be economical so that you are able to implement FingerTec solutions at a lower cost. We believe that when it comes to security, there should be no compromise.

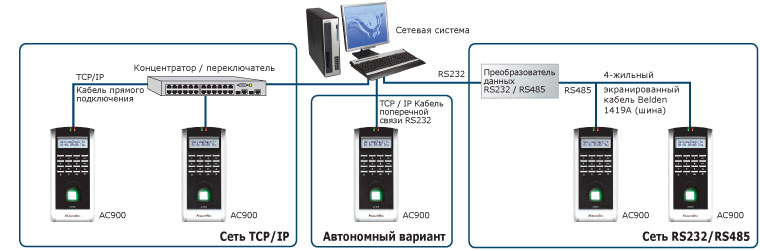

Layout Plan
Layout Plan (Standalone)
for illustration only,

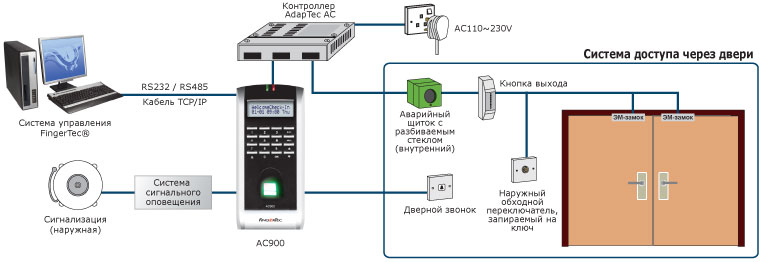

Installation Diagram
for illustration only,
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Optical fingerprint scanner
MEMORY 128MB flash memory and 32MB SDRAM
ALGORITHM BioBridge VX 9.0/VX10.0
DIMENSION (L X W X H), mm 91 x 40 x 190
• Fingerprint templates 1500
• Transactions 100000
• Methods Fingerprint (1:1, 1:N), password
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) <1
• FAR (%) < 0.0001
• FRR (%) < 1
• Method TCP/IP, RS232, RS485
• Baud rates 9600, 19200, 38400, 57600, 115200
• Wiegand 26-bit output
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC12V 3A
• Work codes Yes
• Display Black and white
• EM lock driving output DC12V3A / Relay output
• Alarm output NO
DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Malay, Indonesian, Chinese (Traditional), Chinese (Simplified), Thai, Vietnamese, Korean, Spanish, Portuguese (Portugal), Portuguese (Brazil), Polish, French, Russian, German, Italian, Turkish, Persian, Slovak, Greek, Dutch, Hebrew, Romanian, Bulgarian. Other languages are available upon request.
*N/A: Not applicable
1. With AdapTec
Dimension (mm): 245(L) x 90(W) x 225(H)
Weight: 1.73kg
1. Without AdapTec
 Dimension (mm): : 225(L) x 72(W) x 168(H)
 Weight: 0.73kg
