| Eliminate Buddy Punching The weakness with the clock-in card system is that ‘buddy punching’ can occur where one employee can clock in the time for another employee if any of them are late. Eliminate this occurrence by using the unique per-individual fingerprint as a clock-in card! |
| Easy Data Management All you need is a USB flash disk to transfer transaction logs to your computer. It is that easy! |
| Manage Attendance Data Online TimeTec Cloud solution centralizes attendance data on a secured cloud server for easy management, monitoring and auditing, It is available online at a minimal subscription cost of USD2 per user monthly only. |
| Full Colour Screen This model comes with a full colour TFT screen. Display pictures corporate advertisements, screen savers and much more on the colour screen of the terminals. |
Workcodes
|
| Short Message Display Alert your staff by personalizing a short message to be displayed at the terminal when they verify. |
| User-Friendly Icons Complete with configuration icons, the interface in TA100C couldn’t be more user-friendly. |
| Value for Money This model was designed to be economical so that you are able to implement FingerTec solutions at a lower cost. We believe that when it comes to security, there should be no compromise. |

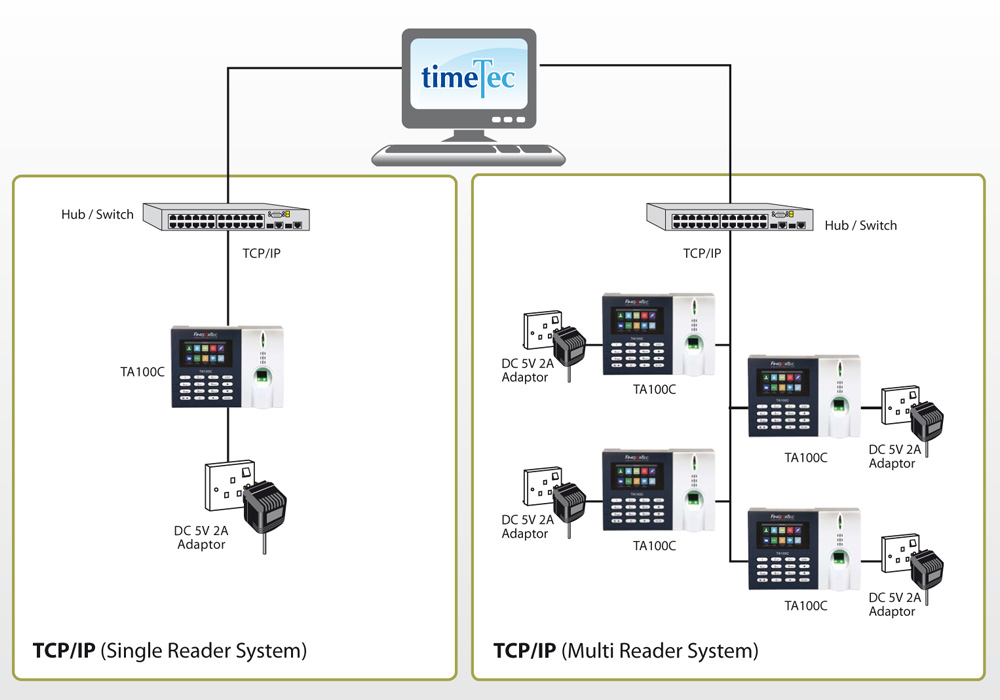

| Layout Plan |
| for illustration only |
| MODEL | TA100C | |
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) | |
| TYPE OF SCANNER | Non coated optical scanner | |
| MICROPROCESSOR | 800 MHz | |
| MEMORY | 256MB flash memory & 128MB SDRAM | |
| ALGORITHM | BioBridge VX 9.0 / BioBridge VX 10.0 | |
| DIMENSION (L X W X H), mm | 190 x 52 x 140 | |
| STORAGE | ||
| • Fingerprint templates | 8000 | |
| • Cards | N/A | |
| • Transactions | 200000 | |
| ENROLLMENT & VERIFICATION | ||
| • Methods | Fingerprint (1:1, 1:N) & password | |
| • Recommended Fingerprint per user ID | 2 | |
| • Fingerprint placement | Any angle | |
| • Verification time (sec) | < 1 | |
| • FAR (%) | < 0.0001 | |
| • FRR (%) | < 1 | |
| CARD TECHNOLOGY | ||
| • RFID: 64-bit, 125kHz, RF output power (EN300-330) | N/A | |
| • MIFARE: MFIS50/S70, 13.56MHz | N/A | |
| • HID: HID 1325, 26-bit, 125kHz | N/A | |
| COMMUNICATIONS | ||
| • Method | TCP/IP, USB disk (Optional RS232, RS485, WiFi & GPRS) | |
| • Baud rates | 9600, 19200, 38400, 57600, 115200 | |
| OPERATING ENVIRONMENT | ||
| • Temperature (°C) | 0 ~ 45 | |
| • Humidity (%) | 20 ~ 80 | |
| • Power input | DC5V 2A | |
| TIME ATTENDANCE | ||
| • Siren | Built-in and External | |
| • Work codes | Yes | |
| MULTIMEDIA | ||
| • Voice | Yes | |
| • Display | 3.0” 65k color TFT screen | |
| • Short messaging | Yes | |
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Malay, Indonesian, Chinese Traditional / Simplified, Cantonese, Thai, Vietnamese, Spanish, Portuguese (Portugal), Portuguese (Brazil), French, Russian, German, Turkish, Persian. Other languages are available upon request. | |
| *N/A: Not applicable |
 |
| Packaging Dimension (mm): 245(L) x 90(W) x 225(H) Weight: 1kg |
 |
 |
 |
 |
 |
 |
 |
