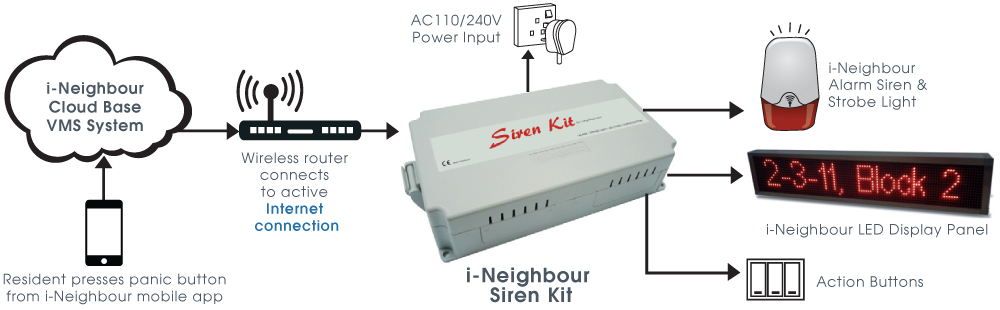

INSTALLATION DIAGRAM *for ilustration only
SPECIFICATIONS
HARDWARE • Surface Finishing Acrylonitrile Butadiene Styrene (ABS)
• Dimension, mm 212 x 49 x 114
POWER SUPPLY • Power Input AC 110 ~ 240V (Universal Input)
• Backup power UPS or 12VDC rechargeable battery
SIREN KIT I/O • Input 4 x Digital Input
• Output 12VDC 1A strobe sight, 12VDC 3A siren,5A Dry contact free relay
RASPBERRY PI CONTROLLER • Processor 1.2 GHz 64bit Broadcom BCM2837, 1GB RAM
• WiFi BCM43438 - Single-Chip IEEE 802.11 b/g/n MAC/Baseband/Radio
• Bluetooth BCM43438 - Bluetooth Low Energy
• USB 4x USB 2.0
• GPIO 40 pin
• HDMI Full size HD output
• Power Input 5.1 VDC 2.5A
• Supported Accessories Alarm Siren and Strobe Light: Amplifies alert during emergencies.
HDMI Output: Provides the option to display the residents’ addresses on other devices such as computer monitor instead of LED panel.
Action Buttons: Allows 3-button pack for security guard to trigger and to stop the siren kit manually, as well as acknowledge the receipt of emergency report.
PACKAGING  Dimension (mm) : 246 (L) x 154 (W) x 55 (H)
Weight : 0.65 kg
