| integrated with TimeTec Security App |
| TimeTec proudly presents the new paradigm shift in access control with the use of smartphone App for turnstile
entry. The TimeTec BLE-2 is designed to be an intermediary device between a smartphone App and a turnstile
controller to provide patrons with secure and easy access to and from a space or a building. Access card credential
is history with TimeTec Security because this solution is using smartphone as credential by using Bluetooth Low
Energy (BLE) technology to get encrypted access activities of the turnstile gates in real time for convenience,
transparency and extra security. Use your smartphone to access your workplace with ease. Pair TimeTec BLE-2 with TimeTec Security App to only allow entries and exits of authorized personnel into and from a restricted space. One TimeTec BLE-2 can be connected to a single turnstile only and system administrators of a company or a building must sign up with TimeTec Security and create an individual account for all patrons and manage all the installed TimeTec BLE-2s. After installing the TimeTec BLE-2 into a turnstile, the system administrator must activate the unique ID of the BLE-2 from a web portal and configure its accessibilities for all patrons. For the patrons to determine the list of turnstiles accessible to them, they need to install and sign in to TimeTec Security App, and through the App, the authorized party can access the turnstiles using voice or a tap on the screen. TimeTec Security turns your smartphone into a smart access card, fast and affordably. |
|
Low initial investment because it can be integrated with the existing RFID turnstill to save the overall cost. |
|
The implementation is based on Bring Your Own Device (BYOD) concept, further reducing total investment & maintenance cost. |
|
The system provides a comfortable reading distance between the BLE-2 and a smartphone to provide users with convenience. |
|
Users do not have bring another card with them to carry aroun. |
|
The transaction process is quick and convenience, eliminating possible congestion at the entry/exit points on peak hours.
|
|
The system can be integrated with surveillance cameras to retrieve visual evidence of every entry and exit. |
|
There is no way to lost the access credential because it is always on your smartphone that you carry with you at all times. |
|
The credential is not transferable or exchanged in any circumstances. |

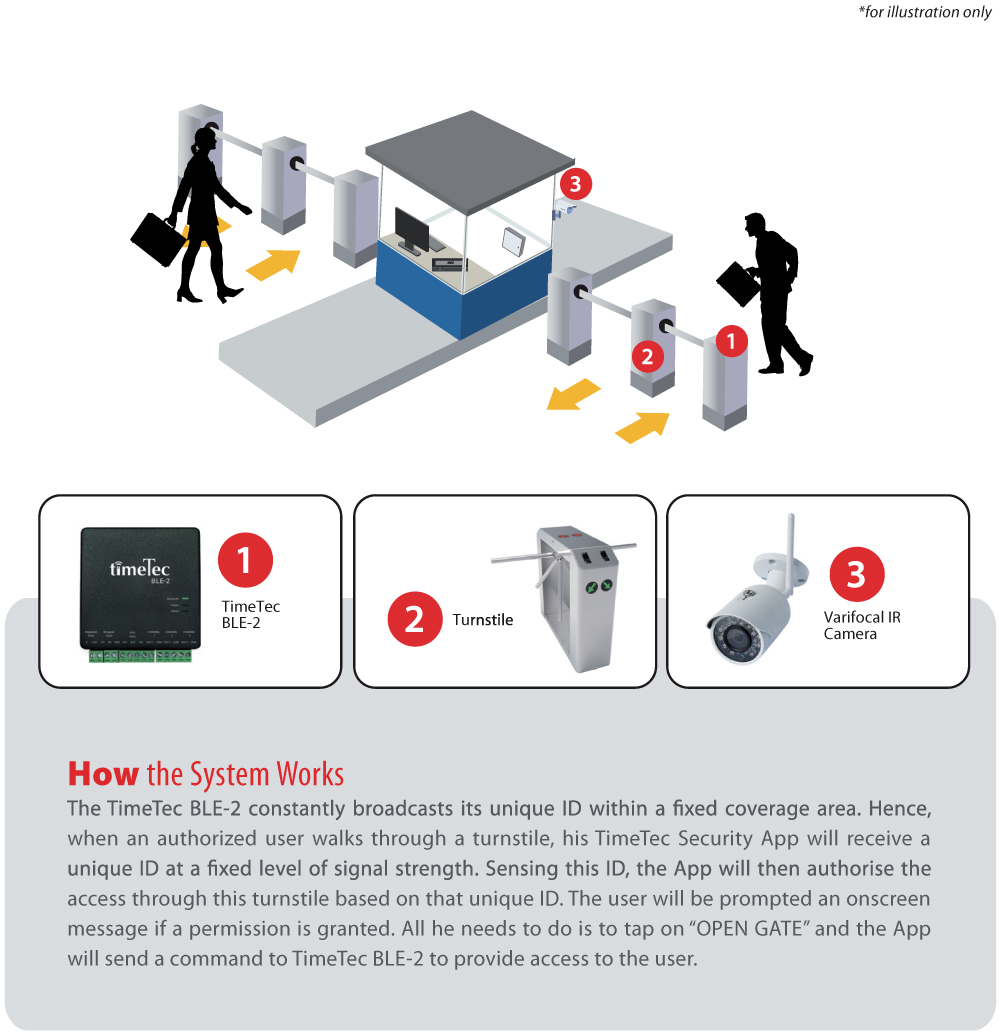

| SYSTEM DIAGRAM |
| SPECIFICATIONS | ||
| MODEL | TimeTec BLE-2 | |
| CHANNELS | 2 FORM C Relay output, NO/NC selected via jumper Wiegand 26-bit input | |
| GATES | Max 2 | |
| DIMENSION (MM) | 85 (L) x 96 (W) x 33 (H) | |
| POWER INPUT | 9 ~ 24 VDC | |
| WORKING TEMPERATURE °C | 0-45 | |
| HUMIDITY (%) | 20-80 | |
| CARD STORAGE | 30,000 | |
| COMMUNICATION | Bluetooth Low Energy (BLE) 4.2, Wiegand 26-bit input | |
| BLUETOOTH ENCRYPTION | 64-bit TmeTec Proprietary | |
| EFFECTIVE DISTANCE (M) | Max 10 m (Adjustable) | |
| LED INDICATOR | Yes | |
| TRANSACTION RECORDS | Unlimited, stored in cloud server | |
| EVENT CAPACITY | Unlimited, stored in cloud server | |
| MOBILE OS | Android 4.0.2 and above, iOS 8.0 and above | |
| APP & CLOUD | TimeTec Security, TimeTec Access, TimeTec VMS, i-Neighbour | |
| LANGUAGE (APP & CLOUD) | English, Arabic, Malay, Indonesian, Spanish, Chinese Simplified,
Chinese Traditional, Thai, Turkish, Vietnamese.
Other languages are available upon request. |
|
| NOTE: Specifications are subject to change. Check https://product.fingertec.com for latest product information. |
| Packaging Dimension (mm) : 173 (L) x 60 (W) x 135 (H) Weight (kg) : 0.3 |
