Reliability
Besides high quality electrical components, SUS304 stainless steel casework ensures long-lasting durability.

Aesthetic Design
No exposed screws, safer for users. Special designed case shape, sleek & compact and user-friendly for accessing.

Mobile Access
With TimeTec BLE 2 built-in, it allows authorized users to access TimeTec Flap Turnstile by using their smartphone via TimeTec Access App/TimeTec VMS App/ i-Neighbour App

Easy Integration
TimeTec Smart Flap Turnstile FTS2100B & 2200B come standard with electrical interface design to ease the integration with third-party device.

Safety & User-Oriented Design
Barriers retract automatically during emergencies and during power outages using the batteries installed.



Anti-Tailgate
The mechanical design of flap turnstile allows only the passage of a single person at a time, effectively curbing tailgate activities and improving security.

Optional Biometrics Recognition Access
Comes standard with RFID card access besides mobile access, and can be integrated with fingerprint and face recognition modules as optional access credentials upon request.

Easy Operation
It is embedded with an LCD panel on the flap barrier control board to ease operation.

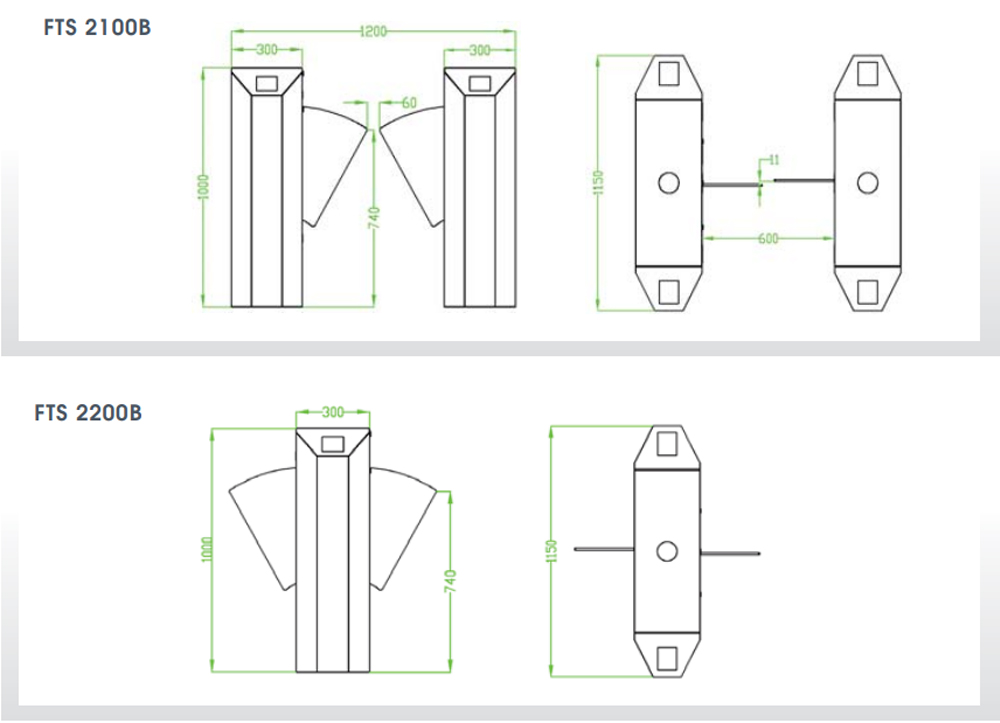

Dimensions (mm) * for illustration only

SPECIFICATIONS
MODEL
POWER SUPPLY AC 100 ~ 120V/200 ~ 240V, 50/60Hz
OPERATING TEMPERATURE -28 °C- 60 °C
OPERATING HUMIDITY 5%~80%
WORKING ENVIRONMENT Indoor/outdoor (if sheltered)
SPEED OF THROUGHPUT RFID/ Bluetooth* : Maximum 42/ minute
* Assuming users have already initiated the mobile app
LANE WIDTH(MM) 600
FOOTPRINT(MM*MM) 1200*1150 840*1150
DIMENSIONS(MM) L=1150,W=300,H=1000
DIMENSION PACKING(MM) L=1480,W=410,H=1110
NET WEIGHT(KG) 119 69
WEIGHT WITH PACKING(KG) 157 98
LED INDICATOR Yes
CABINET MATERIAL SUS304 Stainless Steel
LID MATERIAL SUS304 Stainless Steel
BARRIER MATERIAL Acrylicl
BARRIER MOVEMENT Retracting
EMERGENCY MODE Yes
SECURITY LEVEL Medium
MCBF 2 million
NOTE: Specifications are subject to change without prior notice.
