Reliability
Besides high quality electrical components, SUS304 stainless steel casework ensures long-lasting durability.

Aesthetic Design
No exposed screws, safer for users. Special designed case shape, sleek & compact and user-friendly for accessing.

Mobile Access
With TimeTec BLE-2 built-in, it allows authorized users to access TimeTec Swing Turnstile by using their smartphone via TimeTec Access App/TimeTec VMS App/ i-Neighbour App.

Easy Integration
TimeTec Smart Swing Turnstile STS2100B & 2200B come standard with electrical interface design to ease the integration with third-party device.

Safety & User-Oriented Design
Barriers retract automatically during emergencies and during power outages using the batteries installed.



Anti-Tailgate
The mechanical design of flap turnstile allows only the passage of a single person at a time, effectively curbing tailgate activities and improving security.

Optional Biometrics Recognition Access
Comes standard with RFID card access besides mobile access, and can be integrated with fingerprint and face recognition modules as optional access credentials upon request.

Cost Effective
TimeTec Smart Swing Turnstile is designed with contactless feature for accessing as well as being cost effective for high traffic operation.

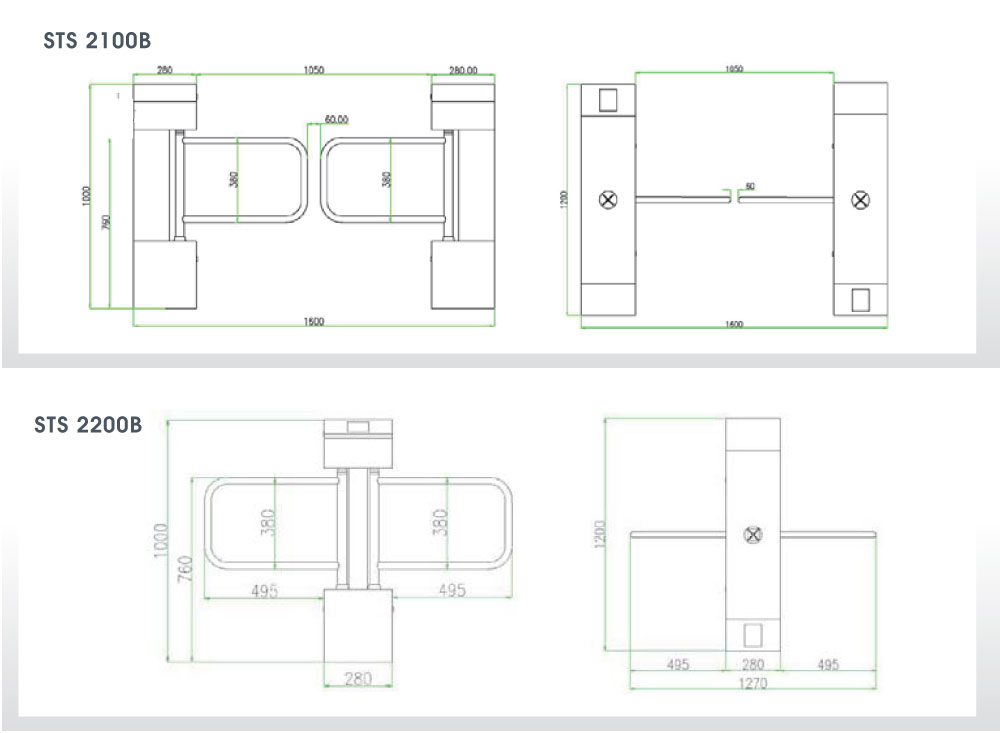

Dimensions (mm) * for illustration only

SPECIFICATIONS
MODEL
POWER REQUIREMENTS AC 220V/110V, 50/60Hz                                   AC110V/220v,50/60HZ
OPERATING TEMPERATURE -28 °C- 60 °C
OPERATING HUMIDITY 5%~80%
WORKING ENVIRONMENT Indoor/Outdoor
SPEED OF THROUGHPUT RFID/ Bluetooth* : Maximum 42/ minute
* Assuming users have already initiated the mobile app
LANE WIDTH(MM) 1,050
FOOTPRINT(MM*MM) 1610*1200 1270*1200
DIMENSION(MM) L=1200,W=280,H=1000
PACKAGE DIMENSION(MM) L=1310,W=800,H=1100                                   L=1310,W=420,H=1100
NET WEIGHT(KG) 118 68
GROSS WEIGHT PACKAGE(KG) 160 96
LED INDICATOR Yes
CABINET MATERIAL SUS304 Stainless Steel
LID MATERIAL SUS304 Stainless Steel
BARRIER MATERIAL SUS304 Stainless Steel
BARRIER MOVEMENT Swing
EMERGENCY MODE Yes
SECURITY LEVEL Medium
MCBF 2 million
NOTE: Specifications are subject to change without prior notice.
