Reliability
Stainless steel frames, high quality electrical components, and alloy steel tripod hub to prevent mechanical wear. Patented compact mechanism ensures the smooth flow of the inner lubricant.

Aesthetic Design
No exposed screws, safer for users. Special designed case shape, sleek & compact and user-friendly for accessing. Pictogram indicators are built-in to show directional and access permission.

Mobile Access
With TimeTec BLE 2 built-in, it allows authorized users to access TimeTec Tripod Turnstile by using their smartphone via TimeTec Access App/TimeTec VMS App/ i-Neighbour App.

Easy Integration

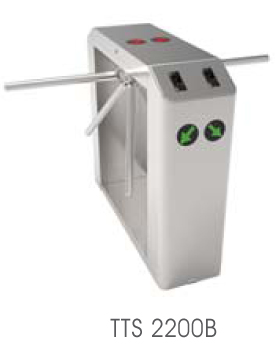

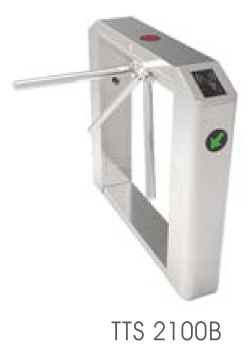

TimeTec Smart Tripod Turnstile TTS2100B & 2200B come standard with electrical interface design to ease the integration with third-party device.

Safety & User-Oriented Design
When power off during emergency, automatic arm drop mechanism will be activated. Electromagnets for lock are only used when activated. Standby mode when idle.



Anti-Tailgate
The mechanical design of Tripod Turnstile allows only the passage of a single person at a time, effectively curbing tailgate activities and improving security.

Optional Biometrics Recognition Access
Comes standard with RFID card access besides mobile access. TTS 2100B & 2200B can be integrated with fingerprint and face recognition modules as optional access credentials upon request.

Cost Effective
TimeTec Smart Tripod Turnstile would be more cost effective when compared with Flap and Swing Turnstile for cost concerned communities and companies to reduce investment.

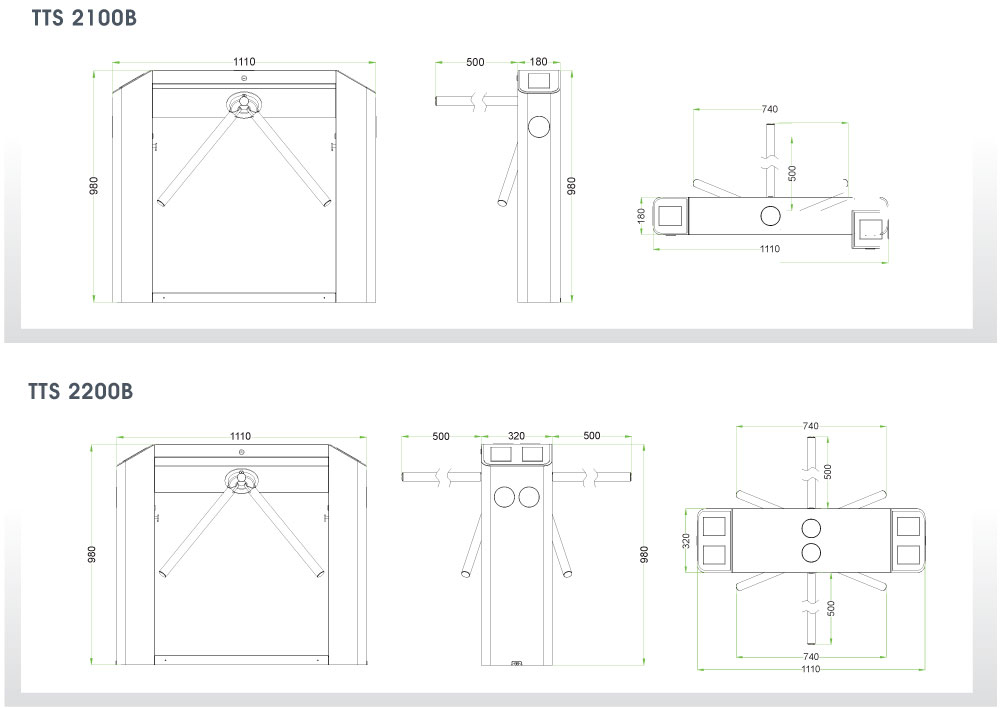

Dimensions (mm) * for illustration only

SPECIFICATIONS
MODEL
POWER SUPPLY AC 220V/110V, 50/60Hz
OPERATING TEMPERATURE -28 °C- 60 °C
OPERATING HUMIDITY 5%~85%
WORKING ENVIRONMENT Indoor/Outdoor(shelter)
RATED POWER 60W 120W
FLOW RATE 25- 48 passage/minute
CASEWORK MATERIAL SUS304
PICTOGRAM INDICATION Yes
CONTROL SYSTEM Input controlled by dry contact
EMERGENCY BUTTON INPUT Yes
OPERATIONAL VOLTAGE 24VDC
PASSING DIRECTION Single/ Bi-Directional
EMERGENCY Automatic arm drop when power off
COMMUNICATION RS485, TCP/IP (Need access Controller)
ACCESS CREDENTIAL RFID Card & Bluetooth (Fingerprint & face recognition as optional)
DIMENSION 111×98×18 + arm length 50 111×98×32 + arm length 50
PACKAGE DIMENSION, CM 120×108×28 120×108×44
NET WEIGHT 45KG 65KG
GROSS WEIGHT (PACKAGE) 53KG 75KG
OPTIONAL FUNCTION Alternative material or shape, third-party access control integration, ticket system integration, passage counter Alternative material or shape, third-party access control integration, ticket system integration, passage counter
NOTE: Specifications are subject to change without prior notice.
