Readability of RFID signal from a long range thus maintaining a smoother access at the guardhouse.

No more winding down of window to flash card which will cause wetness during rainy days or exposure to robbery threats for the drivers.

Fast and capable of reducing traffic congestion during peak hour.

Current long-range RFID barrier system can be maintained and integrated with i-Neighbour smart community system if the management still wanted to keep the system.

All entry and exit images can be recorded for visual evidence if installed together with surveillance cameras.



Affordable price to maintain the durable long range UHF card.

RFID tear torn sticker’s access credential is not transferable for better safety measure.

Your vehicle would be safe at home when you are away as residents are allowed to set their abroad duration through i-Neighbour account in order to temporary disable the card access.

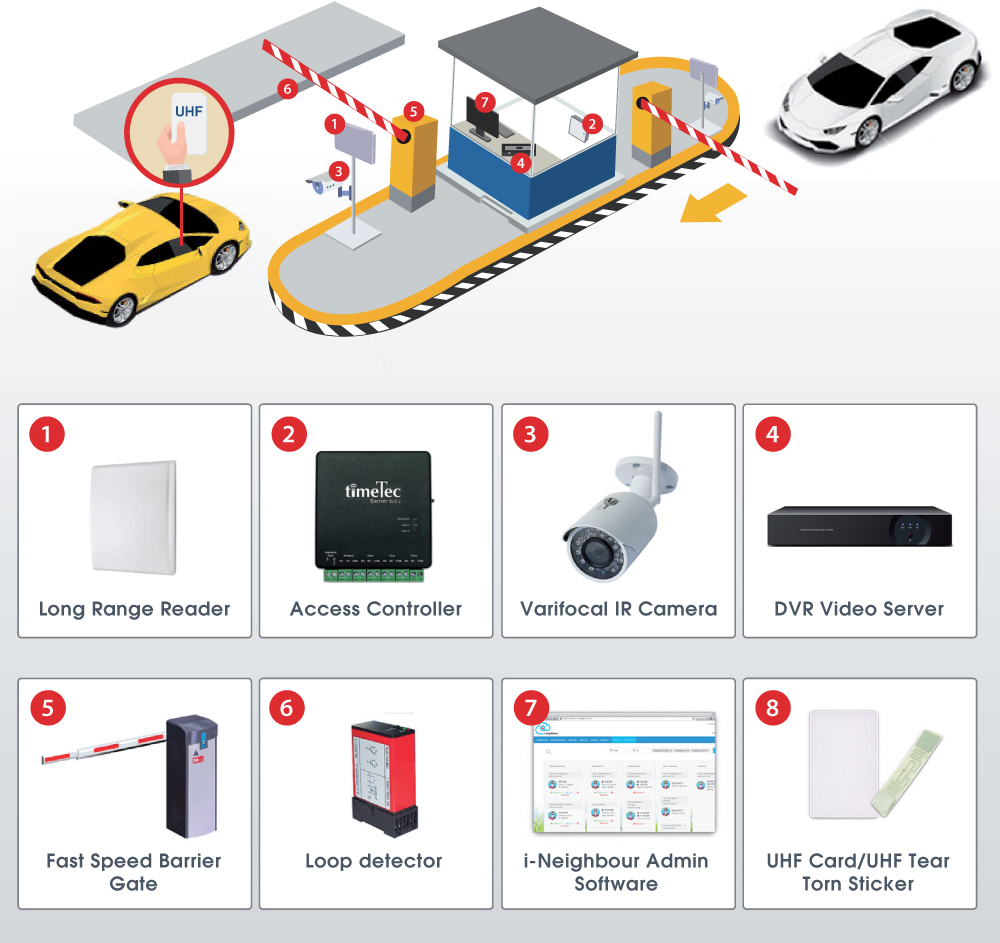

Installation Diagram * for illustration only

Long Range UHF RFID Reader reads the registered microchip built-in the tear-torn sticker/RFID card inside the vehicle from afar and the barrier gate is then triggered to open ahead of time. As such, vehicles can enter without the need to fully stop for flashing of card at the reader. This allows for smoother traffic flow and greatly reduces traffic jam during peak hours.
SPECIFICATIONS
Model BLE-2
Channels 2 FORM C Relay output, NO/NC selected via jumper Weigand 26-bit input
Dimension (mm) 100 (L) x 231 (W) x 62 (H)
Weighing (kg) 0.6
Power input 9 - 24 VDC
Working temperature °C 0-45
Humidity (%) 20-80
Card Storage 1,000
Communication Bluetooth Low Energy (BLE) 4.2, Weigand 26-bit input
Effective Distance (m) 5m for Mobile App, 10m for Long Range Antenna
LED indicator Yes
Transaction records Unlimited, stored in cloud server
Event capacity Unlimited, stored in cloud server
Mobile OS Android 4.0.2 and above
iOS 8.0 and above
App & Cloud TimeTec VMS, TimeTec Access and i-Neighbour
Language (App & cloud) Arabic, Chinese Simplified, Chinese Traditional, English, Hindi, Indonesian, Malay, Nepali, Spanish, Thai, Turkish, Vietnamese.
Other languages are available upon request.
NOTE: Specifications are subject to change without prior notice.

Packaging
Dimension (mm) : 173 (L) x 60 (W) x 135 (H)
Weight : 0.3kg
