FEATURES

• ABS surface finishing for better durability against weather conditions and humidity
• IP 54 rating, suitable for outdoor installation
• Conformal coated electronic circuit board as second protection against water
• 2 ways tamper switch protection to prevent illegal bypassing
• LED indicator to ease diagnosis and troubleshooting
• Backup battery included in case of power failure

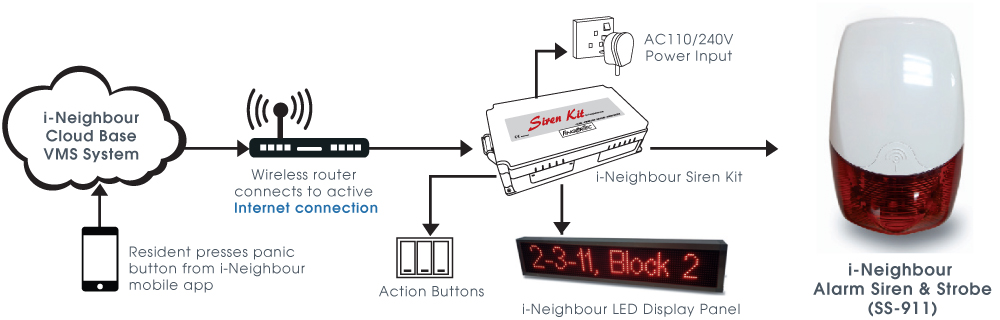

INSTALLATION DIAGRAM *for ilustration only
SPECIFICATIONS
SURFACE FURNISHING ABS
OPERATING POWER INPUT 12 ~ 15VDC 1.2A
SIREN OPERATING CONSUMPTION 12VDC 220mA
STROBE LIGHT OPERATING CONSUMPTION 12VDC 180mA
SIZE (MM) 265 x 170 x 65
WEIGHT (KG) 0.65
SIREN VOLUME 120±3db@1m
STROBE LIGHT FLASH RATE ≥ 70 times/min
TAMPER PROTECTION 2
IP RATING IP-54
BACKUP BATTERY 12v1.2A sealed lead battery
CERTIFICATE CE, EMC
