LPR Camera is an IP camera designed to capture car license plate numbers for processing within the TimeTec Smart LPR System. A credible LPR Camera must first be equipped with a fast shutter speed in order to lessen motion blur as the camera has to deal with a vehicle’s velocity. Furthermore, in view of the fact that velocity varies from one vehicle to another, a camera with a fast shutter speed of at least 1/1000 sec is therefore a must. Additionally, it is also advisable that LPR cameras have features that reduce glare and reflected light in order to produce a clearer image i.e. eclipse function. Another important feature for LPR Camera is night vision capability, which allows the camera to operate within areas of low light or in total darkness (0 LUX) as it operates within the infrared spectrum. Therefore, in order to obtain night vision capability, a LPR Camera must have diodes around the camera that emit infrared light and also a special chip placed inside the camera which captures this infrared radiation and subsequently, convert the radiation into a visible picture. Get the right LPR Camera to ensure better license plate images for TimeTec Smart LPR System.
TECHNICAL FEATURES
• 2.1 megapixel SONY Exmor CMOS sensor, progressive scan, Wide Dynamic Range (WDR), low illumination and high definition.
• Embedded intelligent algorithms for best viewing of license plate on day and night alike.
• ONVIF protocol, GB28181 protocol, compatible with main NVR manufacturers like Hikvision, Dahua and etc.
• Highlight compression function (HLC) available. The camera can autoshift from daytime setting mode to night time setting mode with good anti-headlights night effect.
• Wide Dynamic Range (WDR) adjustable
• Cater from 1 up to 3 lanes surveillance.
• Shutter speed adjustable from a standard mode to 6 traffic modes i.e. 30km/h, 60km/h, 90km/h, 120km/h, 150km/h and 180km/h.
• Easy settings without requiring a professional assistance nor a client software. Manual settings of all functions are available on the control board inside the camera where you can connect to a NVR or a computer and playback video, pause or view the license plates clearly.
• Equipped with varifocal lens for focal length changes of f=6-22m.
• 1.8 inch LCD display menu to adjust LED luminance value, HLC intensity, AGC (Automatic Gain Control to artificially increase the quality of images produced by an IP security camera in low light) value and current traffic mode.
• 6 pieces of white bright lights with a night vision distance of less than 20 meter.
• Waterproof IP66 and comes with a high quality double shield housing, FAN option.
• Support auto snapshot of number plates when connected with an inductive loop. An inductive loop can detect vehicles passing or arriving at a certain point.
• Snapshots of JPEG images are stored in TF card (max 32gb). Note: TF card is not included in the package.
• Installed with double front glass to avoid light halo and spot when the LED is on.
• IR illuminator option for producing black and white image at night.

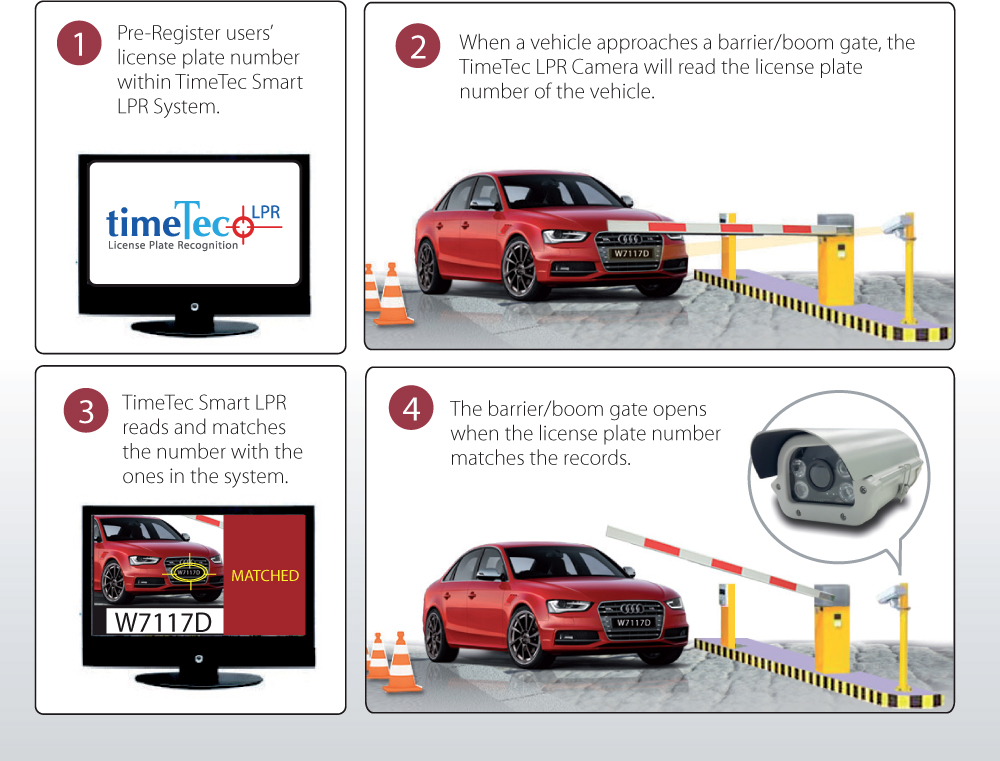

THE FLOW OF TIMETEC LPR SYSTEM
SPECIFICATIONS
CAMERA TYPE IP Camera
SYSTEM Embedded RTOS design
CAMERA
• Effective Pixels 3.0 Mega Pixels, Main stream:2048*1536;1920*1080, Sub stream:704*576
• Frames Rates PAL:20fps(2048*1536), 25fps(1920*1080),NTSC:20fps(2048*1536), 30fps(1920*1080)
• Image Sensor 1/3 Aptina CMOS Sensor,3.5 Megapixel resolution (2304H*1536V)
• DSP Dual core 32-bit DSP, (A5S88)
• Min. Illumination Color 0.01Lux/F1.2, B/W 0.001 Lux/F1.2
• Min. Illumination DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc
VIDEO
• Compression H.264 Main profile
• Stream Support dual stream,AVI format
• Bit Rate Support 0.1M ~8Mpbs bit rate adjustable
• Frame Rates Support 1~30fps adjust
AUDIO
• Input and output 1ch input( micphone), 1ch output( Speaker&micphone) Optional
• Compression G.711 compression,support two-way audio intercom,support audio & video synchronized output
ALARM
• Types Motion Detection, Video Blind , Video Loss
NETWORK
• WEB Browser Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)
• Smart Phone Mobile remote Monitoring (iPhone,Android,Windows Mobile,BlackBerry,Symbian)
• CMS Software Uniform CMS Software(multiple devices management system)
•Cloud P2P www.p2pipc.net ,MYEYE platform and other program,Offer SDK
• Network 1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
• ONVIF Support (ONVIF 2.0)
• POE Support(optional)
• WIFI N/A
GENERAL
• Language English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese & Turkish
• IR Cut Filter Set of double light switch IR-CUT filter
• Lens Mount Varicoal Lens 9-22mm (3MP)
• Infrared Luminary 4 pieces Array White light LED
• Infrared Wavelength More than 30 M
• Waterproof Criterion IP 66
• I/O Connector 1*DC Connector ,1* RJ45(10/100M Network)
• Supplied Voltage DC12V/PoE(802.3af/820.3at)
• Power Consumption IR On: 600mA max., IR Off: Less than 200mA
• Working Enviroment -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
