3 Unlocking Credentials
Use fingerprint, mechanical key or your smartphone with Bluetooth connection, ML-10B supports all
3 User Group Types
Gain better access control management with ML-10B User Group types, that clearly identifies the admins, regular users and temporary users
User Capacity
Register as many users through a smartphone but for fingerprint, the capacity is limited to 10 admins, 60 regular users and 20 temporary users per door at a time.
Normally Open Type
Set the lock to Normally Open status to cater for offices or areas with regular visitor access
Optimal Battery Life
Only 4 AA alkaline batteries required for over 6000 accesses, approximately a year of use and it comes with low-battery warning indication.
Reversible Left-Right Open
ML-10B is designed with a sturdy bar latch with interchangeable handle, can be easily switched for left-open or right-open door
Emergency Override Key
In case of emergency like a user losing a smartphone, ML-10B comes with a concealed override key to access a door
Downloadable App
Android and iOS Apps for i-Neighbour and TimeTec Security are available for those who prefer to use smartphone for door access

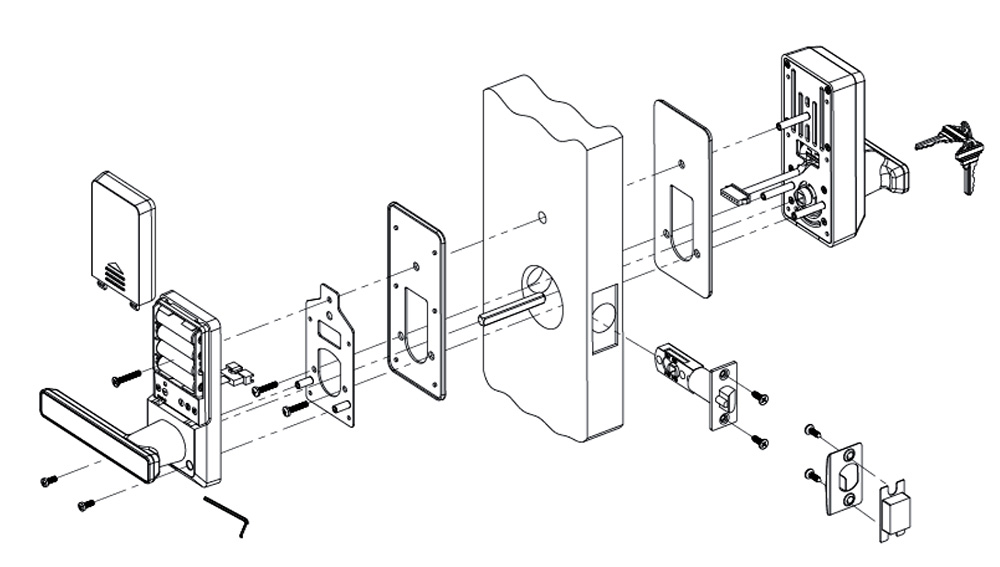

LAYOUT PLAN
Installation Diagram
SPECIFICATIONS
MODEL ML-10B
SURFACE FINISHING Zinc alloy
TYPE OF SCANNER Optical fingerprint scanner
ALGORITHM Biobridge VX 10.0
RESOLUTION OF SCANNER (dpi) 560
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION
(L X W X H), mm		 Front panel: 155 x 69x 35 (with handle)
Back panel: 155x69x25 (with handle)
• Thickness of door, mm 30-38 (optional), 39-46 (standard)
47-54 (standard), 55-60 (optional)
• Door latch type Single tongue (ML-10B)
Double tongue (ML-10DB)
• Inner lock switch Yes
STORAGE
• Fingerprint templates Admin (10), Normal users (60), Temporary users (20)
• Bluetooth Unlimited users for TimeTec Security App & i-Neighbour App
FINGERPRINT & VERIFICATION
• Fingerprint 1: N
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 0.1
BLUETOOTH VERIFICATION
• Communication Bluetooth 4.0
OPERATING ENVIRONMENT
• Temperature (°C) - 20 to – 55
• Humidity (%) 20 ~ 80
• Power input 4 x1.5v AA battery for 6000 operations
• Power consumption – static (µA) < 35
• Power consumption – activity (mA) < 135
• Power consumption – driving (mA) < 200
• Antistatic voltage (V) > 1500
• Low battery warning voltage (V) < 4.5
BACKUP UNLOCK MECHANISM Battery & mechanical key
MOBILE OS Android 4.0.2 and above, iOS 8.0 and above
APP (ANDROID & IOS) TimeTec Security, i-Neighbour
APP LANGUAGE Arabic, Chinese Simplified and Traditional, English, Hindi, Indonesian, Malay, Nepali, Spanish, Thai, Turkish, Vietnamese.
Other languages are available upon request
NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information
*N/A: Not applicable
Packaging
Dimension (mm) : 298 (L) x 123 (W) x 222 (H)
Weight : 3.15kg
