A Variety of Verification Methods
Although its recommended that you use fingerprint verification for more authentic records, the terminal also offers options for you to verify using a card or password, or even a combination of the two.
Shortcut Keys
Program these keys to take you to commonly used functions in just one step. Did we mention that we make things easy?
Manage Attendance Data Online
TimeTec Cloud solution centralizes attendance data on a secured cloud server for easy management, monitoring and auditing, It is available online at a minimal subscription cost of USD2 per user monthly only.
Easy Terminal Syncing
With the option of TCP/IP, RS485 / RS232, USB flashdisk, or even WiFi (upon request), syncing your terminal is even easier than you think!

Supersized Capacity
Get up to 10000 fingerprint templates and 200000 transaction logs – more than enough to fulfill the requirements of an SME.



Short Message Display
Alert your staff by personalizing a short message to be displayed at the terminal when they verify.
Workcodes
Let your staff experience more independence by reporting their whereabouts via our workcodes feature.
Full Colour Screen
This model comes with a full colour TFT screen. Display pictures, corporate advertisements, screen savers and much more on the colour screen of the terminals.

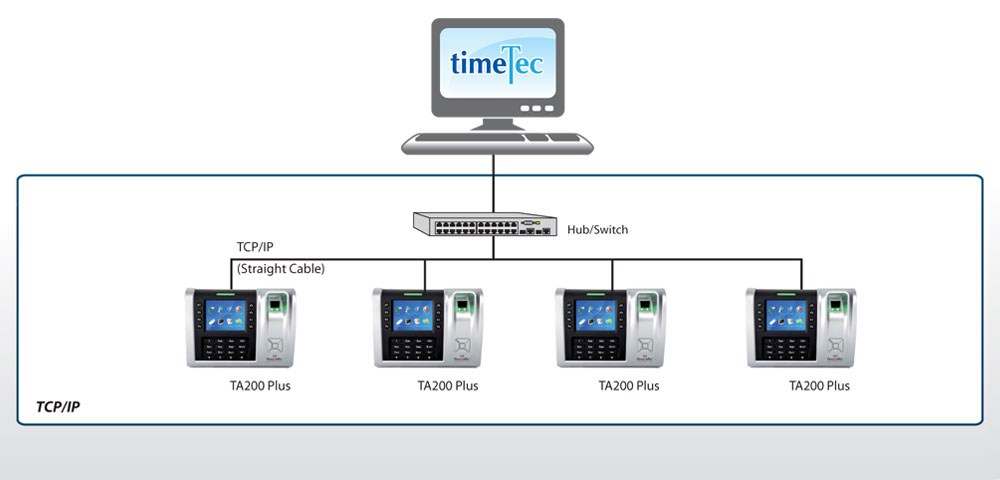

Layout Plan
SPECIFICATIONS
MODEL TA200 Plus
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non coated optical scanner
MICROPROCESSOR 800 MHz
MEMORY 256MB flash memory and 64MB SDRAM
ALGORITHM BioBridge VX 9.0 / BioBridge VX 10.0
DIMENSION (L X W X H), mm 200 x 56 x 160
STORAGE
• Fingerprint templates 10000
• Cards 10000
• Transactions 200000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), Card & Password
• Recommended Fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz Yes
• MIFARE: MFIS50/S70, 13.56MHz Make to order
• HID: HID 1325, 26-bit, 125kHz Make to order
COMMUNICATIONS
• Method TCP/IP, USB flash disk
(Optional: RS232, RS485, POE, WiFi & GPRS. 3G only applicable to non-POE devices)
• Baud rates 9600, 19200, 38400, 57600, 115200
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 5V 2A, DC 5V 2A (POE)
TIME ATTENDANCE
• Siren Built- in (Optional - External)
• Work codes Yes
MULTIMEDIA
• Voice Yes
• Display 3.0” 65k color TFT screen
• Short messaging Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Malay, Indonesian, Chinese (Traditional), Chinese (Simplified), Cantonese, Thai, Spanish, Portuguese (Portugal), Portuguese (Brazil), French, Russian, German, Italian, Turkish, Persian.
Other languages are available upon request.
Packaging
Dimension (mm): 245(L) x 90(W) x 225(H)
Weight : 1.34 kg
