Supersized Capacity
The only thing small about H2i is its size. With 1,500 fingerprint templates and 10,000 card templates, H2i can be hardly defined as “small”.
Simple Enrollment
Enrollment for H2i is done with an administrator card. Just flash the card to enroll or delete a user.

USB Numeric Keypad for Easy Command Input
Plug the USB numeric keypad to H2i to enroll users, delete users, or reset the terminal to its default settings.
User-Friendliness Maintained
H2i, being a minimalist, is still able to communicate to you via its variety of voice commands combined with its multi-colored LED signals.

Easy Data Management
All you need is a USB flash disk to transfer transaction logs to your computer. It is that easy!
Be Secure with Style
Who says you can’t be stylish? The simple and sleek design of H2i looks good in any setting of a workplace!

Built-In Alarm
Increase the security at your workplace by installing an external alarm, and be alerted during unexpected scenarios such as break-ins and fire emergencies.
Value for Money
This model was designed to be economical so that you are able to implement FingerTec solutions at a lower cost. We believe that when it comes to security, there should be no compromise.

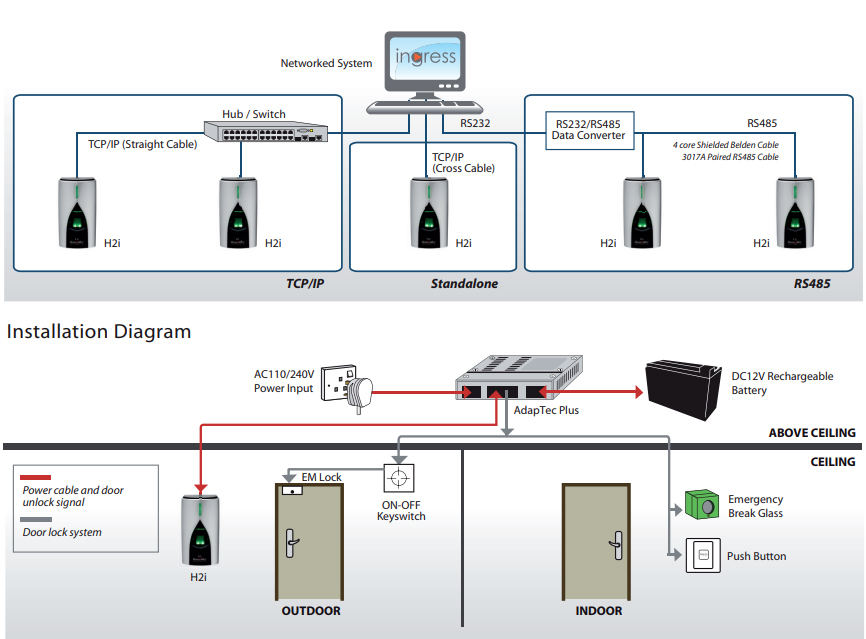

LAYOUT PLAN
System Communication
for illustration only
Installation Diagram
Specifications
SURFACE FINISHING Acrylonitrile Butadiene Styrene (ABS)
TYPE OF SCANNER Optical fingerprint scanner
MICROPROCESSOR 300 MHz
MEMORY 256 MB flash memory and 32 MB SDRAM
ALGORITHM BioBridge VX 9.0 / VX 10.0
PRODUCT DIMENSION (L X W X H), mm 78 x 50 x 150
STORAGE
• Fingerprint templates 1500
• Card 10000
• Transactions 100000
ENROLLMENT & VERIFICATION
• Methods Fingerprint & card
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
• MIFARE: MFIS50/S70, 13.56MHz Made to order
• HID: HID 1326, 26-bit, 125kHz Made to order
COMMUNICATIONS
• Method TCP/IP, RS485, USB disk
• Baud rates 9600, 19200, 38400, 57600, 115200
• Wiegand 26-bit input/output
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
MULTIMEDIA
• Voice Yes
ACCESS CONTROL
• EM lock driving output DC 12V 3A / Relay output
• Alarm output NO / NC
• Antipassback Yes
VOICE LANGUAGE (TERMINAL) English (Standard)/ Other lauguages are available upon request.
SOFTWARE LANGUAGE English, Arabic, Chinese Traditional/ Simplified, Spanish, Thai, Russian, Malay
SOFTWARE Ingress
NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information.
Packaging
Dimension (mm): 225(L) x 72(W) x 168(H)
Weight: 0.75kg
