Latest Face Recognition Technology
Embedded with the ultimate light-proof function technology to verify faces successfully even in a variety of light conditions.
A Safer Choice
Touch-less face verification technology provides greater convenience and better protection against crosscontamination.
Large Capacity
Stores up to 6,000 face templates, 6,000 fingerprint templates, 3,000 palm templates and up to 200,000 transaction logs.
Fever Detection
Configure temperature threshold for easy detection of high body temperature to exclude the potential risk of contagious disease transmission and deny access immediately.

Verify with Mask On
Verifies a face even with a mask on for better safety; the feature is optional yet crucial amid the pandemic.



Anti-Spoofing Checks
The technology has been improved with better security configuration to prevent crimes and spoofing attempts.
Speedy Verification
High-Speed Temperature Detection. 0.1s Temperature Detection & up to 120cm Measurement
Efficient Data Processing
Integrated with Ingress software, the bundled solution with door access and time attendance solution in one single system
LAYOUT PLAN

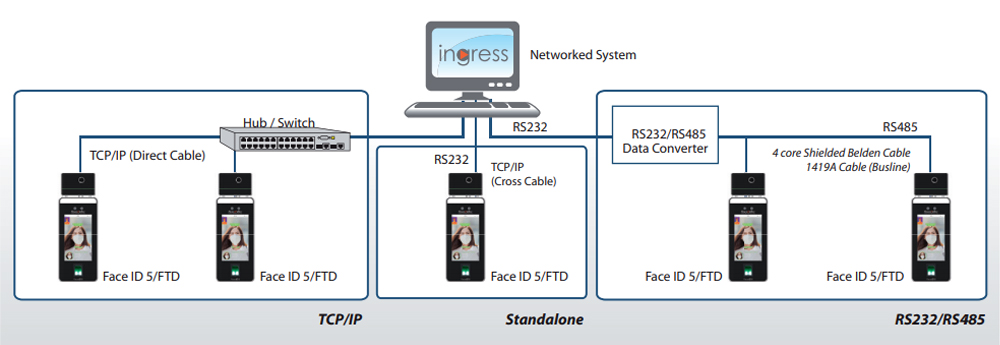

System Communication
for illustration only **

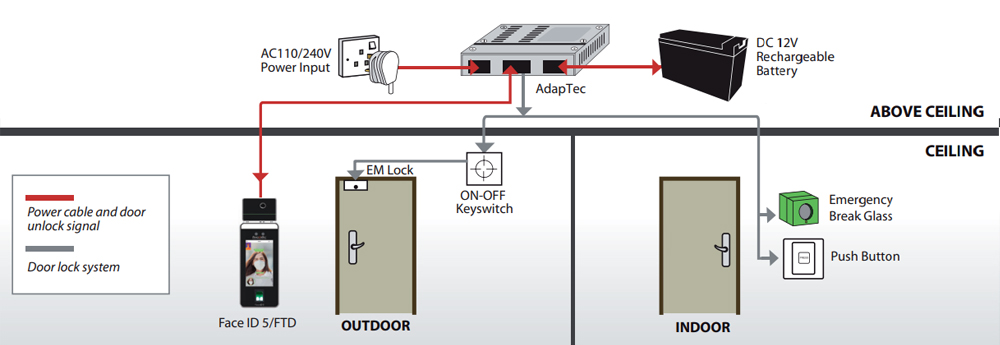

Installation Diagram
SPECIFICATIONS
MODEL Face ID 5 FTD
SURFACE FINISHING Glass with aluminium frame
TYPE OF SCANNER 2 MP WDR Low Light Camera & High resolution fingerprint scanner
MICROPROCESSOR 900 MHz Dual Core CPU
MEMORY 512MB RAM, 8G Flash
ALGORITHM Face: BioBridge VX 9.0,
Fingerprint: BioBridge VX 10.0,
Palm: BioBridge VX 9.0
PUSH TECHNOLOGY Yes
DIMENSION (L X W X H), mm 92 x 23.5 x 262
STORAGE
Face templates 6,000
Fingerprint templates 6,000
Palm templates 3,000
Transactions 200,000
ENROLLMENT & VERIFICATION
Methods Face (1:N), Fingerprint (1:1, 1:N), Palm (1:N) & Password
Recommended per user ID Face: 1, Fingerprint: 10, Palm: 1
Verification time (sec) Fingerprint: <1s, Face: <2s, Palm: <0.35s
CARD TECHNOLOGY
RFID: 64-bit, 125kHz, RF output power (EN300-330) Make to order
MIFARE: MFIS50/S70, 13.56MHz Make to order
COMMUNICATIONS
Method TCP/IP, R5485, Wi-Fi (Optional)
Wiegand Input/ Output
OPERATING ENVIRONMENT
Temperature (°C) 0 ~ 45
Humidity (%) 10 ~ 90
Power input DC 12V 3A
MULTIMEDIA
Display 5” Touch Screen
Photo-ID Yes
ACCESS CONTROL
Lock Relay Output Yes
Alarm Output/Auxiliary Input Yes
Exit Button/Door Sensor Yes
PREVENTIVE MEASURES
Mask Detection Yes
Fever Detection Yes
Fever Measurement Distance (cm) 30 - 50
Fever Detection Speed >0.3s
Temperature Measurement Range (°C) 34 ~ 45
Temperature Measurement Accuracy (°C) +/- 0.3
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard) Other languages are available upon request.
NOTE: Specifications are subject to change. Check https://product.fingertec.com for latest product information
Packaging
Dimension (mm) : 245 (L) x 90 (W) x 225 (H)
Weight :1.50kg
*Temperature module sensor
12-month warranty
