| Cost Effective The R3c reduces the cost of having to invest in two master terminals to maintain IN-OUT access using fingerprints without compromising on the security aspects of the system. |
| Verification and Storage in Master or Controller A simple mechanism applies to R3c where all verifications and data storage is managed by a master terminal or a controller. |
| Flexible Installation Distance The installation distance between the master terminal and the R3c slave terminal can go as far as 10 meters with a standard 4-core shield Belden cable. |
| Seamlessly Pairs with Fingertec Terminals The R3c is specially designed to seamlessly pair with FingerTec fingerprint models, which include R3, R2 (FEM565), AC900, Q2i, and H2i. *Selected models only. |
| Dust-proof It is withstand dust, dirt and sand, extends the durability of the product. |
| Simple RS485 Connection The R3c is designed with the standard RS485 communication port, to ease connection with the FingerTec fingerprint terminals and controllers. |
| Multiple Verifications Besides fingerprint verification, the R3c also offers RFID card verification. MiFare card verification feature is also available upon request. |
| Access Control Management All EM Lock driving outputs, alarm outputs, and anti-passback via the R3c can be diverted to be managed by a master terminal or Ingressus Controller in an access control system. |

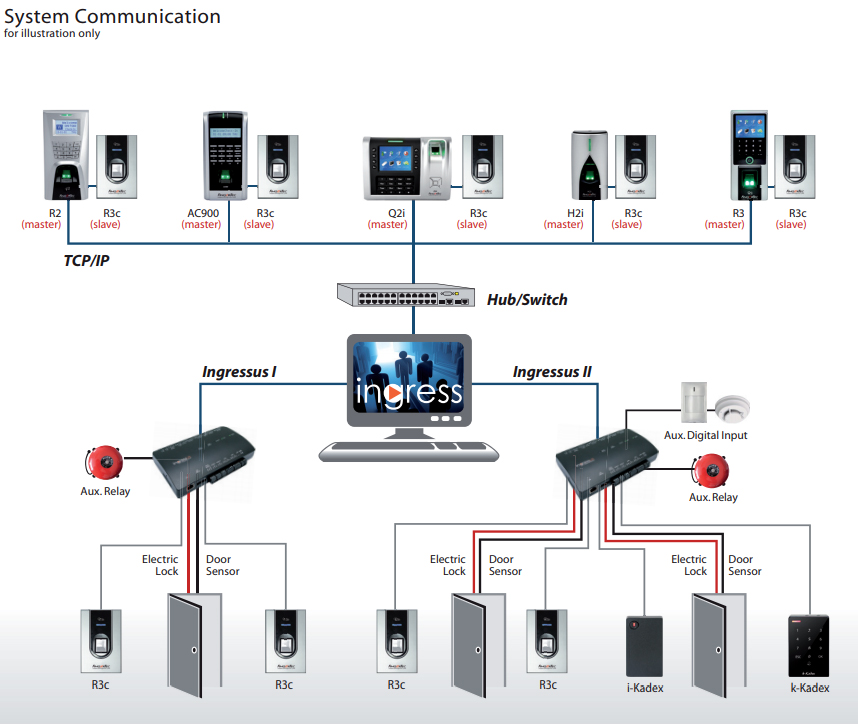

| Layout Plan |
| SPECIFICATIONS | |
| MODEL | R3c |
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) |
| TYPE OF SCANNER | Non coated optical scanner |
| MICROPROCESSOR | Managed by master |
| MEMORY | |
| ALGORITHM | Supports BioBridge VX 10.0 |
| PRODUCT DIMENSION (L X W X H) | 80mm x 40mm x 125mm (w/o housing) |
| PRODUCT WEIGHT | 0.14 kg |
| STORAGE | |
| • Fingerprint templates | Storage in master terminal |
| • Transactions | |
| ENROLLMENT & VERIFICATION | |
| • Methods | Fingerprint (1:N) & card |
| • Recommended fingerprint per user ID | Managed by master |
| • Fingerprint placement | Any angle |
| • Verification time (sec) | Managed by master |
| • FAR (%), FAR (%) | |
| CARD TECHNOLOGY | |
| • RFID: 64-bit, 125kHz | Yes |
| • MIFARE: MFIS50, 13.56MHz | Made to order |
| COMMUNICATIONS | |
| • Method | RS485 (Connects to Master Terminal) |
| OPERATING ENVIRONMENT | |
| • Temperature (°C) | 0 ~ 45 |
| • Humidity (%) | 20 ~ 80 |
| • Power input | Managed by master |
| ACCESS CONTROL | |
| • EM lock driving output | Managed by master |
| • Alarm output | |
| • Anti-passback | |
| NOTE: Specifications are subject to change. Check http://product.fingertec.com for latest product information. |
 |
| Packaging Dimension (mm) : 225 (L) x 72 (W) x 168 (H) Weight : 0.45 kg |
 |
 |
 |
 |
 |
 |
 |
