Access to Specific Floors
Admin can preset authorized floors for every user through a cloud solution
Smart Phone as Credential
Do away with card system; use user’s own smartphone as access credential
Tenant Access Management
Admin can set tenant access right accurately and fuss-free
Statistic Report
Building manager can monitor and generate Access Activity Report daily, monthly and even on a yearly basis

Time Zone Settings
On top of restricting floor levels, admin can set time zone for restricted access



Visitor Access Management
Provide one time or multiple accesses to authorized visitors to specific floor only
Access to Different Floors
Depending on management / building rules, tenants and owners could be allowed access to various floors in the same building or neighbourhood
Integration with TimeTec Cloud and its Apps
Seamless integration with TimeTec other useful solutions for better security and convenience

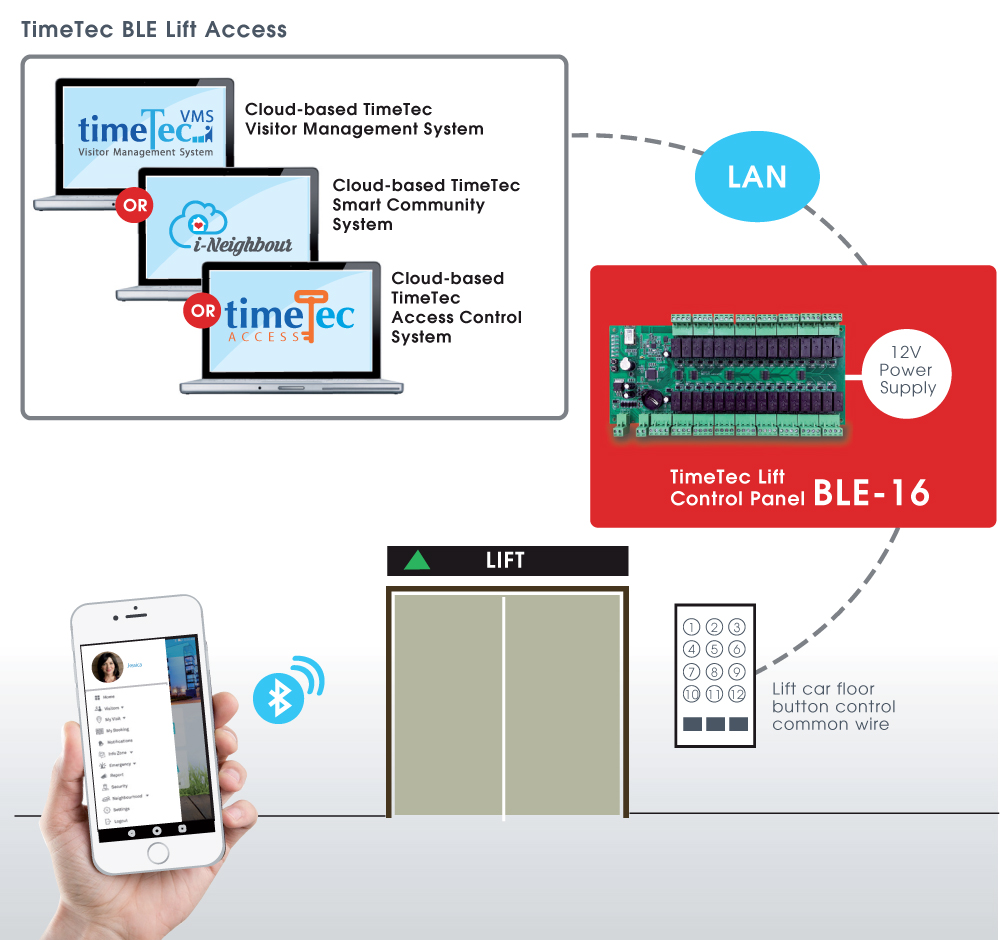

Installation Diagram * for illustration only
SPECIFICATIONS
Model BLE-16
Channels 16 FORM C Relay output, Failed Safe bypass design
Floors 16 (extend by expansion board)
Dimension (mm) 180 (L) x 231 (W) x 62 (H)
Weighing (kg) 1.7
Power input 9 ~ 12 VDC
Working temperature °C 20-80
Humidity (%) 10 - 90
Communication Dual BLE 4.0 & 4.2
Bluetooth Encryption 64-bit TimeTec Proprietary
LED indicator Yes
Transaction records Unlimited, stored in cloud server, local 1000 transaction
Event capacity Unlimited
Mobile OS Android 4.0.2 and above
iOS 8.0 and above
App & Cloud TimeTec Security, TimeTec Access, TimeTec VMS, i-Neighbour
Language (App & cloud) Arabic, Chinese Simplified, Chinese Traditional, English, Hindi, Indonesian, Malay, Nepali, Spanish, Thai, Turkish, Vietnamese.
Other languages are available upon request.
NOTE: Specifications are subject to change without prior notice.
