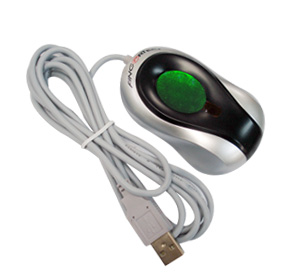

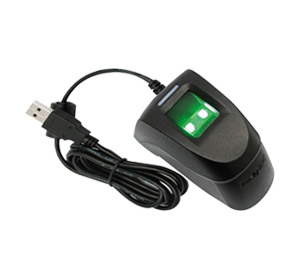

MODEL OFIS-X OFIS-Y
Click to view
Algorithm BioBridge VX 9.0 / VX 10.0 BioBridge VX 9.0 / VX 10.0
Supporting OS 32-bit Windows XP, Windows Vista, Windows 7 32/64-bit Windows XP, Windows Vista, Windows 7, 8 & Windows Server 2008
Pixel resolution, dpi 512 dpi (average x, y over the scanning area) 512 dpi (average x, y over the scanning area)
Scan capture area, mm 17mm x 26mm 15mm x 18mm
Scan Data 8-bit grayscale (256 levels of gray) 8-bit grayscale (256 levels of gray)
Reader size (approximate)
(L X W X H), mm
87 x 58 x 24 45 x 78 x 40
Compatibility USB 1.0, 1.1 and 2.0 (full speed) specifications USB 1.0, 1.1 and 2.0 (Full speed) specifications
OS/Browser MS Windows/ MS Internet Explorer (IE 9) MS Windows/ MS Internet Explorer (IE 9)
Power supply 5.0V +/- 0.25V USB supply 5.0V +/- 0.25V USB supply
Operating temperature (°C) 0 – 55 0 – 55
Operating humidity (%) 20 – 80 non-condensing 20 – 80, non-condensing
Standard FCC Class FCC Class B, CE, USB FCC Class B, CE, USB
Usage Indoor, home and office use Indoor, home and office use
