| MODEL |

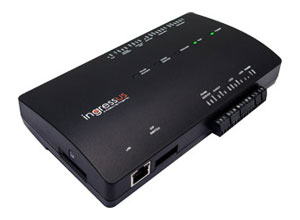

Ingressus I |

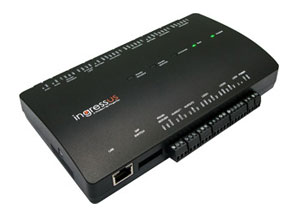

Ingressus II |

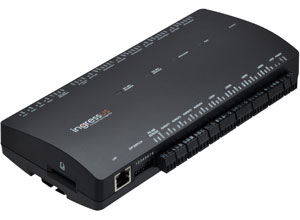

Ingressus IV |
| Rates & Reviews |
|
|
|
| Click to view |
|
|
|
| BASIC |
|
|
|
| • Dimension (L X W X H), mm |
186 x 106 x 36 |
186 x 106 x 36 |
226 x 106 x 36 |
| • Power input (V) |
12V DC |
12V DC |
12V DC |
| • Operating temperature (°C) |
0 - 45 |
0 - 45 |
0 - 45 |
| • Operating humidity (%) |
20 - 80 |
20 - 80 |
20 - 80 |
| • CPU |
32-bit, 400MHz |
32-bit, 400MHz |
32-bit, 400MHz |
| • Flash Memory (MB) |
128 |
128 |
128 |
| • SDRAM (MB) |
32 |
32 |
32 |
| • Polarity protection |
Yes |
Yes |
Yes |
| storage |
|
|
|
| • Fingerprint |
3,000 |
3,000 |
3,000 |
| • Card |
30,000 |
30,000 |
30,000 |
| • Passwords |
30,000 |
30,000 |
30,000 |
| • Transactions |
100,000 |
100,000 |
100,000 |
| COMMUNICATIONS |
|
|
|
| • Communications with server |
TCP/IP, RS485 |
TCP/IP, RS485 |
TCP/IP, RS485 |
| • Quantity of terminal |
2 |
4 |
4 |
| • Communication with terminals |
2 x 26-bit wiegand input. Each
for 1 slave terminal (1 x RS485
input to support RS485 network)
(max 2 units) |
4 x 26-bit wiegand input. Each
for 1 slave terminal (1 x RS485
input to support RS 485 network)
(max 4 units) |
4 x 26-bit wiegand input. Each
for 1 slave terminal (1 x RS485
input to support RS 485 network)
(max 8 units) |
| INPUT |
|
|
|
| • Push release button |
1 |
2 |
4 |
| • Door sensor |
1 |
2 |
4 |
| • AUX |
1 |
2 |
4 |
| • Types of AUX input supported |
Motion detector, passive DIR detector, curtain passive infrared detector, pet immunity PIR detector, two beam digital active infrared detector, heat detector |
| OUTPUT |
|
|
|
| • Door lock (12VDC 10A form C relay) |
1 |
2 |
4 |
| • AUX output (30VDC 2A form C relay) |
1 |
2 |
4 |
| • Types of AUX output supported |
Gas detector and compatible sensors, Piezo strobe siren, electronic siren |
| ACCESS CONTROL FEATURES |
|
|
|
| • Main Features |
Door opening time (0-999s), Inter-locking (lnggressus II & IV only), Anti-pass back (Local only), Multi card unlocking, First card unlocking, Time zone (50), Holiday time zone, Permanent door release/ lock time zone, Day light saving time zone, Continuous verification of users |
| • Security Features |
Door force open alarm, Door open time out alarm, Fire linkage, Duress alarm,
Door status and event (51 types) |
| SOFTWARE |
|
|
|
 |
Bundled |
 |
copyright
| N/A = Not applicable |
