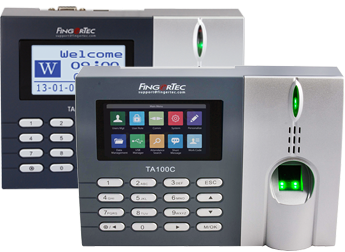

TA100* & TA100C
Fingerprint Time Attendance System
WARRANTED
* Discontinued Models
TA100- Memory Module
Core board
FTTC0001FMM
TA100C- Main Controller Unit
MCU
FTTA1003
Display, indication & sound modules
LCD ( only for TA100 )
FTTA1008-1
LCD Color Screen ( only for TA100C )
FTTC0002
LED Indicator
FTTA1014
Speaker 8W
FTGL0006
Capturing and Input modules
Non-coated optical scanner
FTTA2003
Prism ( Non-coated )
FTGL0004-1

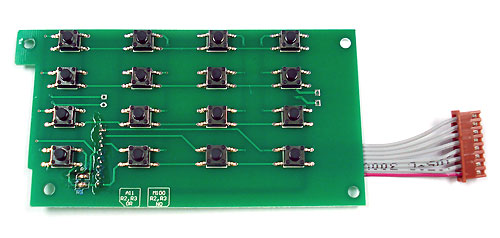

Keypad PCB
FTTA1007

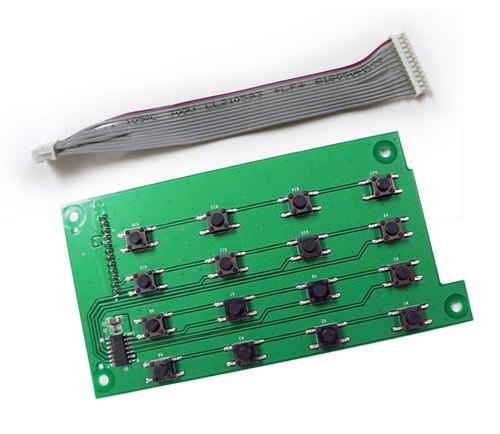

Keypad PCB (TA100C) New
FTTA1007N
Wires & Connectors
Scanner Holder (metal)
FTGL003-1
Flexi Flat Cable
(Scanner to Coreboard)
FTGL0008
Connection Cable
(LCD to MCU)
FTGL0008
RFID Antenna
( RFID model only )
FTGL0027R
RFID Module
( RFID model only )
FTTA1016

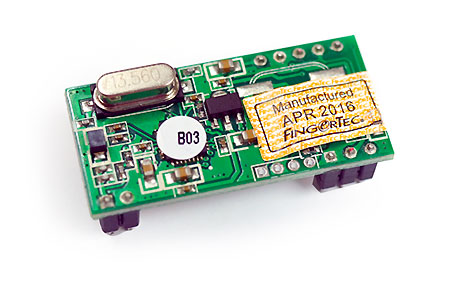

Mifare Module
FTAM8001M

Mifare Antenna
FTGL0027M

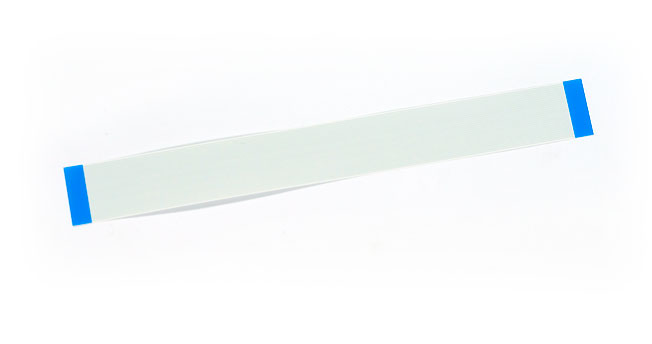

Flexi Flat Cable (LCD to Coreboard)
FTGL0008
Wireless Connection Components

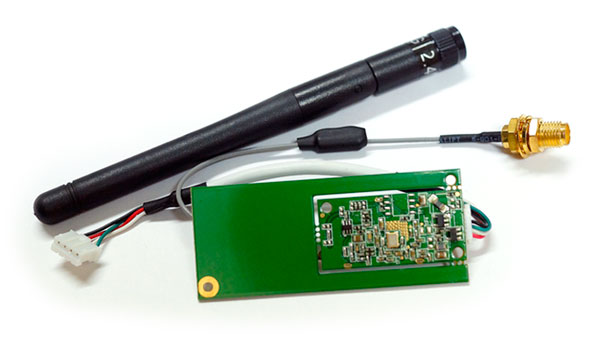

Wifi Module
FTGL0023
GPRS Module
FTGL0021
UNWARRANTED
Casing & Covers

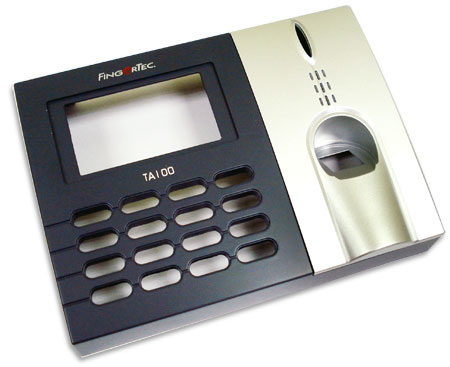

TA100 Casing (Front)
FTTA1001

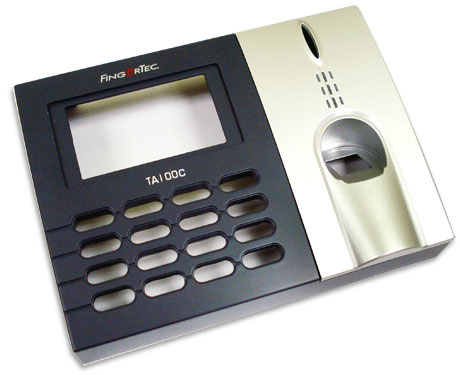

TA100C Casing (Front)
FTTC1003
Casing Back
TA100: FTTA1001-1
TA100C: FTTC1003-1
Keypad Button
FTTA1013

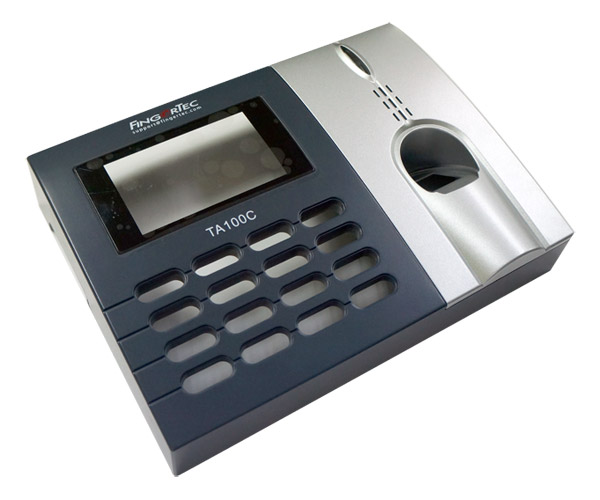

TA100C Casing (Front) New
FTTC1003N

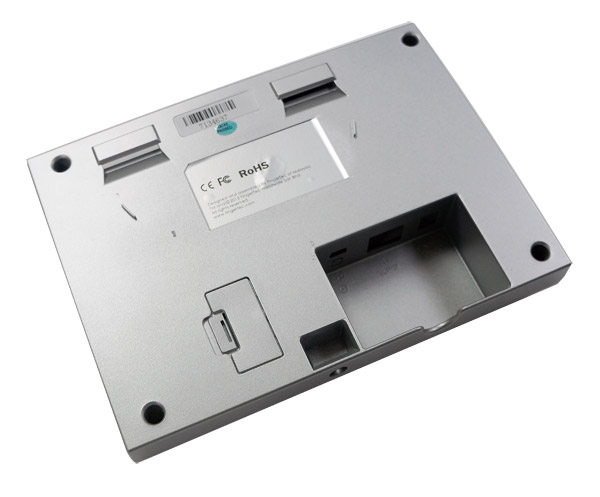

TA100C Casing (Back) New
FTTC1003-1N

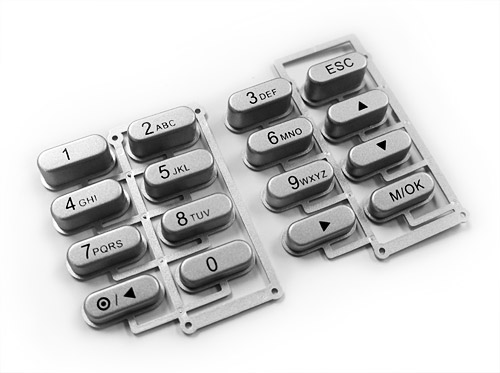

Keypad Button (TA100C) New
FTTA1013N
Back Plate
FTGL0026
Prism
Prism (Coated) (only for TA100)
FTGL0004
Power Supply
5VDC 2000mA Power Adaptor
FTGL0005
Connector
USB Connector
FTGL0012
