Contactless Identification
One of the many advantages of face identification is its contactless nature. Just stand still in front of the camera and get verified instantly.
Tighten Security
Face ID X caters to a tighter access control system with implementation of both face & fingerprint biometric authentication methods simultaneously.
Security and Accuracy Assured
Face ID X can be installed for door access and staff time & attendance providing companies with security and data accuracy from one single system.
Shortcut Keys for Convenience
Face ID X presents users with the convenient shortcut keys, programmable for the commonly used functions.

Multi-Verification Method for Versatility
Face ID X offers four different types of identity verifications Fingerprint, Face ID, RFID card and password.



No Waiting Time
It takes 2 seconds to verify an identity through face recognition and 1 second for fingerprint. It’ll be done before you know it!
Supersized Capacity
Face ID X can store up to 30,000 face templates, 50000 fingerprint templates and up to 1,000,000 transaction logs which can be downloaded into a computer via TCP/IP, RS232, RS485, or via USB flash disk connection.
Smooth Navigation
The full colour touch screen in Face ID X makes it easy for users to navigate through the system.

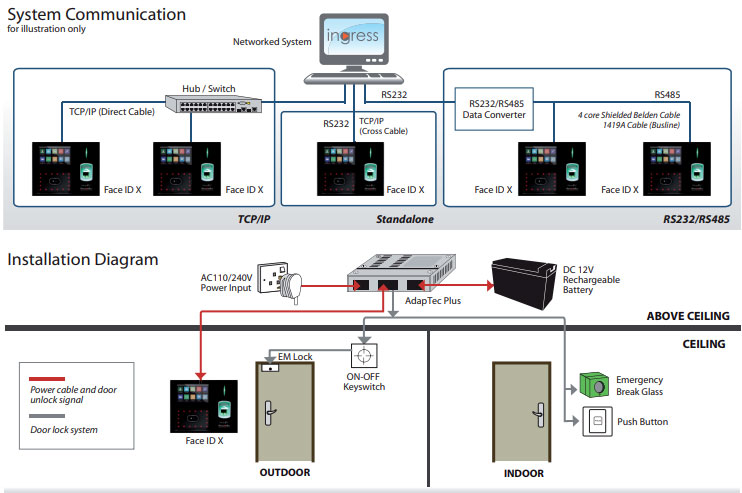

LAYOUT PLAN
System Communication
for illustration only **
SPECIFICATIONS
MODEL Face ID X
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS) & acrylic
TYPE OF SCANNER Hi-res infrared camera & fingerprint scanner
MICROPROCESSOR 1.2GHz
MEMORY 1GB Flash and 1GB SDRAM
ALGORITHM Face BioBridge VX7.0, Fingerprint BioBridge VX9.0 / 10.0
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 194 x 110 x 145
STORAGE
Fingerprint templates 10000
Face templates 3000 (1:N), 30000(1:1)
Cards 10000
Transactions 1000000
ENROLLMENT & VERIFICATION
Methods TCP/IP, RS232, RS485, USB disk (Optional WiFi & 4G)
Recommended fingerprint per user ID 2
Fingerprint placement Any angle
Verification time (sec) Face < 2, Fingerprint < 1
Fingerprint FAR < 0.0001%, FRR < 0.1%
Face FAR < 0.01%, FRR < 0.1%
CARD TECHNOLOGY
RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
MIFARE: MFIS50/S70, 13.56MHz Make to order
HID: HID 1325, 26-bit, 125kHz Make to order
COMMUNICATIONS
Method TCP/IP, RS232, RS485, USB disk (Optional WiFi & 3G)
Baud rates 9600, 19200, 38400, 57600, 115200
Wiegand 26-bit output
OPERATING ENVIRONMENT
Temperature (°C) 0 ~ 45
Humidity (%) 20 ~ 80
Power input DC 12V 3A
TIME ATTENDANCE
Siren Internal and external
Work codes Yes
Fast transaction checking Yes
MULTIMEDIA
Display 4.3” 65K color TFT touch screen panel
Photo-ID Yes
Short messaging Yes
Day light saving timer Yes
Internal backup battery Yes (DC 12V, 2000mAh)
ACCESS CONTROL
EM lock driving output DC 12V / relay output
Alarm output NO/NC
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified, Cantonese, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian.
Other languages are available upon request.
NOTE: Specifications are subject to change. Check https://product.fingertec.com for latest product information
Packaging
Dimension (mm) : 298 (L) x 123 (W) x 222 (H)
Weight : 1.84 kg
