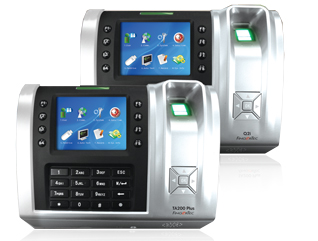

| Q2i & TA200 Plus |
| Fingerprint Color TIme Attendance & Door Access System |
| |
The FingerTec® Q2i and TA200 Plus are astounding hi-tech time attendance and door access products, designed to impress with colored screen TFT display for vivid color presentation.
Equipped with storage capacity of 1,500 fingerprint templates and 50,000 transaction logs, plus the gorgeous screen with straightforward icons, the FingerTec® Q2i and TA200 Plus are excellent choice for your office’s time attendance & door access system. The products offer convenience with multiple methods of verification, which include fingerprint, password and RFID card. In addition to that, the FingerTec® Q2i and TA200 Plus also have practical multimedia functions such as definition of work codes and short messages display for either personal or public recipients for effective staff communication. |
|
|
| |
The FingerTec® Q2i and TA200 Plus provide feasibility on user enrollment, user transfer between readers, data transfer, and connectivity. To complete the system, the package comes readily available with bundled powerful TCMS V2 software, professionally written manuals in various languages for hardware and software, and clearly explained video guides as inclusive training on how to use the system.
Look no more for time attendance and door access system, as the FingerTec® Q2i and TA200 Plus are offering the best available color fingerprint systems for your office’s requirements! |
|
| |
|
| |
| FEATURES & BENEFITS |
|
|
| Time Attendance |
Multimedia |
 |
To eliminate "buddy-punching" incidents. |
|
Workcode is available to allow user to input clocking reasons. |
|
To collect clocking data systematically. |
|
Short message display onscreen to broadcast company information to users. |
|
To manage data quicklyt and effective via software. |
|
Private message short display intended for particular users. |
|
To provide ease of use with combinations of fingerprint, password and
RFID / MIFARE / HID card. |
|
65k color TFT screen display for vivid color and presentation. |
| |
|
|
Local language greetings and display available. |
| Access Control (Q2i only) |
|
|
|
To curb unauthorized access via keyless device. |
Connectivity |
|
To monitor staff's movement at any time. |
|
TCP/IP, RS232 and RS485 connections. |
|
To control staff's accessibility via time zone settings. |
|
Multi-readers powered by software TCMS V2. |
|
To provide extra security with combinations of fingerprint, password
and RFID. |
|
USB port available to ease data transfer. |
|
To integrate with door lock system easily (DC 12V 3A EM Output). |
|
|
|
|
| |
|
| |

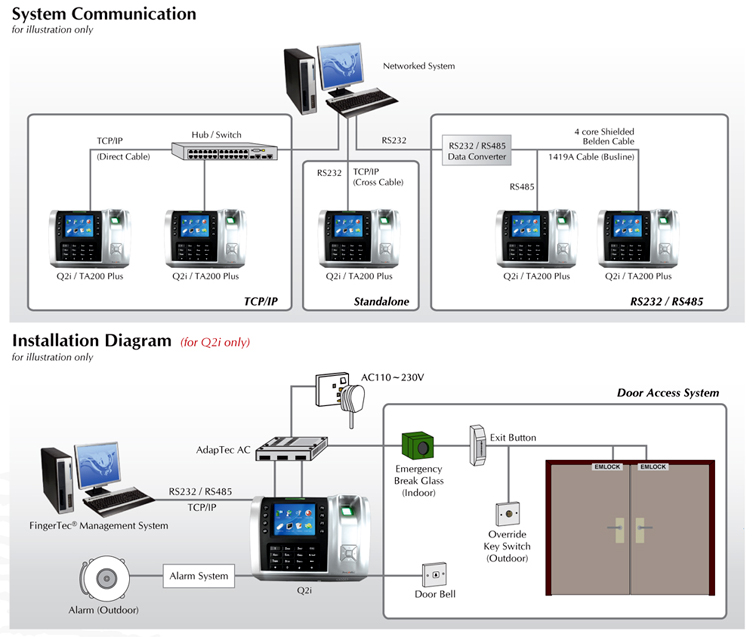

| LAYOUT PLAN |
|
|
 |
| |
|
| |
| SPECIFICATION |
|
|
MODEL |
Q2i |
TA200 Plus |
TYPE OF SCANNER |
Optical |
DIMENSION (L X W X H) mm |
200 x 56 x 160 |
STORAGE |
• Fingerprint templates |
3000 |
• Transaction |
120000 |
ENROLLMENT & VERIFICATION |
• Methods |
Fingerprint (1:1, 1:N), Password & Card |
• Recommended fingerprint per user ID |
2 |
;• Fingerprint placement |
Any angle |
•Verification time (sec) |
< 2 |
• FAR (%) |
< 0.0001 |
• FRR (%) |
< 1 |
SUPPORTING CARDS |
• RFID: 64-bits, 125kHz |
Yes |
• MIFARE: MF1S50/S70, 13.56MHz |
Optional |
• HID: HID 1325, 26-bits, 125kHz |
Optional |
COMMUNICATIONS |
• Methods |
TCP/IP, RS232, RS485, USB pen drive, (Optional: WiFi/GPRS) |
• Baud rates |
9600, 19200, 38400, 57600, 115200 |
• Wiegand |
26-bits input/output
|
OPERATING ENVIROMENT |
• Temperature(°C) |
0 ~ 45 |
• Humidity (%) |
20 ~ 80 |
• Power Input |
DC12V 3A |
TIME ATTENDANCE |
• Siren |
Yes |
• Work Codes |
Yes |
MULTIMEDIA |
• Greeting voice |
Yes |
• Display |
3.0" 65K color TFT screen |
• Short messaging |
Yes |
ACCESS CONTROL |
• EM lock driving output |
DC12V3A / Relay output |
N/A |
• Alarm Output |
NO/NC |
N/A |
• Antipassback |
Yes |
N/A |
FingerTec® REMOTE IDENTIFICATION SYSTEM |
• Online enrollment and verification with FRIS II server |
Yes |
GREETING VOICE / DISPLAY LANGUAGE (READER)
|
English (Standard) / (Upon Request - Arabic / Indonesian / Spanish / Turkish / Thai / Polish / Korea / Romanian / Portuguese / Dutch / Chinese / French / Slovenia/ Russian/ Greek / Hebrew / Farsi / Italian / Vietnamese / Czech / Bulgarian) |
SOFTWARE LANGUAGE |
English, Arabic, Indonesian, Spanish, Chinese, Thai, Vietnamese, French, Farsi, Italian, Russian, Malay, Portuguese, German |
|
 |
| |
|
| Q2i / TA200 Plus Packaging |
| Dimension (mm) |
: 300(L) x 225(H) x 90(W) |
| Weight |
: 1.8kg |
|
|
|
|
|
