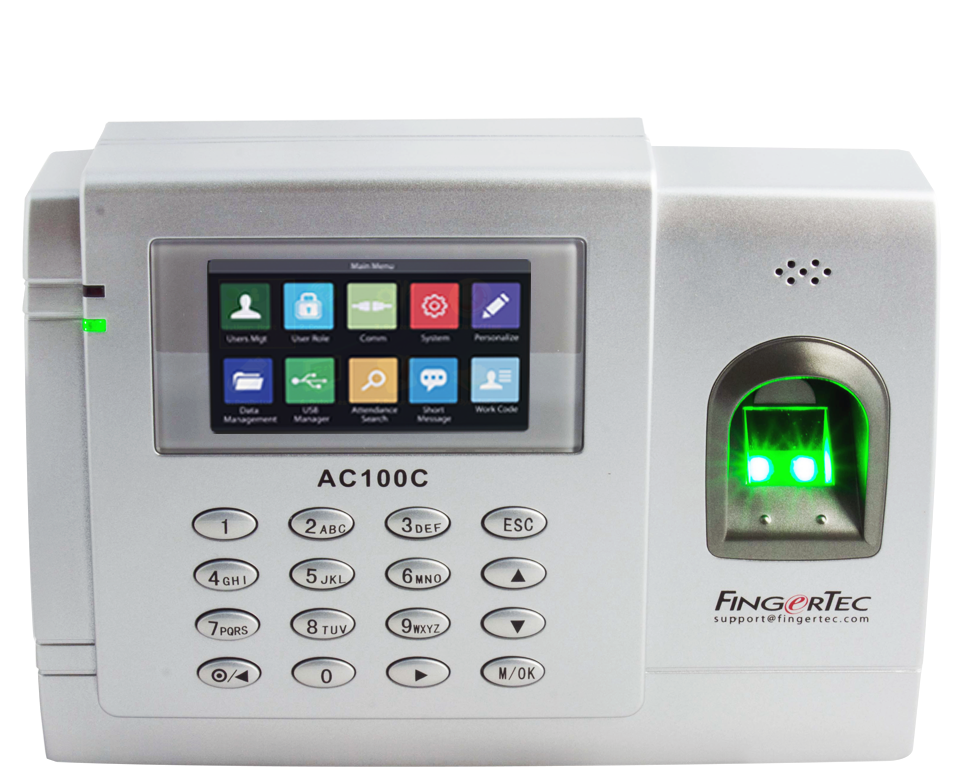

AC100C | FingerTec
AC100C
Cost-Effective Time Attendance



2 YEARS LIMITED WARRANTY
Storage Capacity
Transactions     200,000
Fingerprints 8,000
Verification & Communication
Serve A Specific Purpose
Verification
Fingerprint
Password
Fingerprint Password


Communication
TCP/IP
USB
RS232 & RS485
(optional)
TCP/IP

USB

RS232 & RS485
(optional)
Efficient Verification

Hasty & Accurate
Fingerprint
< 0.0001% False Acceptance Rate
< 1% False Rejection Rate
< 1 sec Speed
Cost-Effective Without Compromisation

Practicality With Affordable Cost

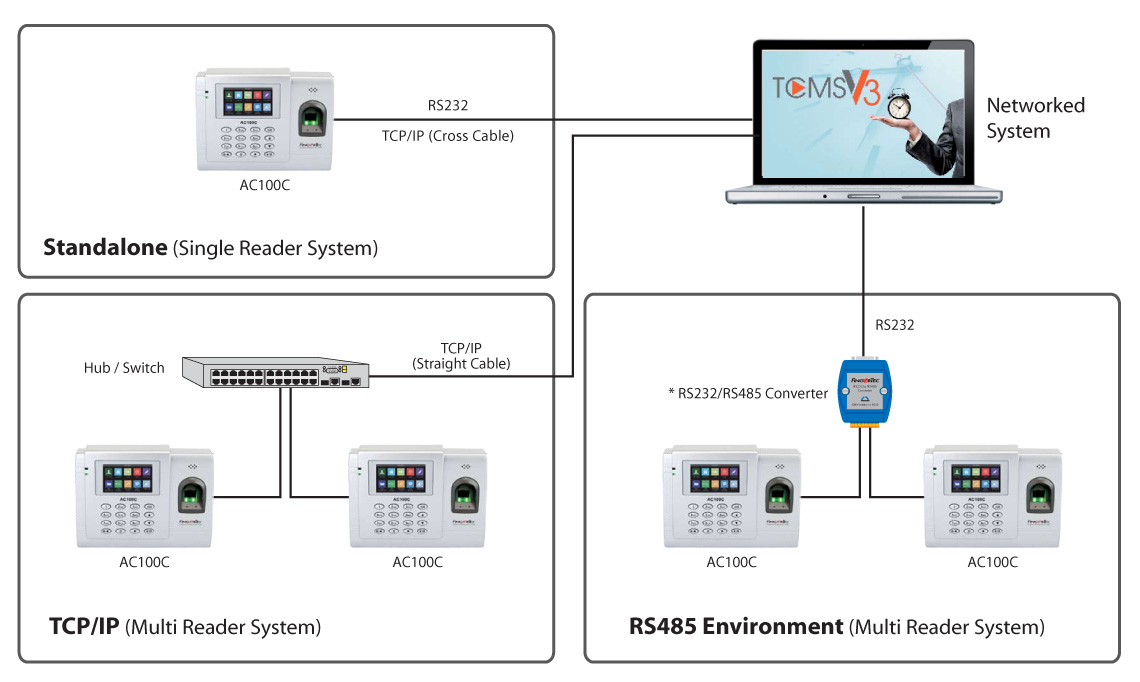

Layout Plan
for illustration only *optional
Specification
MODEL AC100C
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non coated optical scanner
PROCESSOR 800 MHz
MEMORY 256 MB flash memory & 128 MB SDRAM
ALGORITHM BioBridge VX 9.0 / VX 10.0
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 195 x 48 x 144
STORAGE
• Fingerprint templates 8,000
• Transaction logs 200,000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N) & password
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
COMMUNICATIONS
• Method TCP/IP, USB disk (Optional: RS232 & RS485)
• Baud rates 9600, 19200, 38400, 57600, 115200
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 5V 2A
TIME ATTENDANCE
• Fast transaction checking Yes
• Work codes Yes
MULTIMEDIA
• Voice Yes
• Display 3.0” 65k color TFT screen
• Short message Yes
• Photo ID Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Indonesian, Chinese (Simplified), Cantonese / Chinese (Traditional), Thai, Vietnamese, Spanish, Portuguese (Portugal), French, Russian, German, Turkish & Persian
Other languages are available upon request.
Software & Application
Beyond Biometrics, Beyond Connectivity

Software

TCMS V3
TCMS V3

Application

Time Attendace
Mobile & Cloud Attendance
What's in the Box

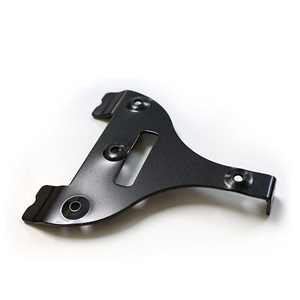

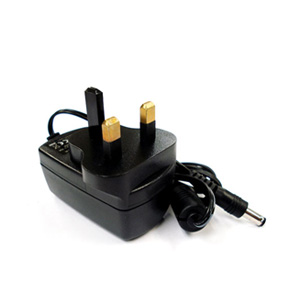

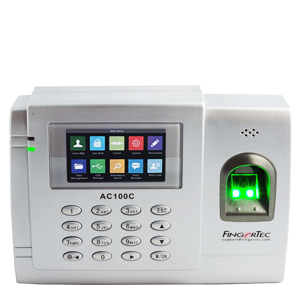

AC100C Back Plate Power Adapter

Product Card

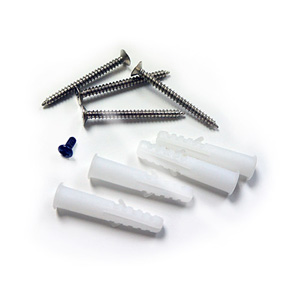

A Packet of Bolt
Product Information
Pricing: $$$
