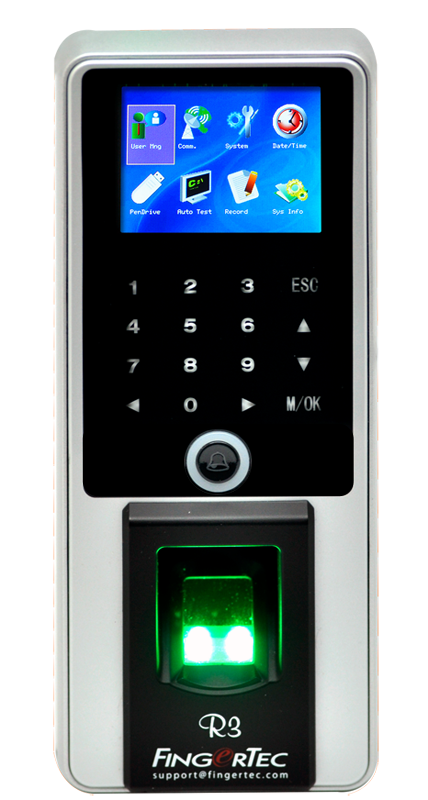

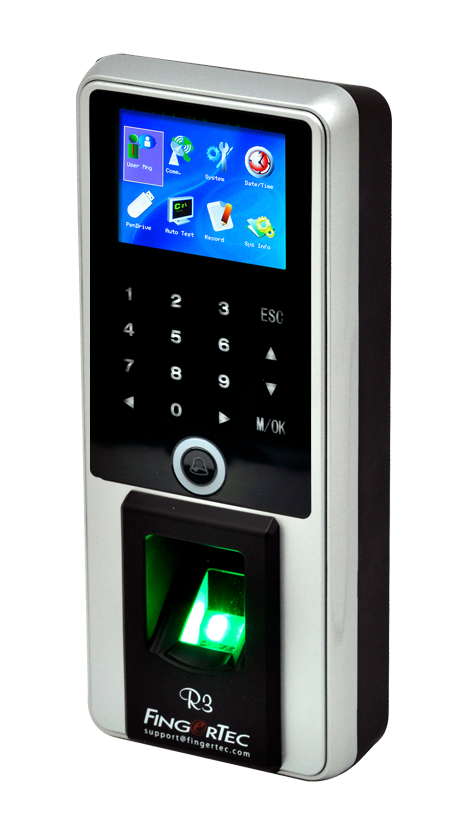

R3 | FingerTec
R3
2nd Generation Door Access & Time Attendance Device



2 YEARS LIMITED WARRANTY
Perfect Size and Capacity for Corporate Usage
Fingerprints
3,000
Passwords
10,000
Transactions
100,000
Multiple Verification & Communication
Verification
Fingerprint
Password
Fingerprint Password


Communication
TCP/IP
RS232/ RS485
USB
TCP/IP RS485/ RS485 USB

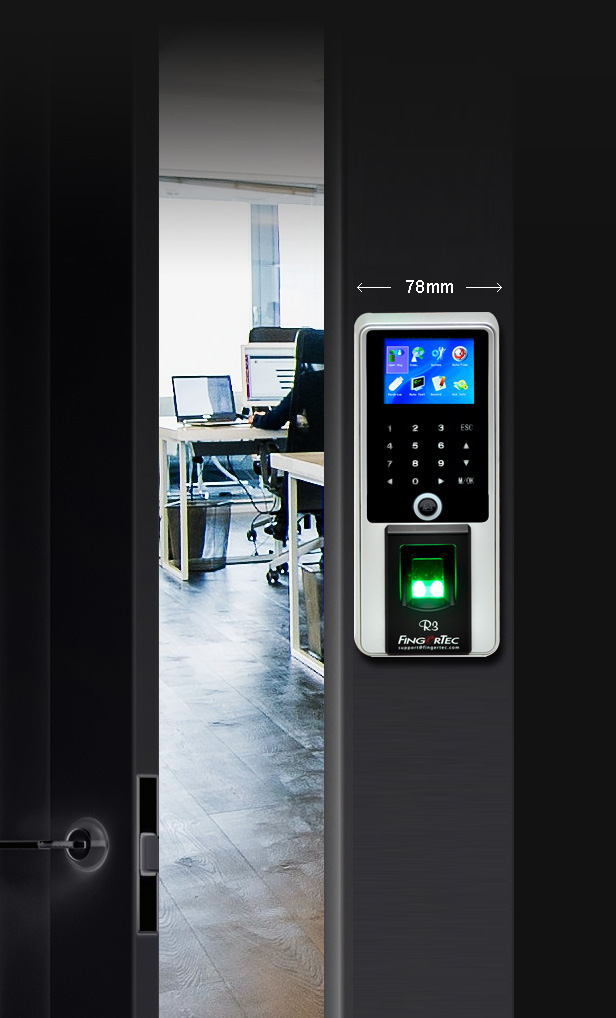

Sleek Design for Access Control

Fits perfectly in narrow spaces and door frames.
Fast in Verification & Enrollment

Advanced Algorithm with Precise Identity Verification
Fingerprint
< 0.0001% False Acceptance Rate
< 1% False Rejection Rate
< 1 sec Speed
TimeZone for Multiple Locations

Secure Your Premise Like Never Before
TimeZone, Group TimeZone and Group Verify features for extra security.
Layout Plan

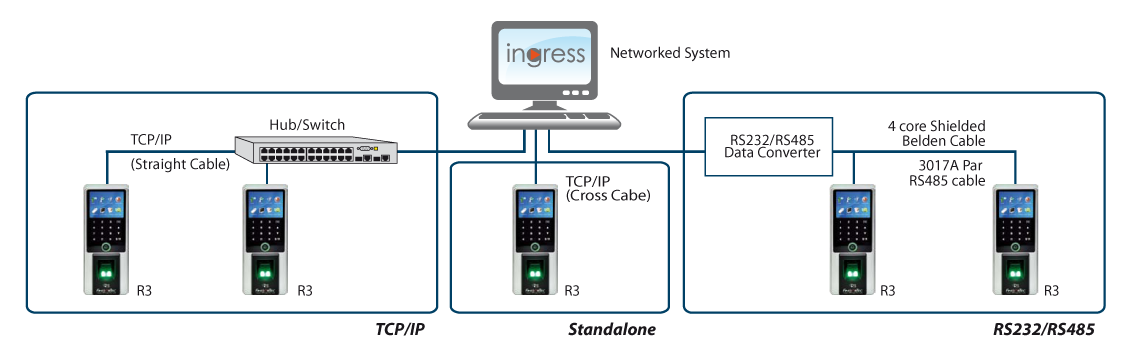

System Communication
For illustration only

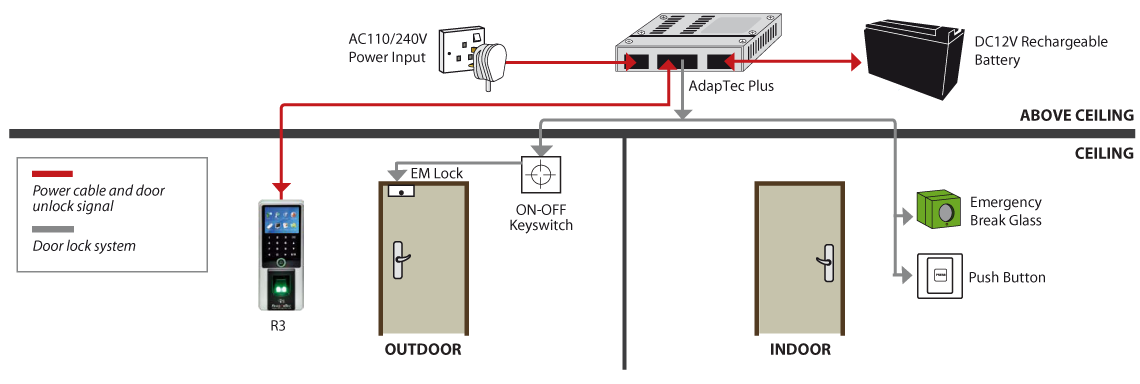

Installation Diagram
Specification
MODEL R3
SURFACE FINISHING In-mould labelling (IML), polycarbonate (PC) & acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non-coated optical scanner
PROCESSOR 400 MHz
MEMORY 256 MB flash memory & 32MB SDRAM
ALGORITHM Biobridge VX 10.0
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 78 x 32 x 190
STORAGE
• Fingerprint templates 3,000
• Transaction logs 100,000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), password
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.001
• FRR (%) < 1
COMMUNICATIONS
• Method TCP/IP, RS232, RS485, USB disk
• Baud rates 9600, 19200, 38400, 57600, 115200
• Wiegand 26-bit input / output
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
TIME ATTENDANCE
• Work codes Yes
MULTIMEDIA
• Greeting voice Yes
• Display 2.4” 3k colour LCD
• Photo-ID Yes
• Short messaging Yes
ACCESS CONTROL
• EM lock driving output DC12V 3A / relay output
• Alarm output NO/NC
• Anti-passback Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal) and Spanish.
Other languages are available upon request.
Software & Application
Beyond Biometrics, Beyond Connectivity

Software

Ingress
Access Control & Time Attendance

Application

Time Attendace
Mobile & Cloud Attendance
What's in the Box

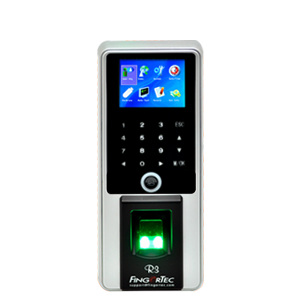

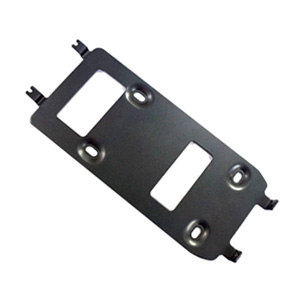

R3 Back Plate (thin)

Product Card

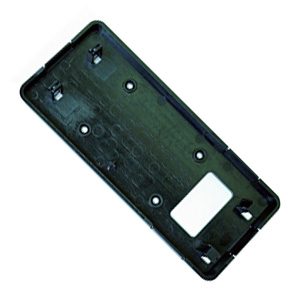

Back Plate (thick) optional

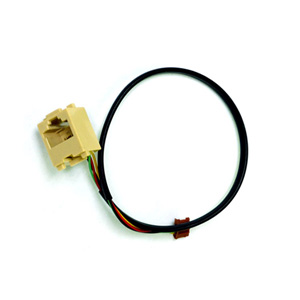

TCP/IP Connector

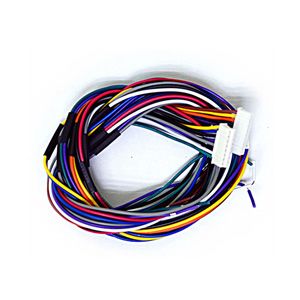

Wire Connectors

Diode


Star Screwdriver

A Packet of Bolt
