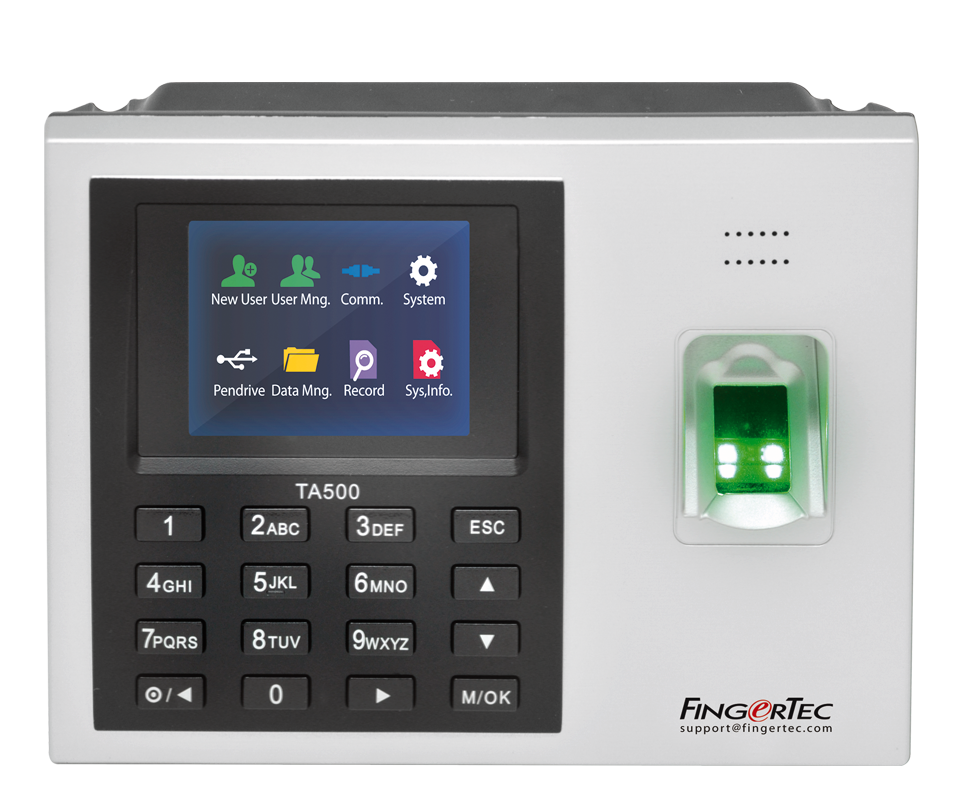

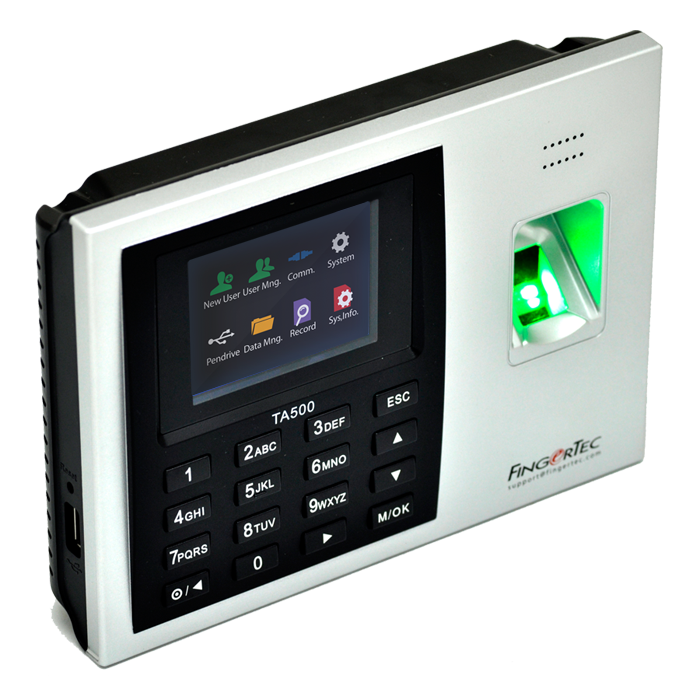

TA500
Sleek Contemporary Biometric Device



2 YEARS LIMITED WARRANTY
Modest Storage
Fingerprints
2,000
Transactions
80,000
Verification & Communication
Minimalist But Powerful
Verification
Fingerprint
Password
Fingerprint Password


Communication
TCP/IP
USB
WiFi (Optional)
TCP/IP USB WiFi (Optional)
Optimal Speed & Accuracy

Performance Speaks For Itself
Fingerprint
< 0.0001% False Acceptance Rate
< 1% False Rejection Rate
< 1 sec Speed
Eliminate Buddy Punching
Adopt Reliable Fingerprint Scanners to Stop Time Theft

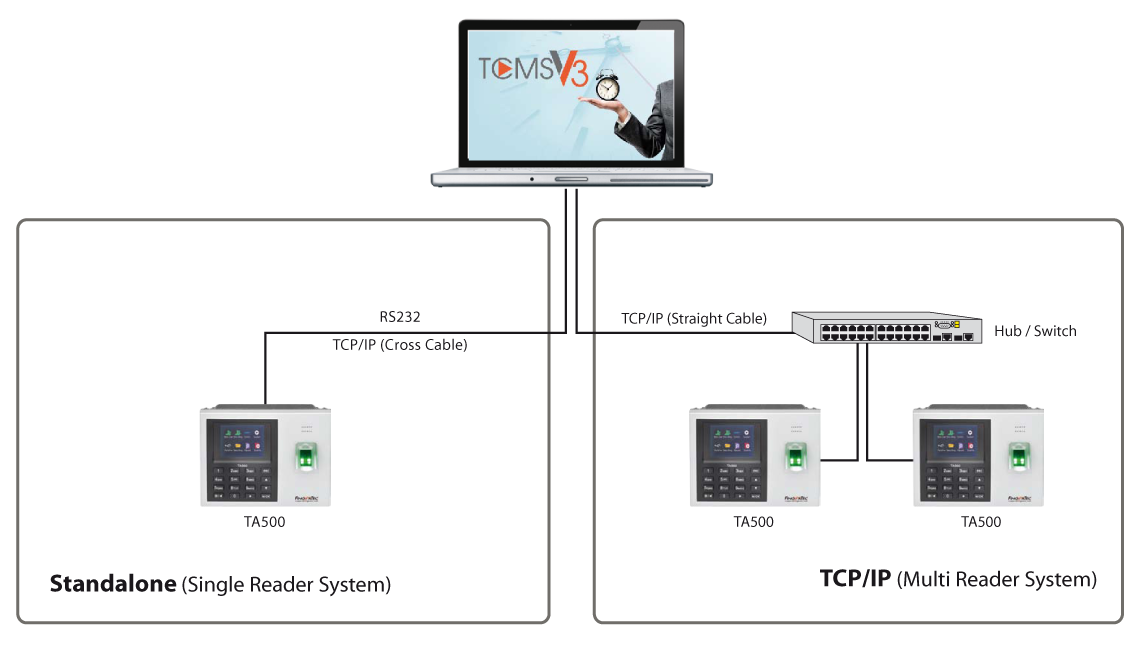

Layout Plan
For illustration only
Specification
MODEL TA500
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS) & polycarbonate (PC)
TYPE OF SCANNER Non-coated optical scanner
PROCESSOR 360 MHz
MEMORY 128 MB flash memory & 16 MB SDRAM
ALGORITHM BioBridge VX10.0
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 184mm x 38mm x 134mm
STORAGE
• Fingerprint templates 2,000
• Transaction logs 80,000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N) & password
• Recommended fingerprint per user ID 2 (Max 1000 user ID)
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
COMMUNICATIONS
• Method TCP/IP, USB disk (Optional WiFi)
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC12V1.5A
TIME ATTENDANCE
• Siren Yes
• Work codes Yes
MULTIMEDIA
• Voice Yes
• Display 2.8" 3k colour TFT screen
• Internal backup battery Yes (2 hours working, 4 hours standby)
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Indonesian, Vietnamese, Spanish, Portuguese (Portugal), Russian, Thai, Turkish, French and Persian.
Other languages are available upon request.
Software & Application
Beyond Biometrics, Beyond Connectivity

Software

TCMS V3
TCMS V3

Application

Time Attendace
Mobile & Cloud Attendance

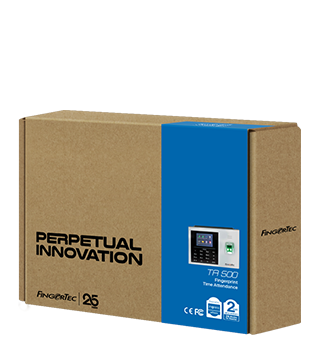

What's in the Box

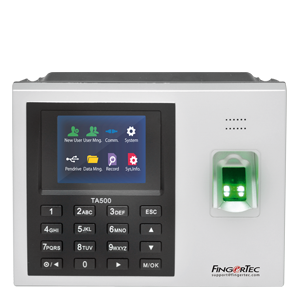

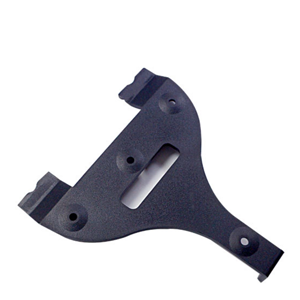

TA500 Back Plate Power Adapter

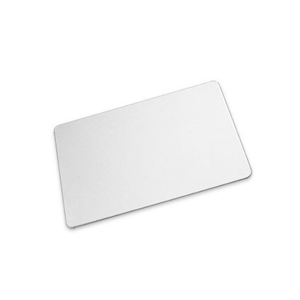

Product Card

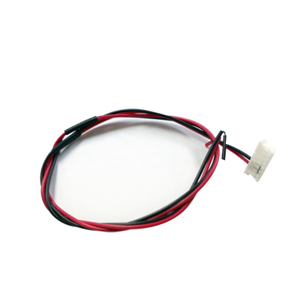

Siren Cable

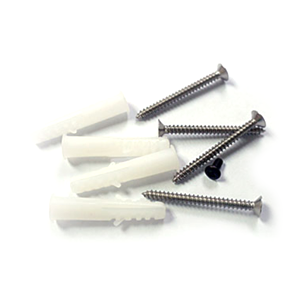

A Packet of Bolt
Product Information
Pricing: $$$
