TA100C | FingerTec

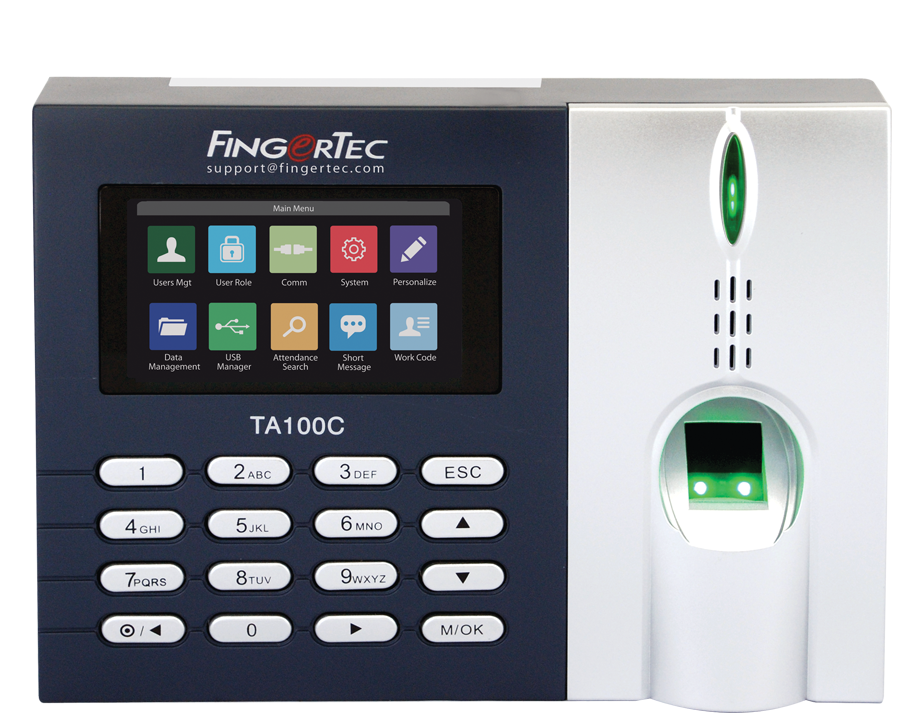

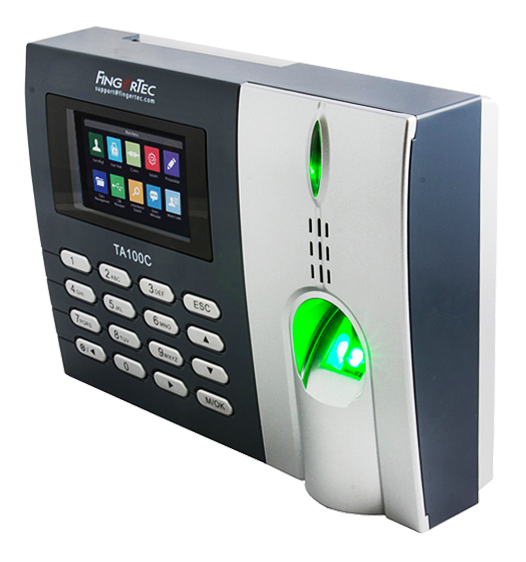

TA100C
Reliable Time Attendance System



2 YEARS LIMITED WARRANTY
Massive Storage
Fingerprints
8,000
Transactions
200,000
Various Credentials & Communication
Cater to Most Aspects
Verification
Fingerprint
Password
Card
(Made to Order)
Fingerprint Password Card


Communication
TCP/IP
USB
RS232/ RS485
(optional)
WiFi & GPRS
(optional)
TCP/IP RS485/ RS485 USB
Speed & Security, Beyond Expectation

Peace of Mind Biometric System
Fingerprint
< 0.0001% False Acceptance Rate
< 1% False Rejection Rate
< 1 sec Speed
Multiple Card Options
Employ The Card That Suits You
RFID
(TA100CR)
MiFare
(TA100CR MC)
HID
(TA100CR HID)
Eliminate Buddy Punching
Adopt Reliable Fingerprint Scanners to Stop Time Theft

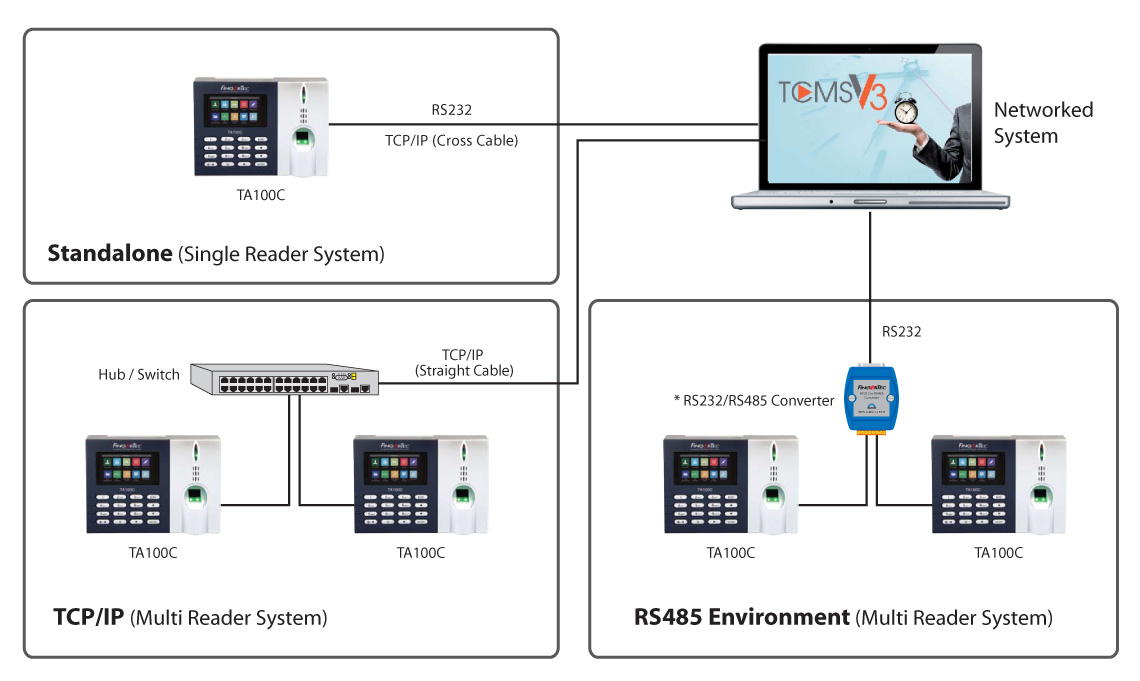

Layout Plan
For illustration only
Specification
MODEL TA100C
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non-coated optical scanner
PROCESSOR 800 MHz
MEMORY 256 MB flash memory & 128 MB SDRAM
ALGORITHM BioBridge VX 9.0 / VX 10.0
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 190 x 52 x 140
STORAGE
• Fingerprint templates 8,000
• Transaction logs 200,000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N) & password
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz Yes
• MIFARE: MFIS50/S70, 13.56MHz Made to order
• HID: HID 1326, 26-bit, 125kHz Made to order
COMMUNICATIONS
• Method TCP/IP, USB disk (Optional: RS232, RS485,WiFi & GPRS)
• Baud rates 9600, 19200, 38400, 57600, 115200
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 5V 2A
TIME ATTENDANCE
• Siren Internal and external
• Work codes Yes
MULTIMEDIA
• Voice Yes
• Display 3.0” 65k colour TFT screen
• Short messaging Yes
• Photo ID Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Indonesian, Chinese (Simplified), Cantonese / Chinese (Traditional), Thai, Vietnamese, Spanish, Portuguese (Portugal), French, Russian, German, Turkish and Persian.
Other languages are available upon request.
Software & Application
Beyond Biometrics, Beyond Connectivity

Software

TCMS V3
TCMS V3

Application

Time Attendace
Mobile & Cloud Attendance
What's in the Box

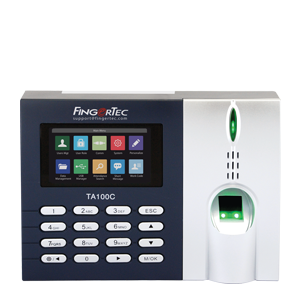

TA100C Back Plate Power Adapter

Product Card

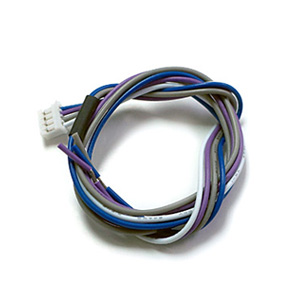

Siren Cable

A Packet of Bolt

RFID Card x 5pcs
(only for TA100CR)

MiFare Card x 1pc
(only for TA100CR MC)
Product Information
Pricing: $$$
